GPS COMPASS GNSS Board K501

Tianjin Jinfeng Surveying Instrument Co., Ltd.

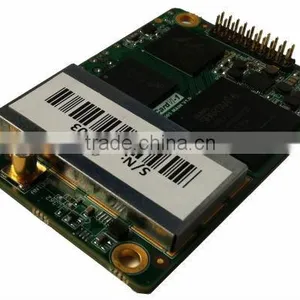

GPS COMPASS GNSS Board K501 thumbnail-1

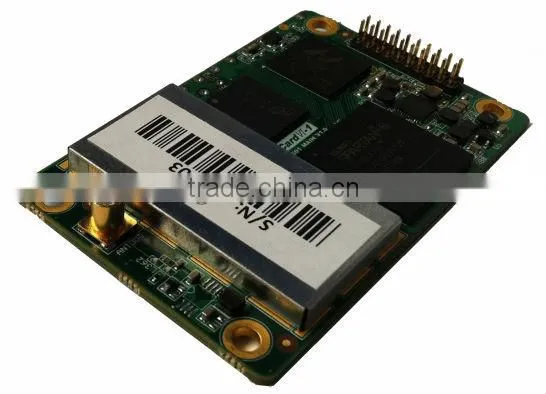

GPS COMPASS GNSS Board K501 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, GNSS OEM Board
Use:
Automotive
Place of Origin:
Tianjin, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, GNSS OEM Board
Use Automotive
Place of Origin Tianjin, China
Brand Name SunNav
Model Number K501

Specifacations of K501



DGPS GNSS Board K501
Technical SpecificationsSignal Tracking
-GPS L1 C/A code, L1/L2 P code
-BD-2 B1/B2
Performance SpecificationsPseudo Range Accuracy
-L1=10cm/L2=10cm
-B1=10cm/B2=10cm
Carrier Phase Accuracy
-L1=0.5mm/L2=1mm
-B1=0.5mm/B2=0.5mm
Time Precision: 50ns
Standalone Positioning Accuracy: <1.5m
Static Accuracy
-Horizontal: ±(2.5 +1×10-6×D)mm
-Vertical: ±(5 + 1×10-6×D)mm
RTK Accuracy
-Horizontal: ±(10+0.5×10-6×D)mm
-Vertical: ±(20+0.5×10-6×D)mm
Timing Precision:
-GPS 40ns
-BD2 50ns
-GPS+BD2 50ns
Measurement precision: 0.1m/s
Acceleration: 4g
Overload: 15g
RTK initialization
-RTK initialization time: <10s
-Reliability: > 99.9%
Signal Tracking:
-Cold start: <50s
-Warm start: <30s
-Hot start: <15s
-Signal recapture: <2s
Communications3 LV-TTL RS232 Ports
-Baud rates up to 115,200
Data Format:
-NMEA-0183 Support (can customize)
-Compass Binary self definition
-CMR/CMR+ Support
-RTCM2.3 Support
-RTCM3.0 Support
Positioning data update rate
-1 Hz, 5 Hz & 10 Hz (depends on installed option)
Raw data update rate
-1 Hz, 5 Hz, 10 Hz & 20 Hz
Height: no limit
Speed: no limit
Physical CharacteristicsSize: 46 mm x 71 mm x 13mm
I/O interface: 20-pin Double male header
Weight: 26g
Environmental CharacteristicsOperating: -40°C to +85°C
Storage: -55°C to +95°C
Humidity: 95% no condensation
ElectricalMemory: 200MB
Input Voltage: +3.3V~+6V DC
Power consuming: 1.0 W
Radio Frequency InterfaceAntenna interface: MCX
Output Power: +3.3~+6V DC
Output current: <100mA
OEM Board K501 (The World first and smallest size GPS+BeiDdou high accuracy RTK GNSS Module)
1.By using the GPS+BeiDou dual system high dynamic processing engine, the positioning accuracy could reach centi-meter
2.The hardware size, interface, data command is capable with other main board
3.K501 could be used on high accuracy land surveying (RTK or Handheld RTK), deformation monitoring system, machine control, integrated system, exploration, high precision agriculture, marine, ports, meteorological, defense, university and institute, high accuracy differential positioning and time service





DGPS GNSS Board K501
