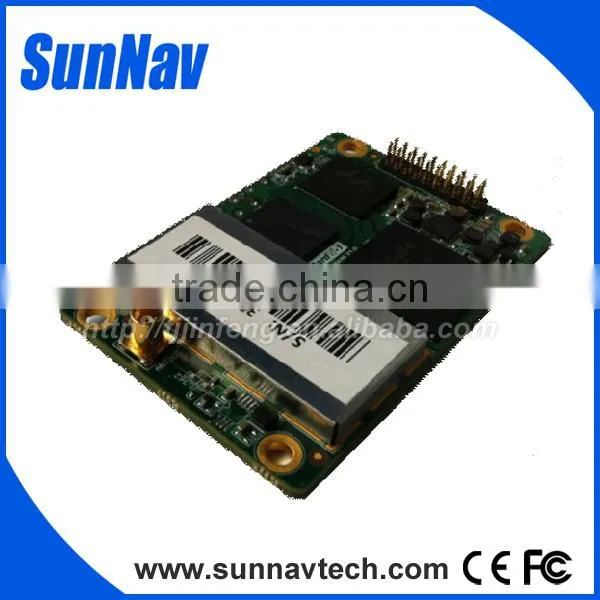

K100G Gnss Board GPS L1 L2 Glonass L1 L2 GNSS Mother Board

  K100G gnss Board GPS L1 L2  Glonass L1 L2 GNSS mother board

K100g  gnss Board GPS L1 L2  Glonass L1 L2 GNSS mother board

 1.Signal Tracking

120 channels
-GPS: L1 C/A code, L1/L2 P code
-GLONASS: L1, L2
-SBAS: WAAS, EGNOS, MSAS
-Cold start: <50s
-Warm start: <30s
-Hot start: <15s
-Signal reacquisition: <2s

2.Positioning Specifications

Pseudo Range Accuracy
-GPS: L1=10cm/L2=10cm
-GLONASS L1=10cm/L2=10cm
Carrier Phase Accuracy
-GPS: L1=0.5mm/L2=1mm
-GLONASS L1=1mm/L2=1mm
Standalone Positioning Accuracy: <1.5m
Real Time Kinematics (RTK)
-Horizontal: 10 mm + 1 ppm RMS
-Vertical: 20 mm + 1 ppm RMS
-Initialization time: typically < 10s
-Initialization reliability: typically > 99.9%
 Post Processing Static
-Horizontal: 2.5mm + 1ppm RMS
-Vertical: 5mm + 1ppm RMS
Velocity Accuracy: 0.03m/

Acceleration: 4g
Overload: 15g

3.Communications

3 LV-TTL RS232 Ports
-Baud rates up to 921,600 bps
Positioning data output: 1 Hz, 5 Hz & 10 Hz positioning outputs (depends on installed option)
Raw data output: 1 Hz, 5 Hz, 10Hz & 20 Hz
Pulse Per Second Output
3 LED Indicating light (indicating Power, Satellite Tracking and Differential Data)

 4.Data Format

Correction data I/O: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, CMR (GPS only), CMR+(GPS only)

Position data output
-ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA,GSA, ZDA, VTG, GST, PJK, PTNL
-Extended NMEA-0183 BDGGA, GPNTR, GPCDT, GPHPR
-Binary (compatible with major brands)
-Velocity: No limit
-Attitude: No limit

 5.Physical

Size (L×W×H): 71mm × 46 mm × 13mm
I/O interface: 20-pin Double male header
Weight: 26g
Antenna: 1×MCX receptacle (10MHz)
