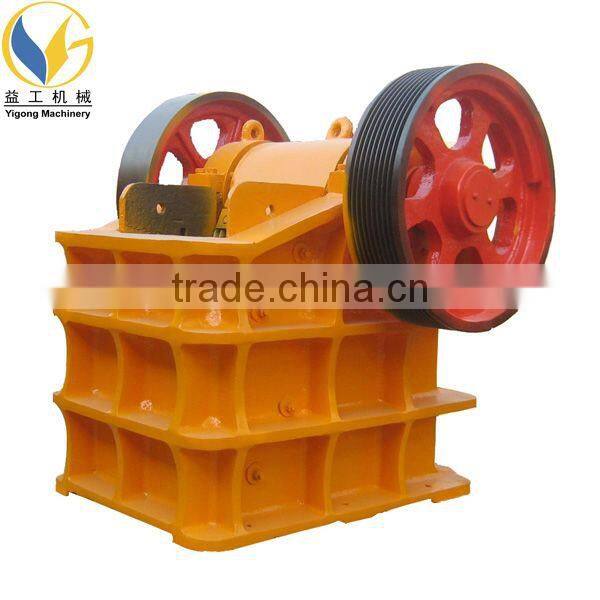

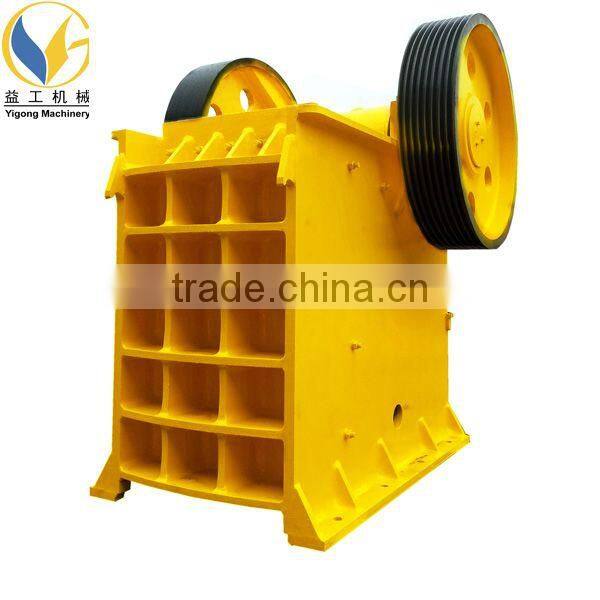

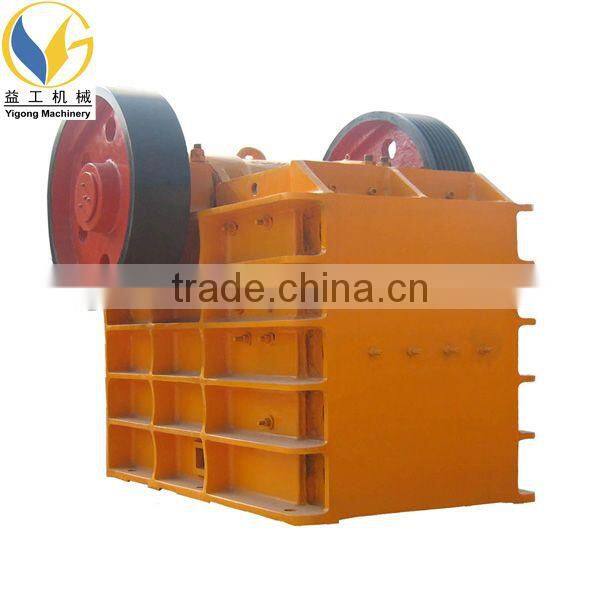

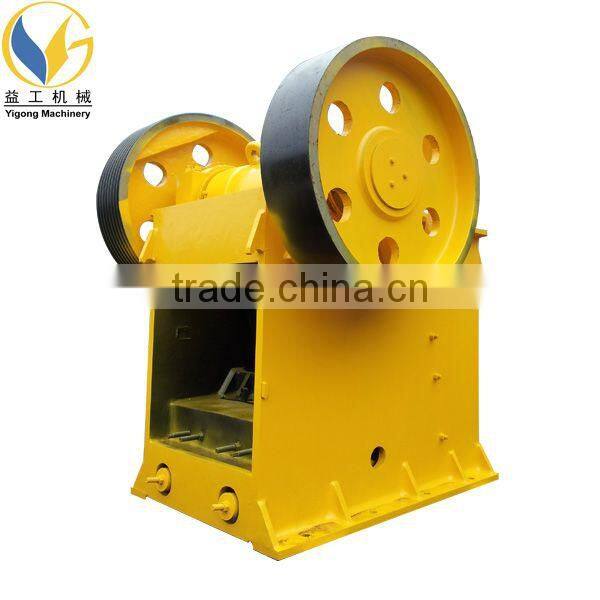

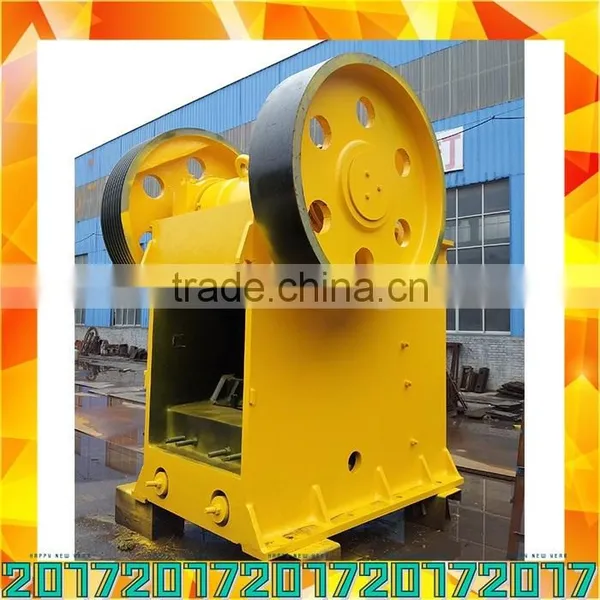

pe 400x600 Jaw Crusher From YIGONG Machinery With Best Price
pe 400x600 jaw crusher from YIGONG machinery with best price
Want to buy qualified jaw crusher for sale?
Try Yigong Patent jaw crusher for sale!!
We have various types of jaw crushers, in order to give you a responsible quotation; you can inform us the following information:
1. The materials you want to crush
2. The capacity t/h you want
3. The input size and output size of the material.
Our engineers will design the most suitable production chain drawing special for you!
Introduction:
1) Our jaw crusher imitates animals' jaw movement to complete stones crushing which applied widely in medium-level granularity crushing of various ores and chuck of materials in the mine industry.
2) The highest compressive strength of stone crushing is 320Mpa and jaw crusher is the most widely used crushing equipment at present.
3) We use the superior manganese steel casting to make the main part, especially the perishable parts. Combining with advanced technology, results from test base and feedback from our clients, our company unremittingly innovates and improves jaw crusher on the basis of many years' professional experiences to make performance of our products superior to others.
Advantages pe 400x600 jaw crusher from YIGONG machinery with best price :
- High crushing ratio and uniform grain size, simple structure but reliable performance, easy maintenance and economical operation.
- It sets a deep cavity and no death zone which improve the capacity of input.
- Spacer dumping-mouth adjusting device which is reliable and convenient, what's more, it has wide adjusting range which increases the flexibility of equipment.
- It owns safe and reliable lubricating system, and it is easy to change parts, moreover, it features as small amount of working for machine attention.
- Simple and reasonable structure, reliable function and low operating cost
- More energy conservation: stand-alone can save energy by 15%-30% and system's energy conservation can be more than twice.
- Big adjusting rang of output which can satisfy various users' demands.
- Low noise and little dust.

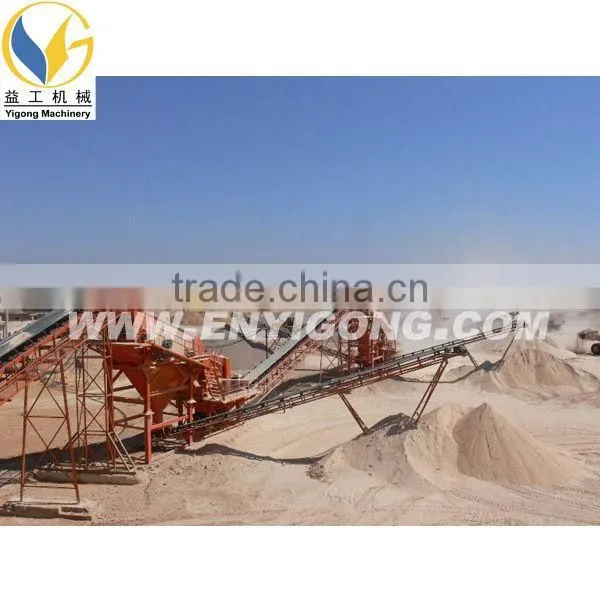

Project case:
Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad.
We have established cooperation relationship with many universities to update technology and meet various needs from our customers.
Main parameters pe 400x600 jaw crusher from YIGONG machinery with best price :
| Types | Feeding size(mm) | Max feeding size(mm) | Output size(mm) | Capacity(t/h) | Motor power(kw) | Theoretical weight(t) | Dimension (mm) |
|---|---|---|---|---|---|---|---|
| PE-250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 3 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 75 | 12 | 1980×2080×1870 |
| PE-600×900 | 600×900 | 520 | 60-150 | 50-150 | 75 | 17 | 2290×2206×2370 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 50-180 | 90-110 | 29 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110-132 | 58 | 3380×2870×3330 |
| PE1000×1200 | 1000×1200 | 850 | 200-300 | 280-560 | 110-160 | 69 | 5350×4280×3050 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 | 4200×3300×3500 |
| PE1500×1800 | 1500×1800 | 1200 | 210-360 | 520-1100 | 280 | 132 | 7460×6235×4249 |
| PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 1.5 | 896×745×935 |
| PEX150×750 | 150×750 | 125 | 18-48 | 5-16 | 15 | 3.8 | 1200×1500×1200 |
| PEX250×750 | 250×750 | 210 | 25-60 | 15-30 | 22 | 5 | 1667×1545×1020 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37 | 7 | 2140×1660×1500 |
| PEX-250×1300 | 250×1300 | 250 | 20-90 | 16-105 | 55 | 8.5 | 2720×1950×1600 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 30-90 | 55 | 11.5 | 1750×2320×1724 |
Notes: The Price and other parameters is just for reference, the real data depend on the authentic products.
pe 400x600 jaw crusher from YIGONG machinery with best price About us
1) Henan Yigong Machinery&Equipment is the leading manufacturer of hammer crusher,jaw crusher,impact crusher,
drilling,vibrating screen,vibrating feeder , sand making and washing machine, belt conveyor etc. mining equipments.
2) Our company has passed ISO quality certification,CE, quality system certificate and are also AAA grade reputable enterprise,
Top 10 Famous Brand of Chinese Crushing Machine, Sandstone Association Mmbership Unit, and Enterprise of Taking the Contract First and Laying Stress on the Prestige etc.
3) Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad.
We have established cooperation relationship with many universities to update technology and meet various needs from our customers.
pe 400x600 jaw crusher from YIGONG machinery with best price
