Long Life Time Stone Small Crusher 3-5Ton for Africa

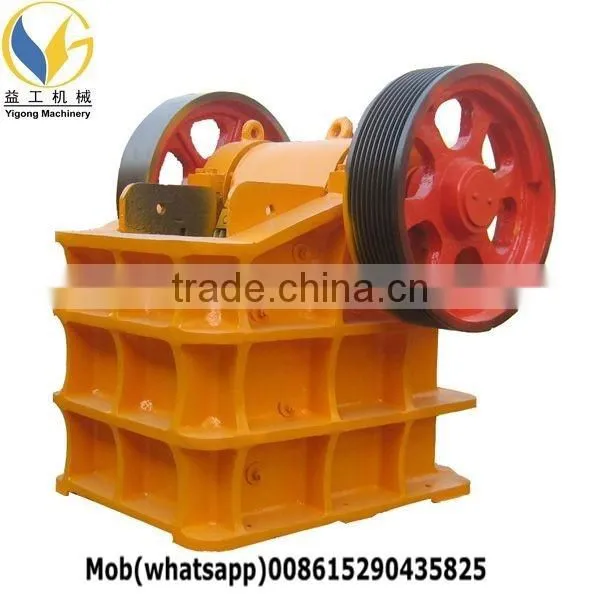

Long Life Time Stone Small Crusher 3-5Ton for Africa photo-1

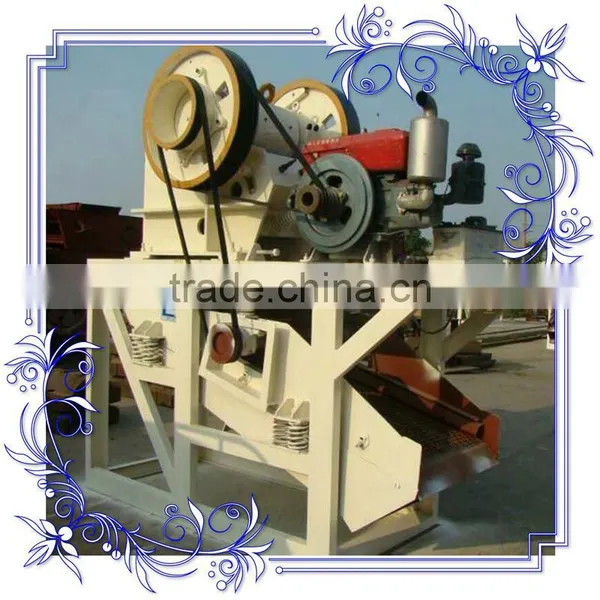

Long Life Time Stone Small Crusher 3-5Ton for Africa photo-2

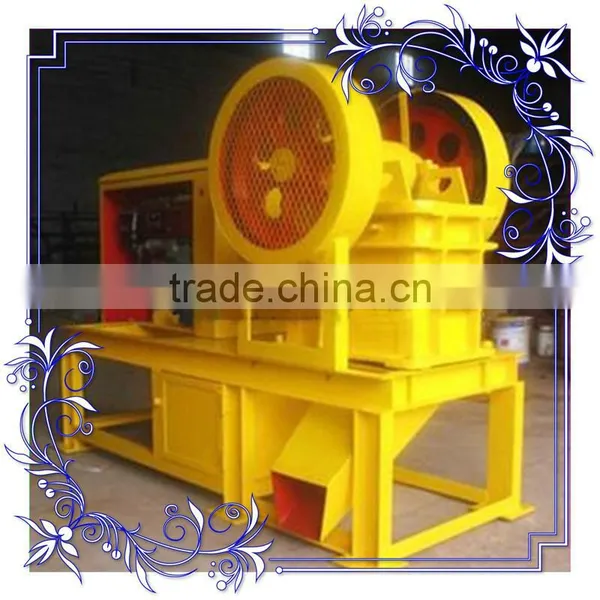

Long Life Time Stone Small Crusher 3-5Ton for Africa photo-3

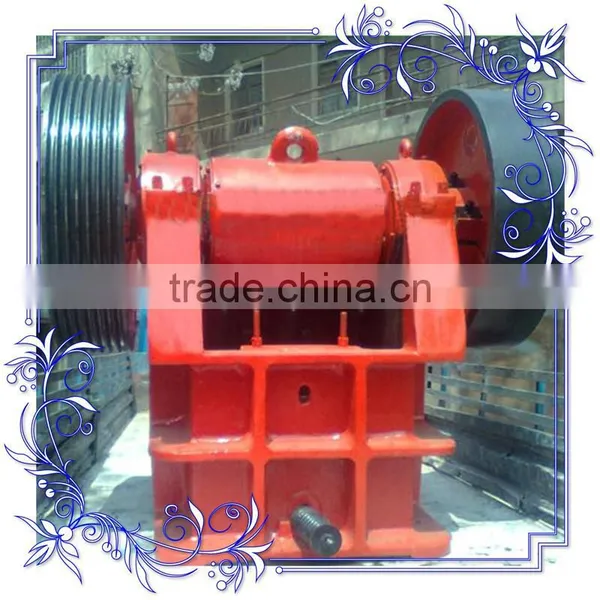

Long Life Time Stone Small Crusher 3-5Ton for Africa photo-4

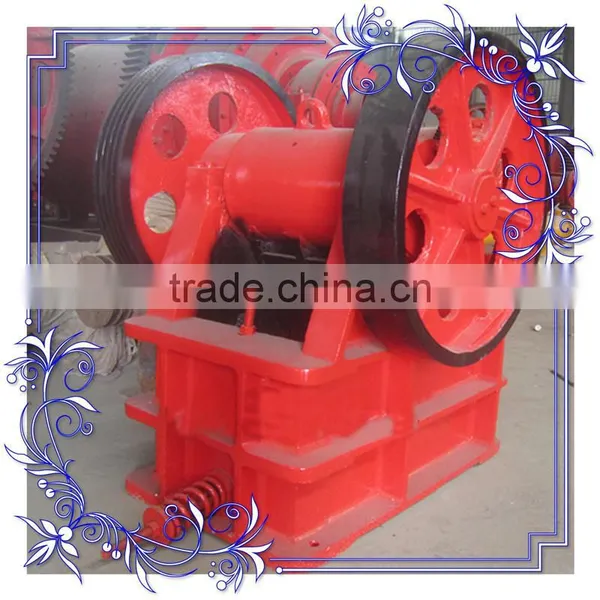

Long Life Time Stone Small Crusher 3-5Ton for Africa photo-5

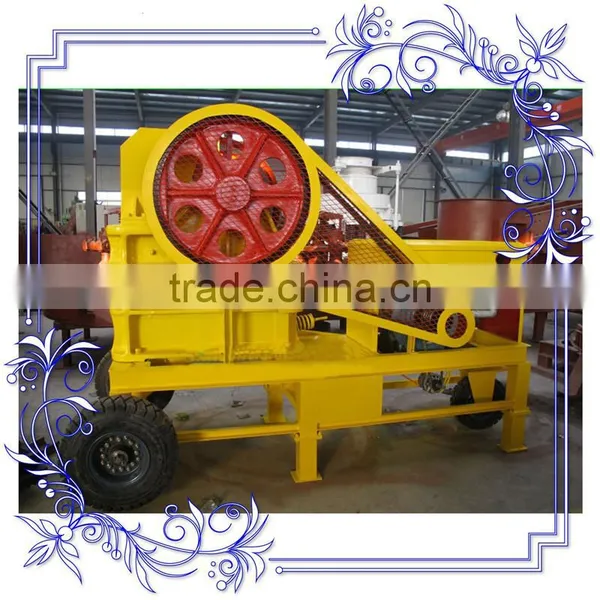

Long Life Time Stone Small Crusher 3-5Ton for Africa photo-6
US$ 1,000 - 420,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
Jaw Crusher,jaw crusher for sale
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Jaw Crusher
Application Jaw Crusher,jaw crusher for sale
Motor Type AC Motor
Power(W) 5-260
Capacity(t/h) 1-200
Place of Origin Henan, China
Brand Name YIGONG
Model Number PE PEX series
Dimension(L*W*H) 1300x1090x1270mm
Weight 0.5-50T
Certification ISO 9001:2008, TUV,ISO 9001:2008 BV
Warranty 12months(excluding wearing parts),12 months
After-sales Service Provided Engineers available to service machinery overseas

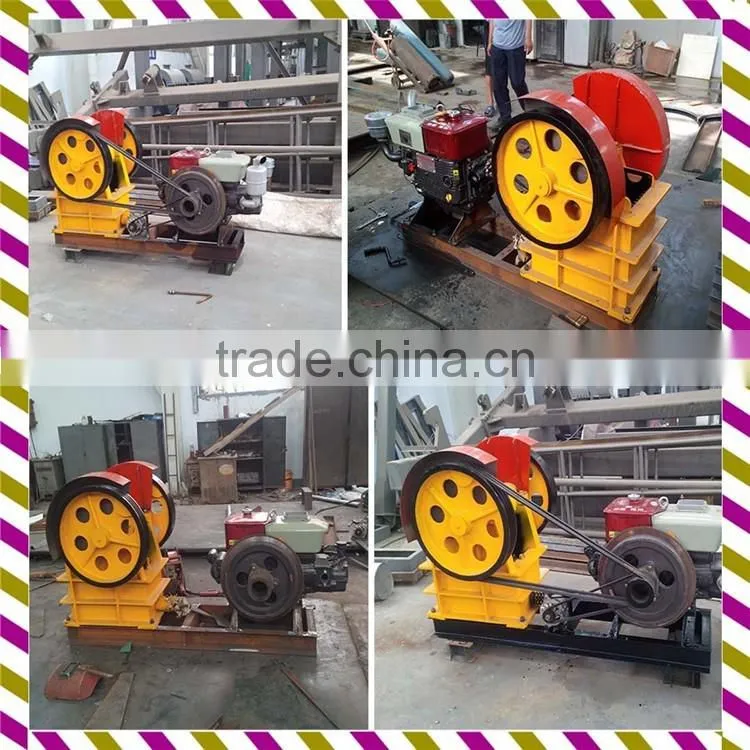

  long life time stone small crusher 3-5Ton for Africa

long life time stone small crusher 3-5Ton for Africa

long life time stone small crusher 3-5Ton for AfricaWant to buy qualified jaw crusher for sale?



Try Yigong Patent jaw crusher for sale!!



We have various types of jaw crushers, in order to give you a responsible quotation; you can inform us the following information:



1. The materials you want to crush

2. The capacity t/h you want

3. The input size and output size of the material.



Our engineers will design the most suitable production chain drawing special for you!

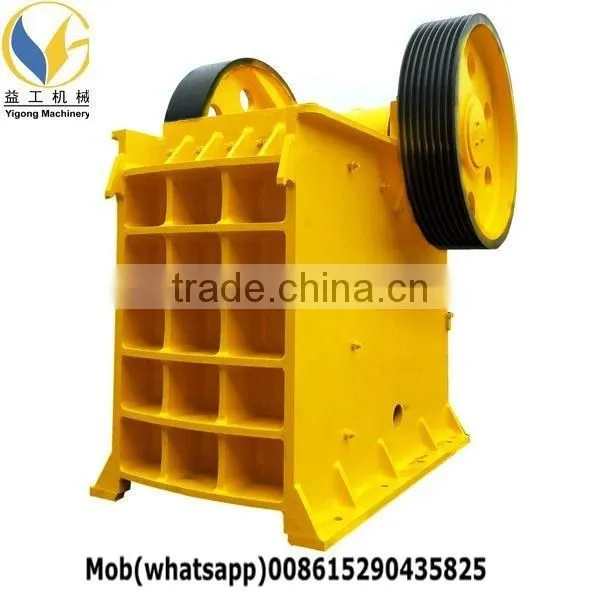

 long life time stone small crusher 3-5Ton for Africa





Introduction:



1)  Our jaw crusher imitates animals' jaw movement to complete stones crushing which applied widely in medium-level granularity crushing of various ores and chuck of materials in the mine industry.



2)  The highest compressive strength of stone crushing is 320Mpa and jaw crusher is the most widely used crushing equipment at present.



3)  We use the superior manganese steel casting to make the main part, especially the perishable parts. Combining with advanced technology, results from test base and feedback from our clients, our company unremittingly innovates and improves jaw crusher on the basis of many years' professional experiences to make performance of our products superior to others.

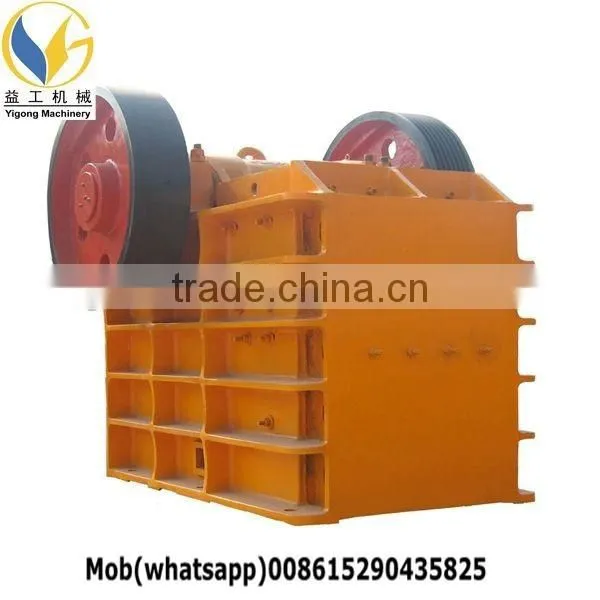

 long life time stone small crusher 3-5Ton for Africa



Advantages ceramic jaw crusher from YIGONG machinery with best price :

  1. High crushing ratio and uniform grain size, simple structure but reliable performance, easy maintenance and economical operation.
  2. It sets a deep cavity and no death zone which improve the capacity of input.
  3. Spacer dumping-mouth adjusting device which is reliable and convenient, what's more, it has wide adjusting range which increases the flexibility of equipment.
  4. It owns safe and reliable lubricating system, and it is easy to change parts, moreover, it features as small amount of working for machine attention.
  5. Simple and reasonable structure, reliable function and low operating cost
  6. More energy conservation: stand-alone can save energy by 15%-30% and system's energy conservation can be more than twice.
  7. Big adjusting rang of output which can satisfy various users' demands.
  8. Low noise and little dust.

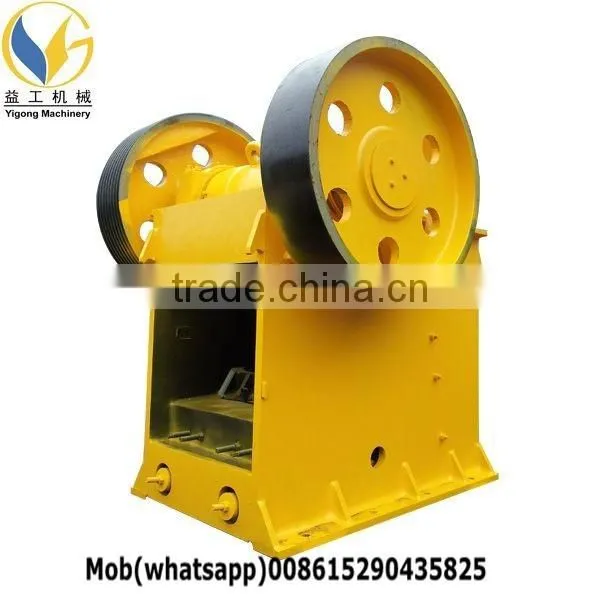

 long life time stone small crusher 3-5Ton for Africa









Main parameters of jaw crusher from YIGONG machinery with best price :



TypesFeeding size(mm)

Max feeding

size(mm)

Output size(mm)Capacity(t/h)Motor power(kw)Theoretical weight(t)

Dimension

(mm)

PE-250×400250×40020020-505-201531300×1090×1270
PE-400×600400×60034040-10016-603071730×1730×1630
PE-500×750500×75042550-10040-11075121980×2080×1870
PE-600×900600×90052060-15050-15075172290×2206×2370
PE-750×1060750×106063080-14050-18090-110292660×2430×2800
PE-900×1200900×120075095-165220-450110-132583380×2870×3330
PE1000×12001000×1200850200-300280-560110-160695350×4280×3050
PE-1200×15001200×15001020150-300400-800160100.94200×3300×3500
PE1500×18001500×18001200210-360520-11002801327460×6235×4249
PEX150×250150×25012510-401-35.51.5896×745×935
PEX150×750150×75012518-485-16153.81200×1500×1200
PEX250×750250×75021025-6015-302251667×1545×1020
PEX-250×1200250×120021025-6020-603772140×1660×1500
PEX-250×1300250×130025020-9016-105558.52720×1950×1600
PEX300×1300300×130025020-9030-905511.51750×2320×1724

Notes: The Price and other parameters is just for reference, the real data depend on the authentic products.



Project case:



Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad.

We have established cooperation relationship with many universities to update technology and meet various needs from our customers.
