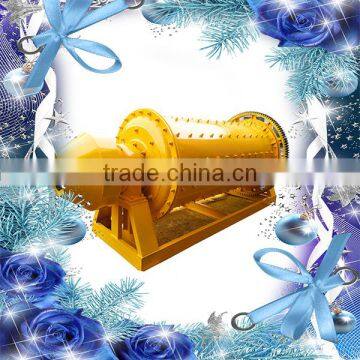

Energy Saving Iron Copper Gold Mining Ore Fine Crushing Grinding Ball Mill

normal,small parts in carton.



Energy Saving Iron Copper Gold Mining Ore Fine Crushing Grinding Ball Mill





Product Introduction

The EnergySaving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, corhart, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc.

It is used for grinding various ore and other grindable materials dry or wet.







Structure of Energy saving paint ball mill from YIGONG machinery

Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on.



The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance.



Working Principle of Energy saving paint ball mill from YIGONG machinery

 The ball mill is a horizontal rotating device transmitted by the outer gear.

 The materials are transferred to the grinding chamber through the quill shaft uniformly.

 There are ladder liner and ripple liner and different specifications of steel balls in the chamber.

 The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Ball Mill Technical Data

Advantages:

1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

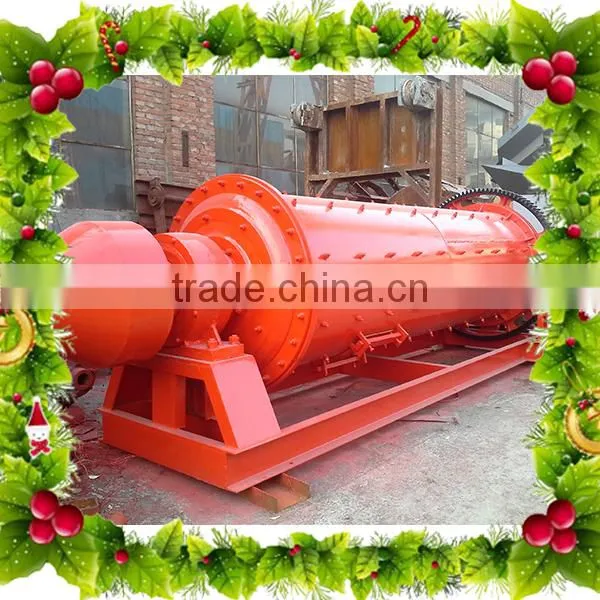

Pictures of Energy saving paint ball mill from YIGONG machinery

Packaging and shipping

company introduction

HENAN YIGONG MACHINERY&EQUIPMENT CO.,LTD. is a modern enterprise engaged in new building-material equipment, metallurge and mineral processing equipment, and it integrates research, development, production, with sales together. The company is located in Zhengzhou city-the transportation junction of China, and was founded in 1978. After 30-year development and evolvement, now the company owns 3 branch companies and 1 machinery research institute. Its land coverage is 50,000O square meters, of which the modern buildings occupy 15,000 square meters. It adopts the modern and scientific management mode, and constantly strives to explore and create novelty products.

The main products of the company consist of five series, i.e.aerated concrete equipment, lime-sand brick and autoclavedash brick equipment, sandstone making equipment, metallurgy and mineral processing equipment, and various crushers,which can be divided into 30-odd kinds and 100-odd types. These equipment are widely used in the building-material, metallurgy, corhart, and ceramic industries, etc.
