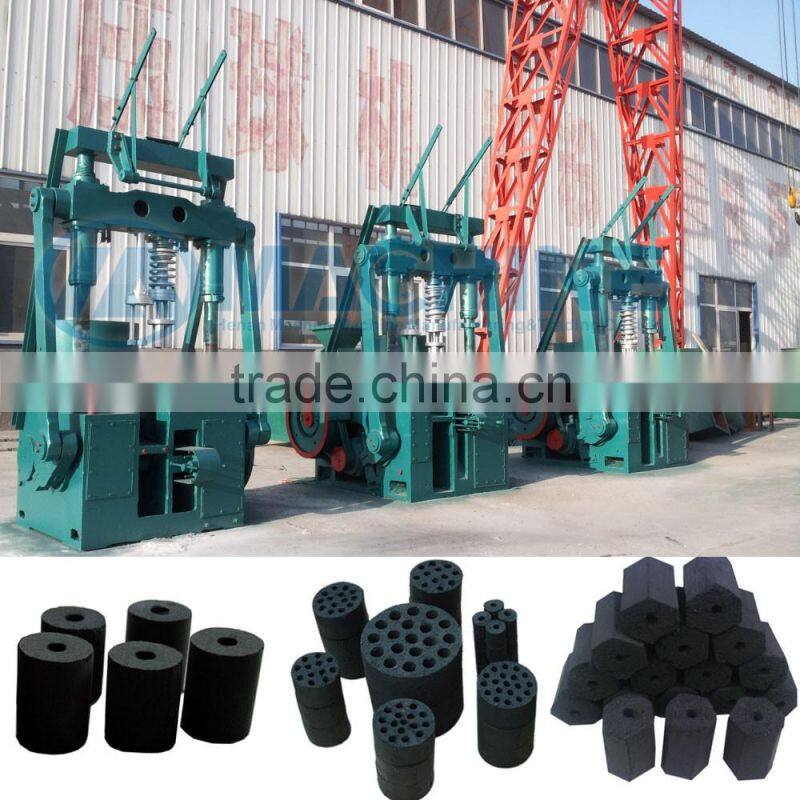

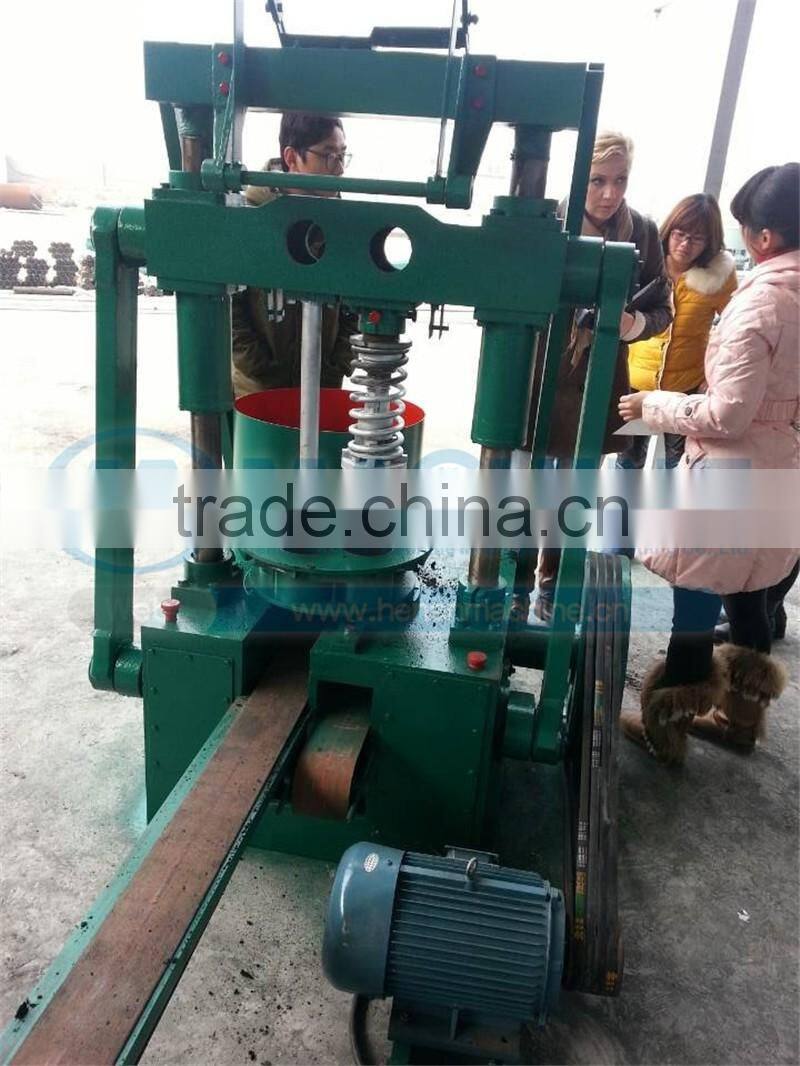

New technology CE charcoal briquette making machine on sale in India
1. Brief introduction charcoal briquette making machine
Hot sales honeycomb briquette machine (usually known as briquettes, through out a plurality of holes in a cylindrical cake coal) is the major production equipment in China urban briquette production plant. It adds coal powder into mold tube on the turntable
and press into briquettes through punching.
It is applied widely in cement, chemical, electric power, metallurgy, building materials,
refractory and other industrial sectors to crush medium hardness materials, such as limestone, slag, coke, coal and other materials.
It includes the body, turning, feeding, stamping and conveying five parts.
2. Features of charcoal briquette making machine
High profit and low cost in raw material.
Increase the net calorific value per unit volume after briquetting.
Energy saving, Environment-friendly, Low-consumption.
No chemical additives, no smell, no smoke.
Easy to transport and store as densities product.
3.Advantages of charcoal briquette making machine
Selling at the factory price. As we are a manufacturer, we sell the machines to our customers directly, reducing the sales channels. We give the customers much more
benefits!
High quality. We are charging the quality from the very beginning we buy the material to the end the machines are sent to your home.We put every detail into consideration
to conform you a high quality products!
Perfect sales services and after-sales services. We will appoint our technicians to you in helping you installing and debugging the machine till it can work well.
Mature selling modes. Our company has more than 10-year experience on producing and selling mining machinery in China.
Using the wearable materials. As we use the latest wearable material to make the machine, make sure the machine has enough tenacity and hardness to make it work
well.
4. Detailed specifications
Model | MA140 | MA160 | MA180 | MA220 | MA260 |
Capacity(Punching times per Minute) | 45-50 | 45-50 | 45-50 | 20-24 | 20-24 |
Power(kw) | 7.5 kw; 4pole | 7.5 kw; 4pole | 11 kw; 4pole | 15 kw; 4pole | 15 kw; 4pole |
Presssure(tons) | 20-30 tons | 20-35 tons | 25-35 tons | 30-40 tons | 35-45 tons |
Mode of Operation | Punching press | Punching press | Punching press | Punching press | Punching press |
Diameter Of Mould(mm) | 140 mm | 160 mm | 180 mm | 220 mm | 260 mm |
Diameter of Final Products(mm) | Round:below140mm Square:100*100mm | Round:below160mm Square:120*120mm | Round:below180mm Square:150*150mm | Round:below220mm Square:200*200mm | Round:below260mm Square:220*220mm |
Height of Final Products(mm) | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted |
Shape of final briquettes | Round/square/hexagon/other shape with holes or without holes by customizing the related molds. | ||||
Materials Conditions | Size: Less Than 5 MM ; Moisture: less Than 10% | ||||

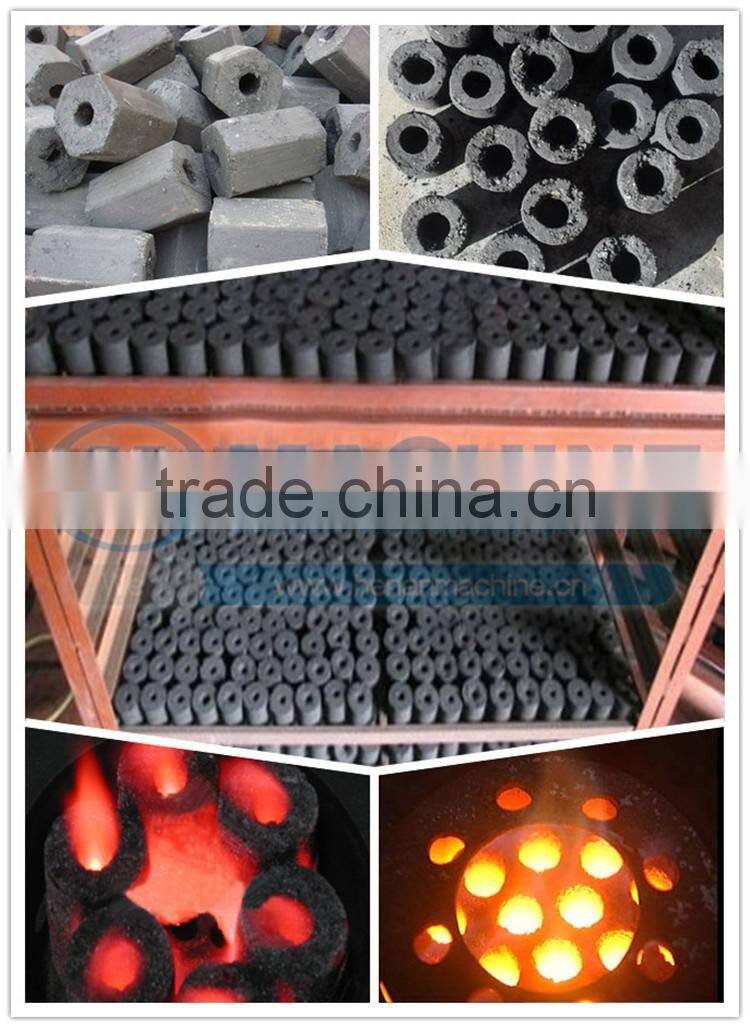

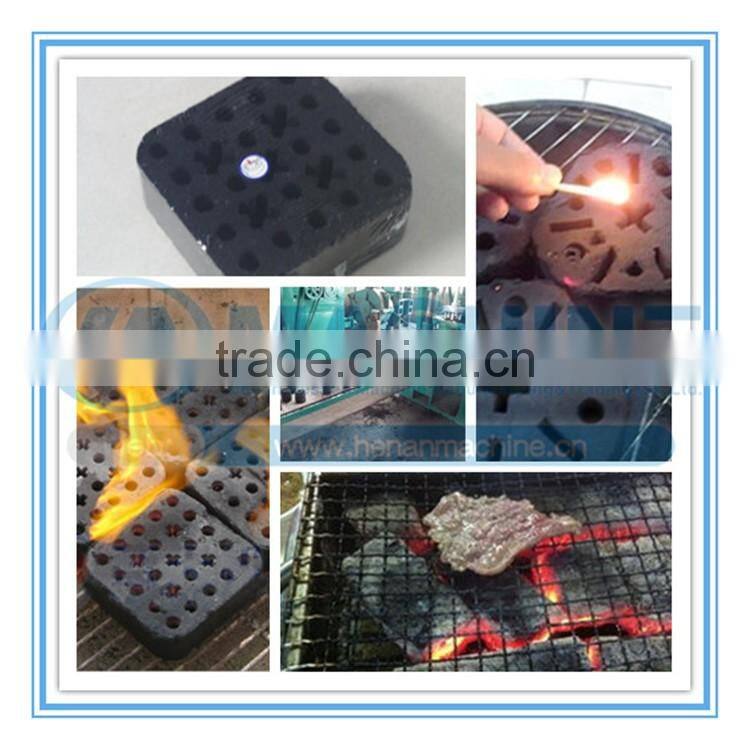

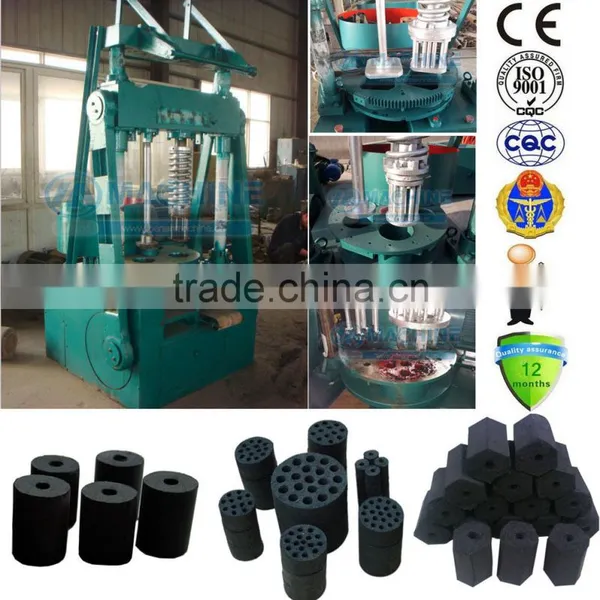

5.Finished products
After the processing of drying, compressing under the high pressure and temperature, the biomass briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood. This bio-fuel briquette is 40-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder with a 15-20mm hole through the body.

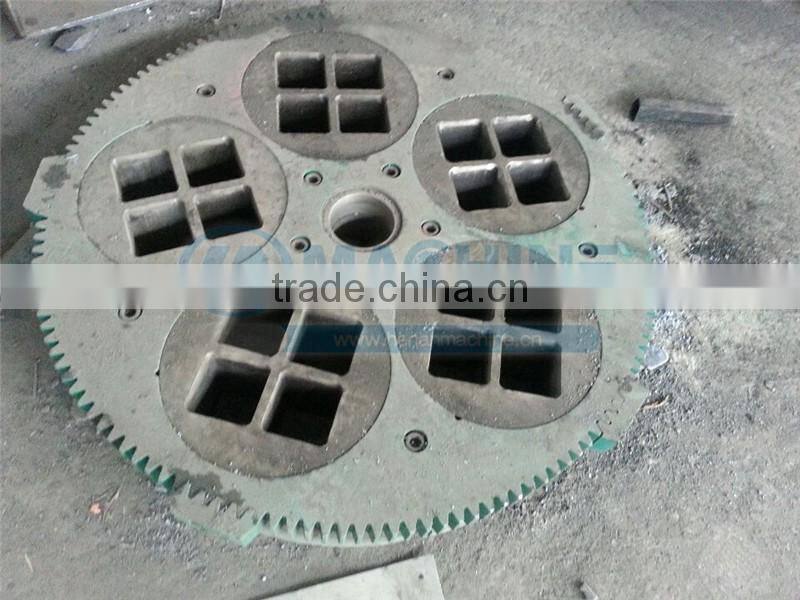

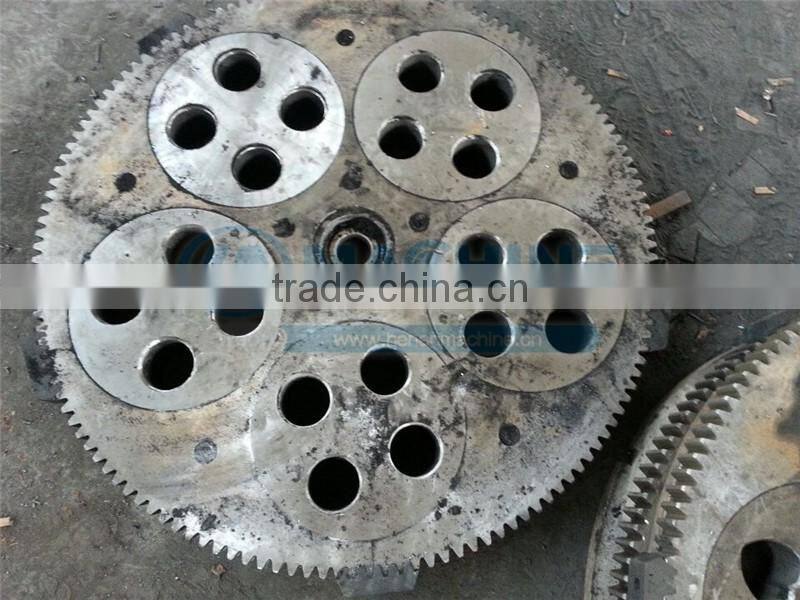

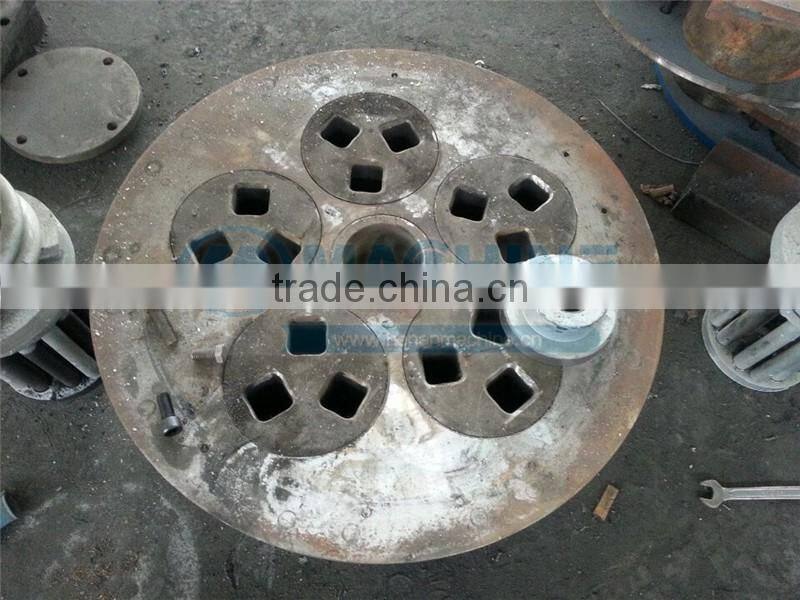

6.The different molds
7.The structure and operation principle
This machine structure is simple, includes the body, drive, feeding, punching, and conveying, etc, five parts.
1. Body parts: consits of platen, engine base, forming the skeleton entity.
2. Driving parts: consists of motor, belt pulley, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through tow gears pass to axis, and then by a pair of bevel gear and the axis of rotation to drive the dial, and then pass to the four panel movement.
3. Feeding parts: consists of spindle, hopper, agitator, it will strike by axial gear mixer, beaten coal and load mode barrel.
4. The punching parts: it is meanly consists of four slide, sliding beam, punch, punch holder, punch pin, activity pressure plate, end of activity mode, spring, etc. When the machine driven by two gears, through the pull rod drives the sliding beam, make the punch down, activities set up, the spring become tight, press the coal powder into coal briquettes, and punch the coal briquettes onto the conveyor, for conveying out, the density of coal briquettes, is decided by the spring to tightly press activity plate.
5. Conveying parts: consists of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation the shaped coal briquettes out off the body, the adjustable screw on the conveyor rack can adjust the tightness.

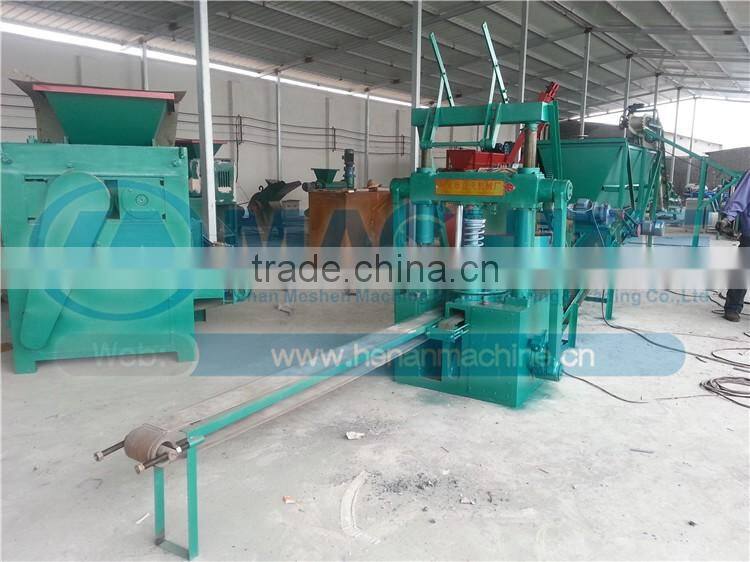

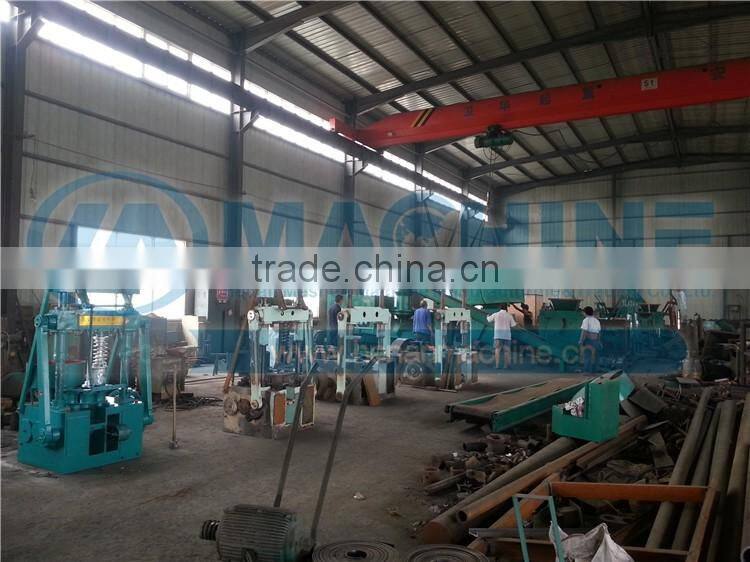

8.Workshop show
9.Delivering and Packaging of charcoal briquette machine
1.Our single charcoal honeycomb briquette machine will be packed in the wooden case with frame and steel base, which is fixed for shipping.
2. If the machines are lot, we will load them in the containers, like the pictures show. And the standard container is 20GP, 40GP, 40HQ.
3. We also can package and shipping the machines as your requirements.
10.Our customers
Our Services
We can offer special design services as per customers' requirements and produce different machines to meet different
customers needs.
Contact information
If you want more information ,pls send me e-mail or contact as below:
Please pay attention: Our best products, best prices and best after-sales service in all Industry competitors is your best choice!
