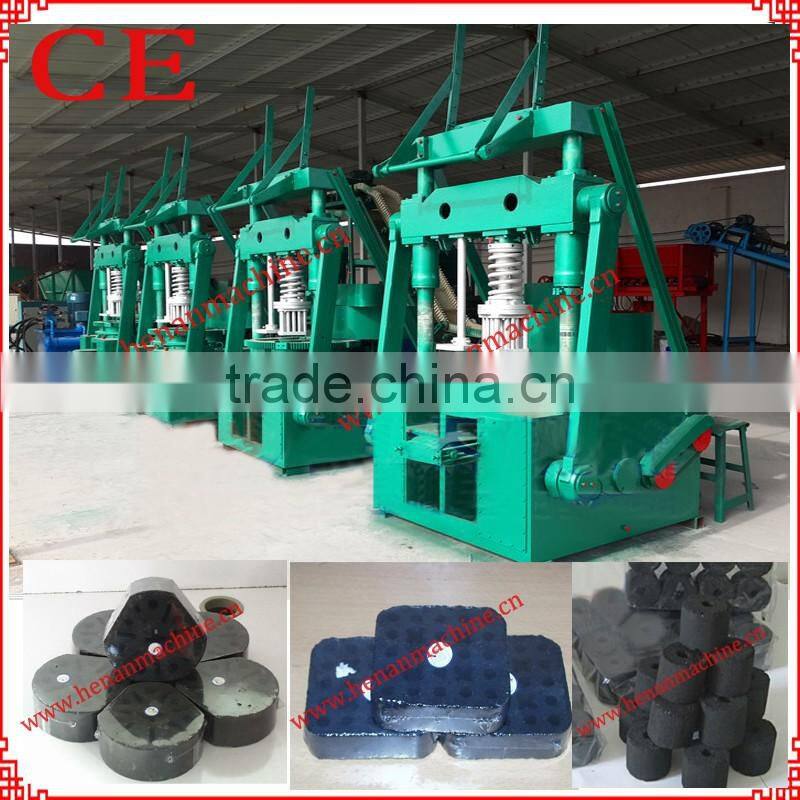

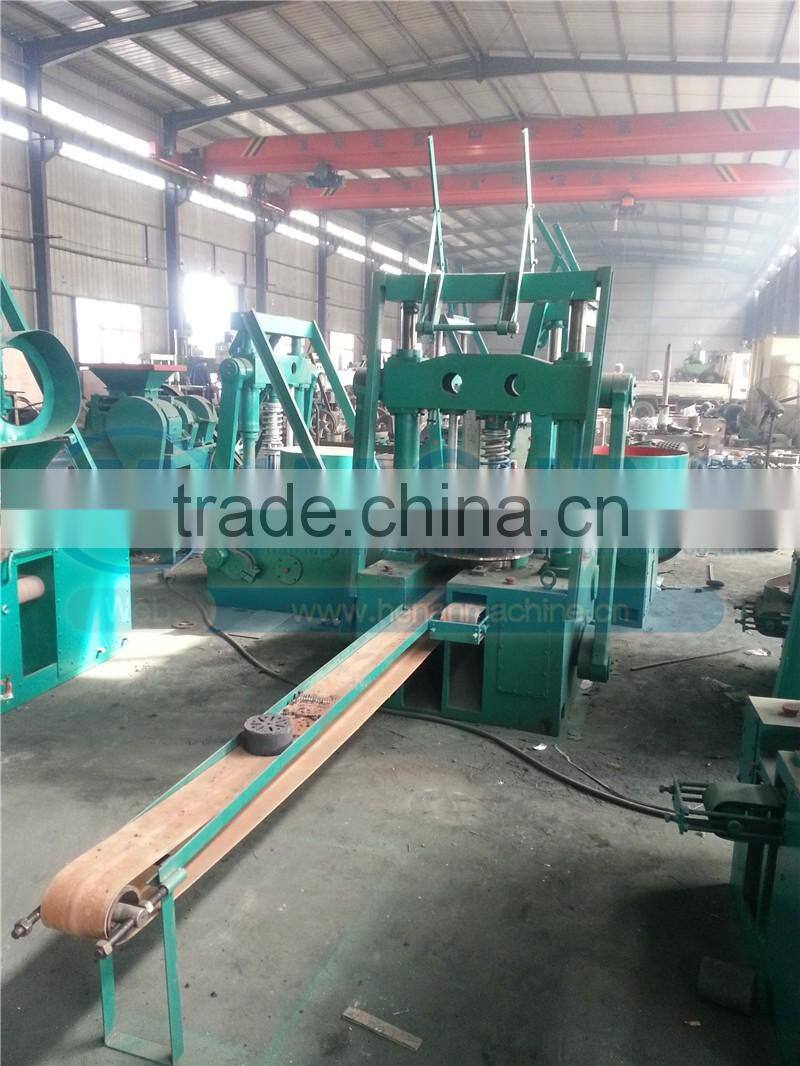

Large Capacity and Stable Performance Coke briquettes making machine
Brief introduction of Coke briquettes making machine
Coke briquettes making machine (also known as coke powder briquette machine), is charcoal processing machinery. It is used to punch above fine powder (coal fine, charcoal fine, carbon fine, carbon black fine, coking coal powder, brown coal powder, etc.) into various bigger sizes briquettes. The coke coal briquette machine can make charcoal/coal or coke powder into briquettes with different shapes. The final products for BBQ, heating, boiler, military industry, smelting, purification, agriculture, crafts, cigarettes, animal husbandry, printing and dyeing, chemical industry, medicine, and so on.
Characteristics of coke briquettes making machine
1. Raw material: any kind of coal and charcoal fine, coke fine, carbon fine, etc.
2. Each coke powder briquette machine can be equipped with many moulds by customizing the related shapes
3. With our self researched formula, the briquette is smokeless, high density and easy to be ignited.
4. Steady work, no vibration.
5. Easy to transport and store as densities product
6. Factory direct sale with reliable price.
Technical Parameter of coke briquettes making machine
Basic technical parameters of Coal briquette machine
Model | MA140 | MA160 | MA180 | MA220 | MA260 |
Capacity(Punching times per Minute) | 45-50 | 45-50 | 45-50 | 20-24 | 20-24 |
Power(kw) | 7.5 kw; 4pole | 7.5 kw; 4pole | 11 kw; 4pole | 15 kw; 4pole | 15 kw; 4pole |
Presssure(tons) | 20-30 tons | 20-35 tons | 25-35 tons | 30-40 tons | 35-45 tons |
Mode of Operation | Punching press | Punching press | Punching press | Punching press | Punching press |
Diameter Of Mould(mm) | 140 mm | 160 mm | 180 mm | 220 mm | 260 mm |
Diameter of Final Products(mm) | Round:below140mm Square:100*100mm | Round:below160mm Square:120*120mm | Round:below180mm Square:150*150mm | Round:below220mm Square:200*200mm | Round:below260mm Square:220*220mm |
Height of Final Products(mm) | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted |
Shape of final briquettes | Round/square/hexagon/other shape with holes or without holes by customizing the related molds. | ||||
Materials Conditions | Size: Less Than 5 MM ; Moisture: less Than 10% | ||||

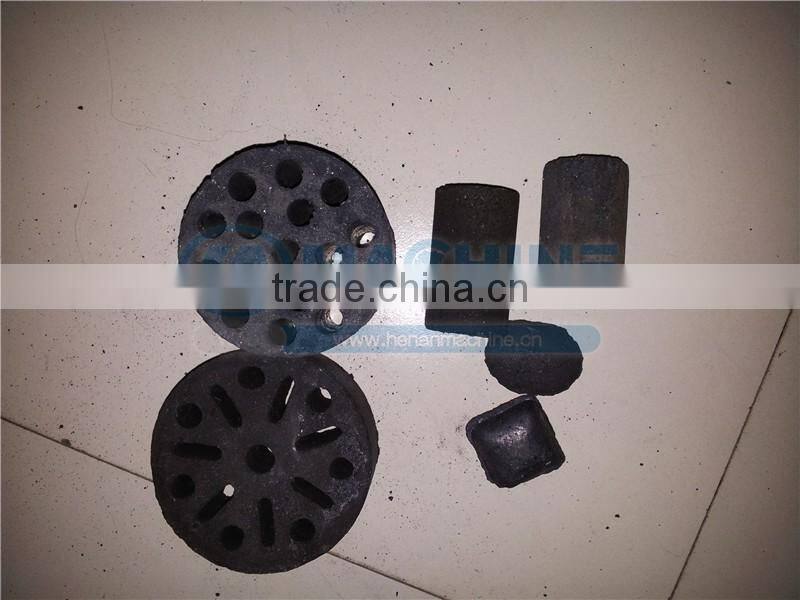

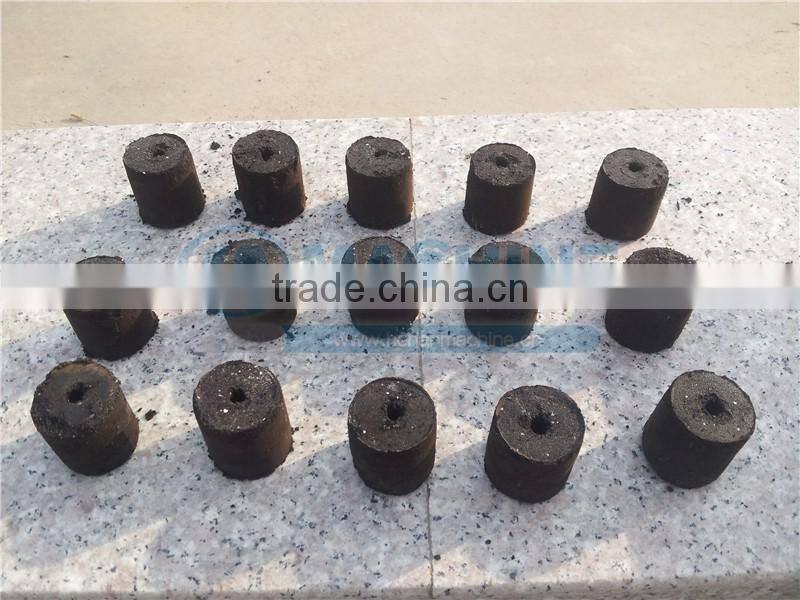

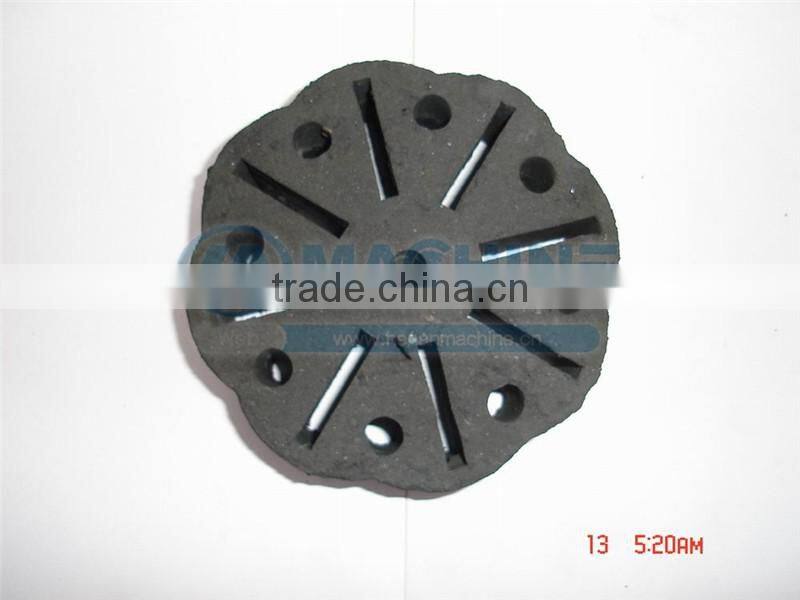

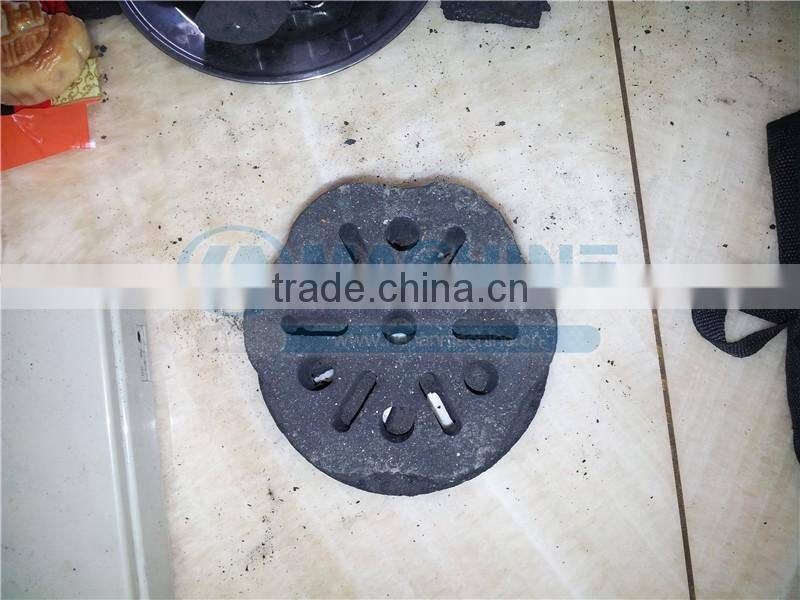

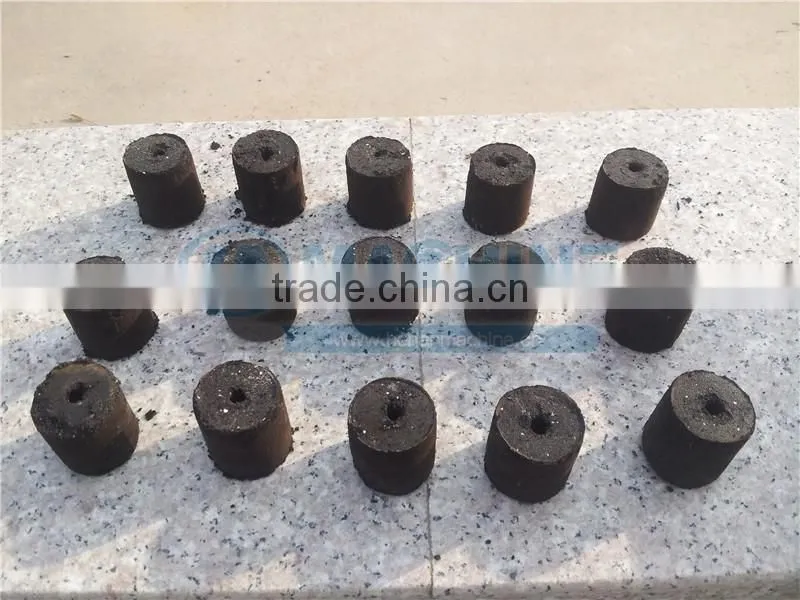

The outlet briquettes
1. Shape: The briquette machine for carbon black can press the carbon black into diversified, pillow shape, oval shape,
egg shape, ball shape, column shape, square shape and so on. And the shapes and size of the briquettes can be customized.
2. Hardness: The finished product are very hard,they are not shattered even though down from 3 meters height.
3. Transport: It is very easy and convenient to transport either short transport or long transport.

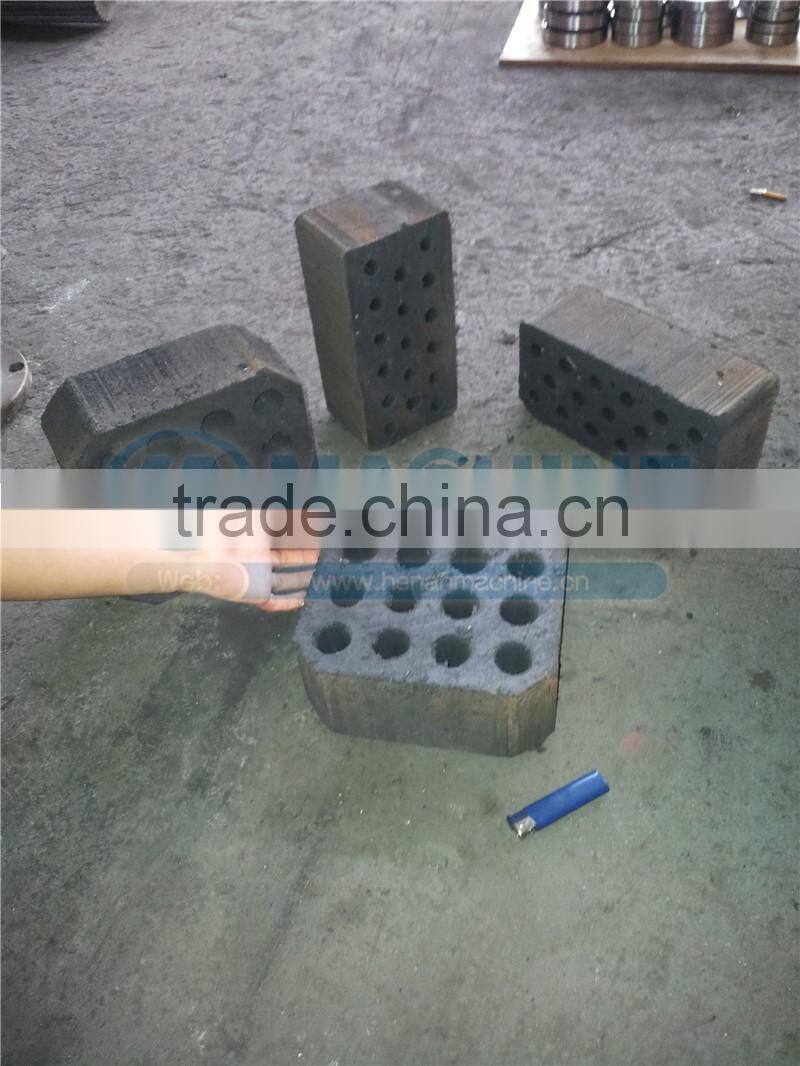

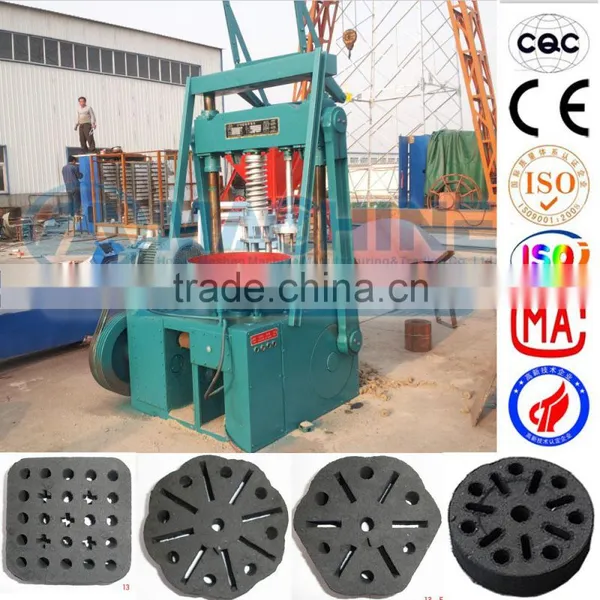

The different molds
The production line of Coal briquette machine
Apart from the honeycomb coal briquette machine, other related machine such as feeder, grinder, crusher, conveyor and dryer are also available in our factory, it means we can offer a whole product line. In addition, we can help you with the installation.
Raw material-----Crushing -----Mixing-----Feeding-----Briquetting----Final briquette
Honeycomb charcoal briquette machine structure is simple, includes the body, drive, feeding, punching, and conveying, etc, five parts.

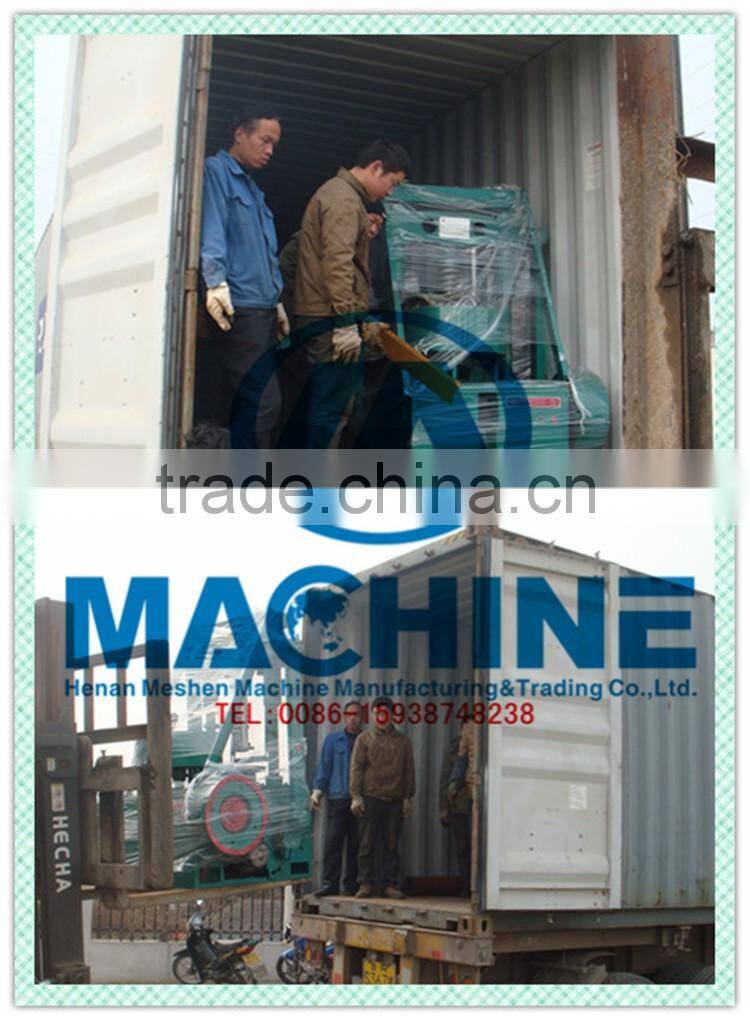

◊Delivering and Packaging of coke briquette Machine
1. Our single charcoal honeycomb briquette machine will be packed in the wooden case with frame and steel base, which is fixed for shipping.
2. If the machines are lot, we will load them in the containers, like the pictures show. And the standard container is 20GP, 40GP, 40HQ.
3. We also can package and shipping the machines as your requirements.
◊Our customers
We are the manufacturer with over 30 years working experience.
Thanks for your interest in our machines, If you didn't get the suitable machine in this page, please email me your detailed requirement. Hope to have have the honor to cooperate with you in the bright future.
