Specifications
Hydraulic wood bricket press machine :1.high capacity
2.hydraulic pressure system
3.best service
Boss strongly recommends Hydraulic wood bricket press machine
Brief Introduction of Hydraulic wood bricket press machine:
This type bricket press machine is a kind of the single-pressure -type automatic briquetting machine with powerful hydraulic pressure system. Hydraulic briquette machine is a kind of new designed dry powder briquetting machine, which on the base of the mechanical type for shaping different types of powder materials into briquettes. There are two inductive contactors, by adjusting them we can make different size of briquettes.

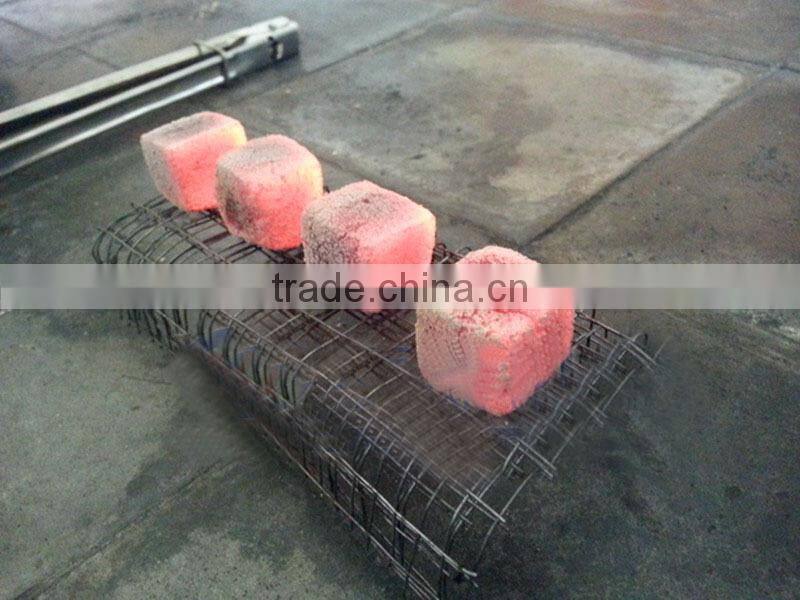

It can press a variety of powder materials like charcoal powder, coal powder, coke powder, wood powder and other powder materials into round, square ,hexgon or other shape tablets with high density. Especially, it is widely used in making charcoal briquettes field for shisha charcoal , BBQ charcoal, heating and other uses. It is mainly exported to Middle East, Europe and other countries with a big annnual sales.
Characteristics of Hydraulic wood brickets press machine:
1. Low consumption and environmental friendly
2. Humanized design, easy to operation and maintain
3. It is designed and developped by our technicists, are patented products.
4. CE and ISO, SGS certificates, ensure that the clients no worries
Specifications of Hydraulic wood powder bricketing machine:
- Model: Hydraulic-30
- Capacity:30pieces/time; 7-8times/minute
- Main motor for hydraulic oil pump: 15kw
- Material feed motor: 2.2kw
- 2m Discharge conveyor motor: 0.75kw
- Press type: hydraulic
- Pressure: 30-100tons (adjustble)
- Size of final briquettes: 20-60mm(round); 20-60mm(square), hexagon(30-60), or customized.

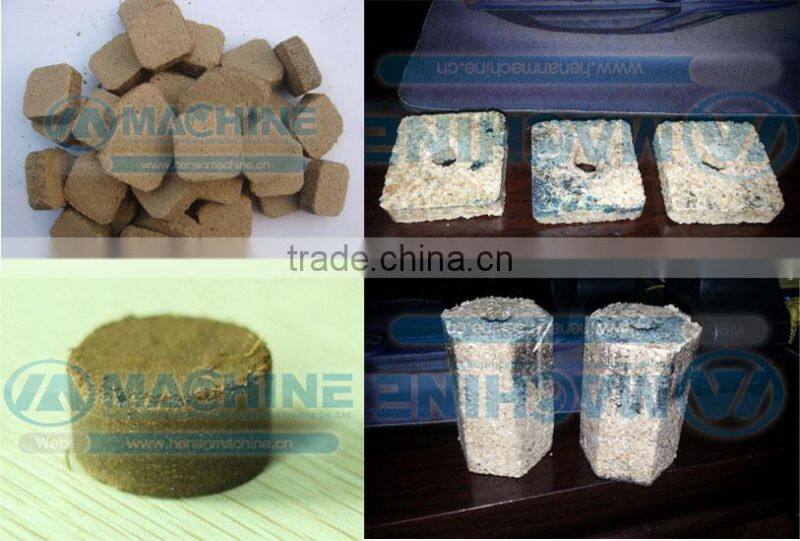

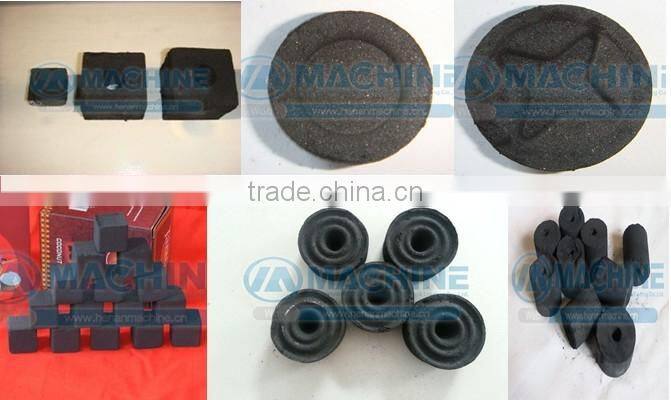

- Shape of final briquettes: square shape( 20*20*20mm;25*25*25mm;25*25*15mm), round shape (diameter:20,25,30,33,35,38,40,43mm), hexagon(40*40*80mm),or customized.
10.Size of feeding materials: 40-80mesh
11.Moisture of feeding materials: 15-20%
12.Control system: PLC control cabinet
13.Weight : 5500kg
14.Dimension: 3600*1200*2350mm

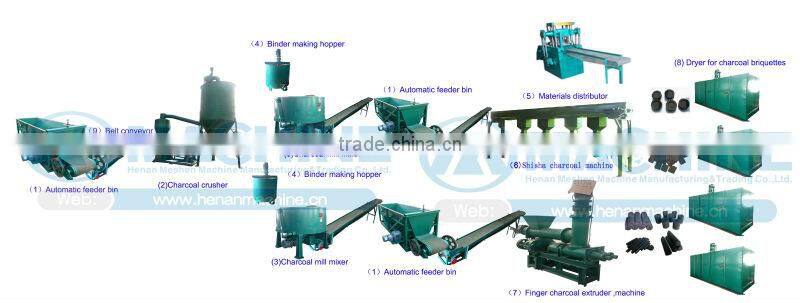

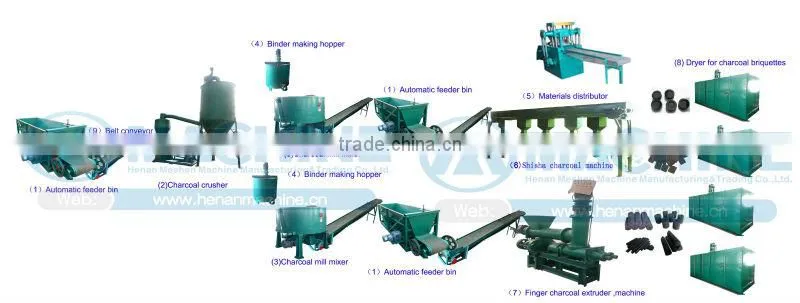

Example of complete brickets production line:
Feeding-----Crushing-----Mixing and Grinding----Dosing----Briquetting----Drying
