Home > Products > waste oil distillaiton plant > DAYI CE.,ISO Certificate Oil Sludge Refinery Machine And Residue Oil Recycling Plant By Pyrolysis Distillation Way
DAYI CE.,ISO Certificate Oil Sludge Refinery Machine And Residue Oil Recycling Plant By Pyrolysis Distillation Way
- 50 Set / Sets per Month
- LIANYUNGANG
- T/T
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Condition: | New | Flow: | 0.42ton/hour | Working Pressure: | Normal pressure |
Place of Origin: | Henan, China | Brand Name: | DYJD | Model Number: | DYZL-20 |
Usage: | Other, used oil recycling plant | Voltage: | 380V | Power(W): | 15KW |
Dimension(L*W*H): | 1800*3500 | Weight: | 30TON | Certification: | CE.ISO.BV.SGS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
waste Oil Refinery Equipment
20% Power Consumption;
Low Temperature Distillation;
Restore Gold Color of Waste Oil;
CE.,ISO Certificate Oil Sludge Refinery Machine And Residue Oil Recycling Plant By Pyrolysis Distillation Way
1.SAFETY |
We have many safety devices like safety valves, alarming ring,automatic decreasing pressure device, oil-water separator, anti-back fire device, negative pressure device.these devices can guarantee the oil gas can not be back to the reactor and the distillation machine is working under the normal pressure.
2.ENERGY SAVING |
1)Flame path is designed as spiral so that quantity of heat can be fully used.
2)Tail gas recycle use by the reactor
3)catalyst helps to improve the oil quality
3.OUR ADVANTAGES |
a. we use the underground dedusting system , the main part of the dedusting system is called strong spray tower which is made from stainless steel .
b. the security system is composed of two water seals, pressure sensors, temperature sensors and safety valves

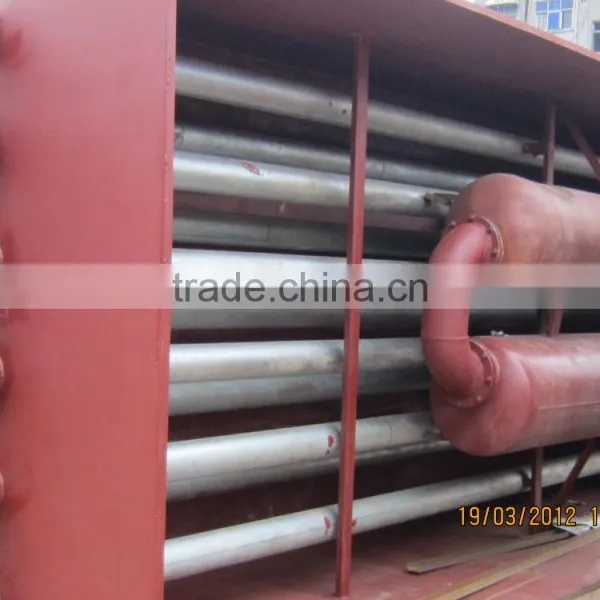

c. we use 2 condensers and one set of calandria cooling system to make the cooling line longer and cooling surface wider to get more oil. d. the bottom of the main reactor is also made from stainless steel
d. the filter system can help to get good quality of oil
4.SPECIFICATIONS | |
Items | Contents |
Raw materials | Heavy oil,fuel oil, furnace oil, pyrolysis oil,crude oil ,used engine oil |
Average oil yield | 85%~90% |
Material of Reactor | Q345R boiler steel plate |
Thickness of Reactor | 16mm |
Mode of cooling | Water Cooling |
Power Consumption | 15KW |
Heating materials | Coal, firewood,oil,natural gas |
Model | D1500mm*L3000mm (3ton) |
D2000mm*L5000mm (5ton) | |
D2800mm*L6000mm (10ton) | |
Rotate speed | 0.4 |
Operating pressure | Normal |
4.2. Fuel:coal, oil, gas & firewood,electricity

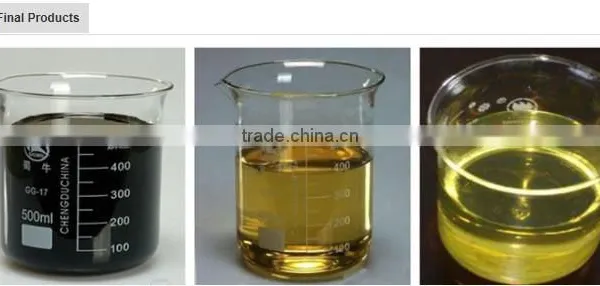

4.3. End product percentage:Diesel base oil,engine base oil
4.4. feeding:continuous feeding
4.5.Working pressure:positive and negative pressure
4.6. Cover land:around 200Square meters
4.7. Delivery time:20-25days after we receive deposit.
4.8.Shipment and container |
Model | Reactor material | Capacity | Container |
DYZL-05 | 316L stainless steel | 3-5tons | 2*40HQ |
DYZL-10 | 316L stainless steel | 6-10tons | 2*40HQ |
DYZL-15 | 316L stainless steel | 10-15tons | 2*40HQ |
DYZL-20 | 316L stainless steel | 15-20tons | 3*40HQ |
DYZL-25 | 316L stainless steel | 20-25tons | 3*40HQ |
DYZL-30 | 316L stainless steel | 25-30tons | 4*40HQ |
4.9. FOB Port (China) |
FOB lianyungang port, Jiangsu Province,China!
We can also arrange port according to customer
After-sale service:
1.Quality warranty period: One year warranty for the chamber of the distillation machines,and lifetime
maintenance for complete set of machines. pay the double air tickets, accommodation and food.
2.According to the requirement of the buyer, our company sends engineers for installation and
commissioning in buyer's site including the training of skills of buyer's workers on operation,
maintenance, etc.
3.Supply layout according to buyer's workshop and land, civil works information, operation manuals,
etc. to the buyer.
We are professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We are located in South chenfeng Road, Pingtai Economic and development Zone ,shangqiu city, Henan province, China, transportationconvenient.
We have rich experience(5 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our company is about 133400 square meter ,and the workshop is 58000 squremeter ,we have lathes ,milling machines,grinding machines and planders , broaching machines ,pucnhing machines,NC lathes,CNC miling machies,digital control drill and other testing device.We have more than 100 workers including 3 high-class engineers,10 professors ,and 40 technicists.Our Machine have been sold to India, Malaysia, Pakistan, Bangladesh, Lebanon, Mexico, Europe ETC.
