Green Type 85% Output Waste Oil Distillation Plant 15TPD With Low Wastage Rate
1.24hours continuous distillation without stop
2.Negative pressure and auto alarming system,100% save
3.Preheating system, saving 1/3 fuel for heating reactor
4.Distillation reactor non-rotate ,static distillation
5.Hight tech for dedust and waste treatment ,polluytion free
6.Special technology, getting higher oil rate ,and low wastage rate
|
Pyrolsis oil |
Tyre oil |
Plastic oil | |
Rubber oil | |
Other pyrolysis oil | |
Crude oil |
Crude oil from oil well |
|
Used /waste oil |
Waste lube |
Waste motor oil | |
Waste engine oil | |
Black oil | |
Wasthing parts oil | |
Oil from ship |
Oil from ship |
Sludge oil |
Oil sludge |

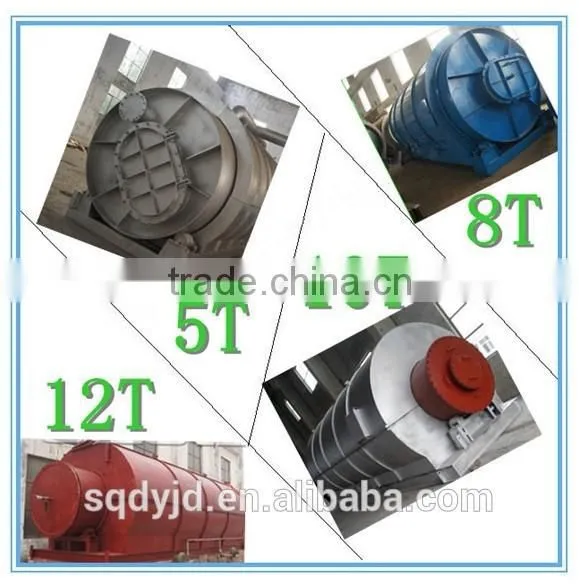

Distillation reactor
Type |
Technical parameter |
||||
Steel thickness(mm) |
daily disposal(T) |
daily power(°C) |
daily water(m3) |
daily coal(kg) |
|
8m3/5T |
12 |
5 |
80 |
0.5 |
500-600 |
12m3/8T |
12 |
8 |
120 |
0.8 |
700-900 |
15m3/10T |
16 |
10 |
180 |
1.5 |
1200-1400 |
30m3/20T |
16 |
20 |
280 |
2.5 |
1500-1600 |
Catalyst tower
Type |
Technical parameter |
|||
thickness of tower(mm) |
dia. of tower(φ) |
high of tower(mm) |
tray quantity of tower(layer) |
|
8m3/5T |
6 |
600 |
2800 |
3 |
12m3/8T |
8 |
700 |
3600 |
3 |
15m3/10T |
10 |
800 |
3800 |
4 |
30m3/20T |
10 |
800 |
4600 |
4 |

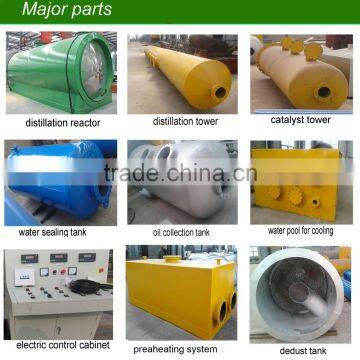

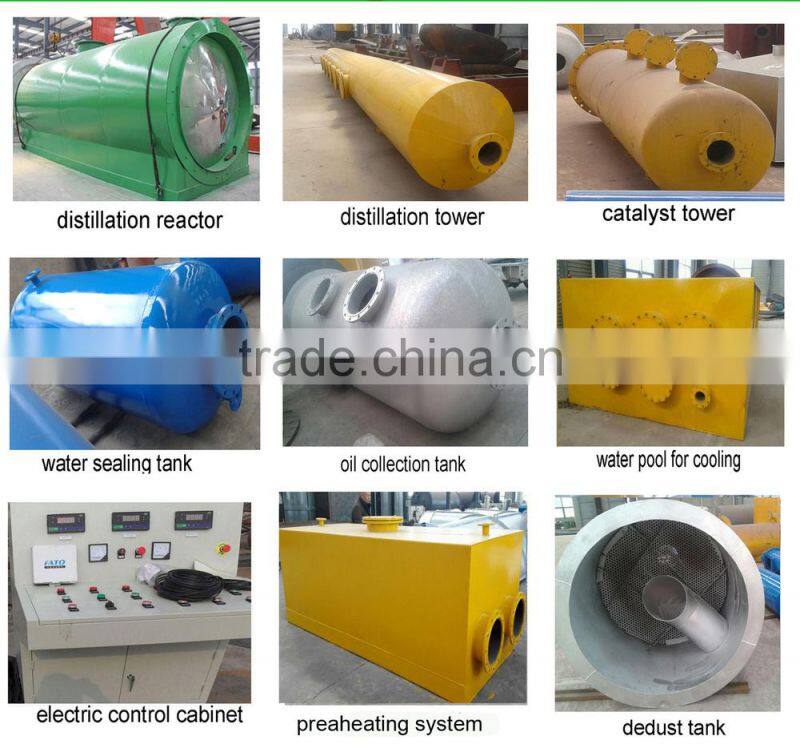

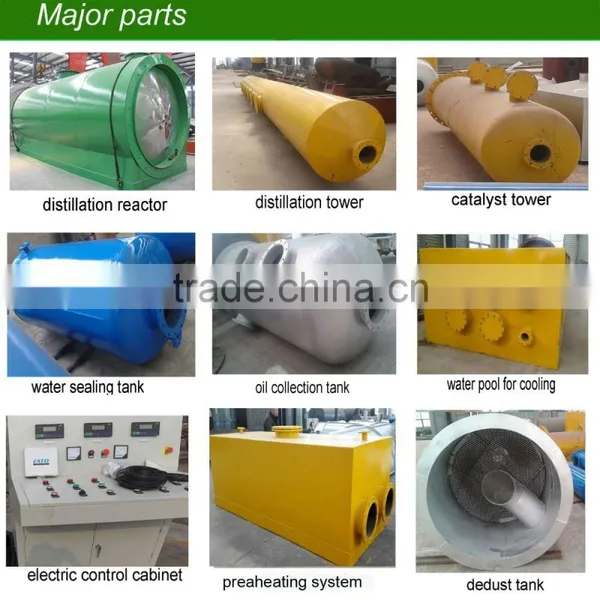

1.Reactor |
2.Catalyst tower |
3.Distillation tower |
4.Heat exchanger |
5.Condenser cooling system |
6.Filter |
7.Cooling pool |
8.Light component oil collection tank |
9.Middle Component oil collection tank |
10.Vacuum system |
11.Residue oil tank |
12.Dust remove disposal device(strong spray tower,draft fan,active carbonabsorption tower,purify water pool) |
13.water sealing |
14.strring tank |
15.Operation plat form |
16.Power Control cabinet |
17.Other accessory |

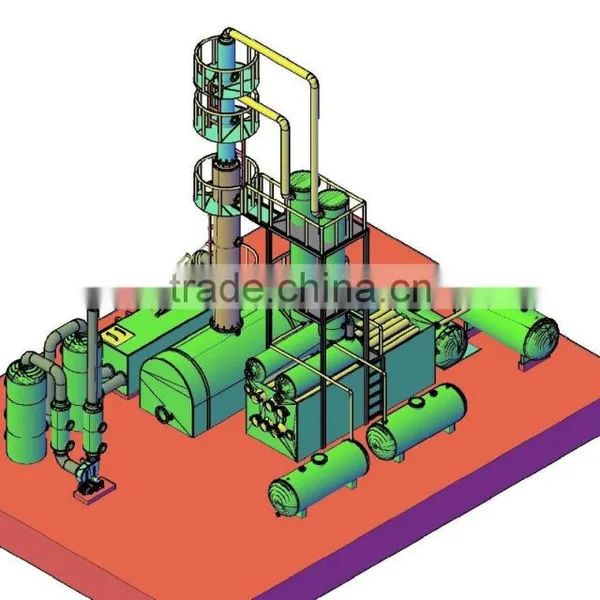

The equipment is applied to recycle the waste liquid oil (such as waste engine oil, waste crude oil, tire or plastic oil after pyrolysis) into non-standard gasoline and diesel. It mainly includes oil distillation kettle, rectifying tower, oil-gas cyclone sedimentation tank, condensation system, oil storage tanks, vacuum system, heating system, emission controlling system, feedstock pretreatment system.

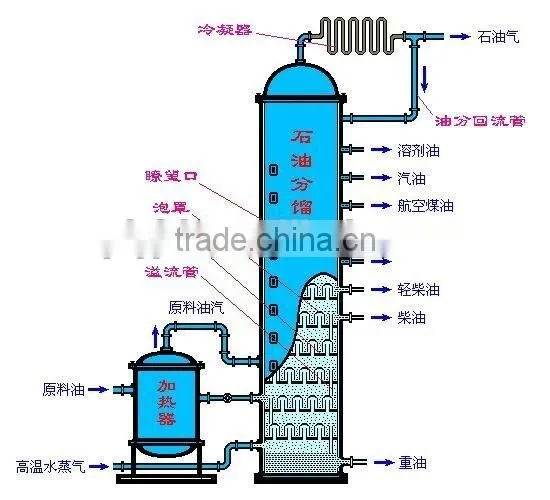

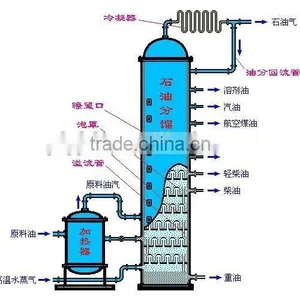

Technical process
1) Pumping the feedstock into the sedimentation tank 1# and 2#, adding some catalyst, injecting the air by compressor into the sedimentation tanks for making the feedstock and catalyst mixed well, sedimentation quietly for 5hours.
2) After sedimentation, discharging the sediment, pumping the feedstock after sedimentation into distillation kettle.
3) Starting the high-temp circulated oil pump for distillation and the heating furnace, the feedstock will be heated during distillation kettle and furnace, when they reach the distillation cuts temp, through the rectifying tower into the oil-gas cyclone sedimentation tank for separating the ash, then into the oil-gas condenser and getting the diesel and gasoline separately stored.
4) The part of non-condensable gas into the vacuum buffering tank, vacuum pump, water seal, back fire device and into the heating furnace for supplying heat.
5) When there is “low” alarming on the liquid level, it should start to pump the feedstock (after sedimentation in tank 1# and 2#) into the distillation kettle, the whole distillation process is continuous.
6) When there is no alarming on the liquid level, but the diesel color is very dark, it shows there is much more residual oil in the distillation kettle and should discharge, then put into the residual oil tank.
We are professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We are located in South chenfeng Road, Pingtai Economic and development Zone ,shangqiu city, Henan province, China, transportationconvenient.
We have rich experience in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
customer visting :
contact information:
Tel:86-370-2878188
mobile:86-187 3704 1114
contact person: linda
