2015New Condition Removable Pyrolisis Oil Distillation Plant Getting Diesel From Tyre oil/Plastic Oil 15TPD
NO. |
Model |
Raw material |
capacity |
1 |
DYZL-05 |
Used engine oil ,tyre oil ,plastic oil,crude oil
|
5 MT |
2 |
DYZL-10 |
10 MT |
|
3 |
DYZL-15 |
15MT |
|
4 |
DYZL-20 |
20 MT |
|
5 |
DYZL-25 |
25 MT |
|
6 |
DYZL-30 |
30 MT |
A. Safety . We treat safety as the first important thing in production.
1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2) Vacuum device makes reactor working under ordinary pressure or negative pressure.
3) Temperature monitoring device to avoid excessive working temperature.
4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
5) Carbon black is discharged in a closed situation to avoid catching fire.
B. Environmental protection
1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.
2) The procedure to remove carbon black is working under closed situation to avoid pollution.
C. High oil yield
1. We have 3 steps for cooling system: one condenser pipe, two large horizontal condensers and two vertical condensers. The oil gas pass through 3 steps cooling system in sequence. The total cooling area is 65 square meter.
2. When the oil gas pass through the condensers, it’s divided into several portions by small pipes inside condenser and be cooled separately.
3. In this way we maximize the cooling effect and improve the oil yield.
D. High oil quality
The oil gas is purified by molecular sieve inside catalyst chamber so that the quality of oil is higher.
E. Energy saving
1) The flame path is designed as spiral so that the quantity of heat can be fully used.
2) The residual gas from pyrolysis is recycled to furnace burning to heating the reactor.
3) The insulation cover is formed by 3 levels: steel plate, rock wool and refractory cement. Excellent thermal insulation effect helps saving fuel.
F. High degree of automation
1) In manufacturing we use auto cutting machine, auto welding machine, auto rolling machine so that both quality and appearance of our products can be guaranteed.
2) In production, we use auto-feeder to feed raw materials into auto-feeder. By auto-feeder it needs few workers and less time to feed. And because of 50 ton hydraulic pressure from auto-feeder, it can feed more tires than labor.
G. Long service life
1) The material of reactor is Q345R boiler plate with 16/18mm thickness which is produced by Chinese well-known enterprise. The head of reactor and accessories are using one-piece molding shell cover rather than welded plate.
2) All cutting, rolling and welding works are finished by automatic machines.
3) We know quite well about the material quality and manufacturing process, that’s why we are confident in the service life of our products.

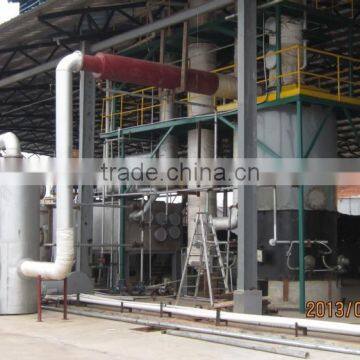

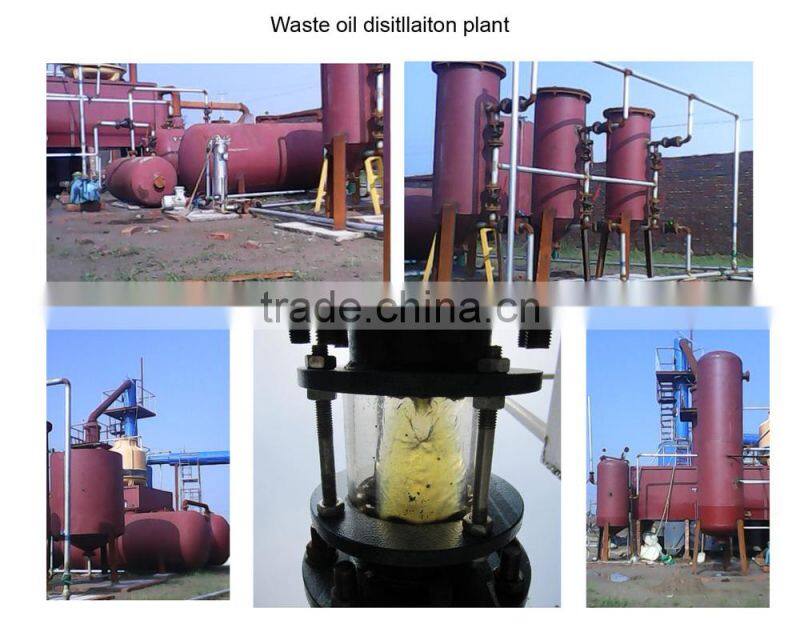

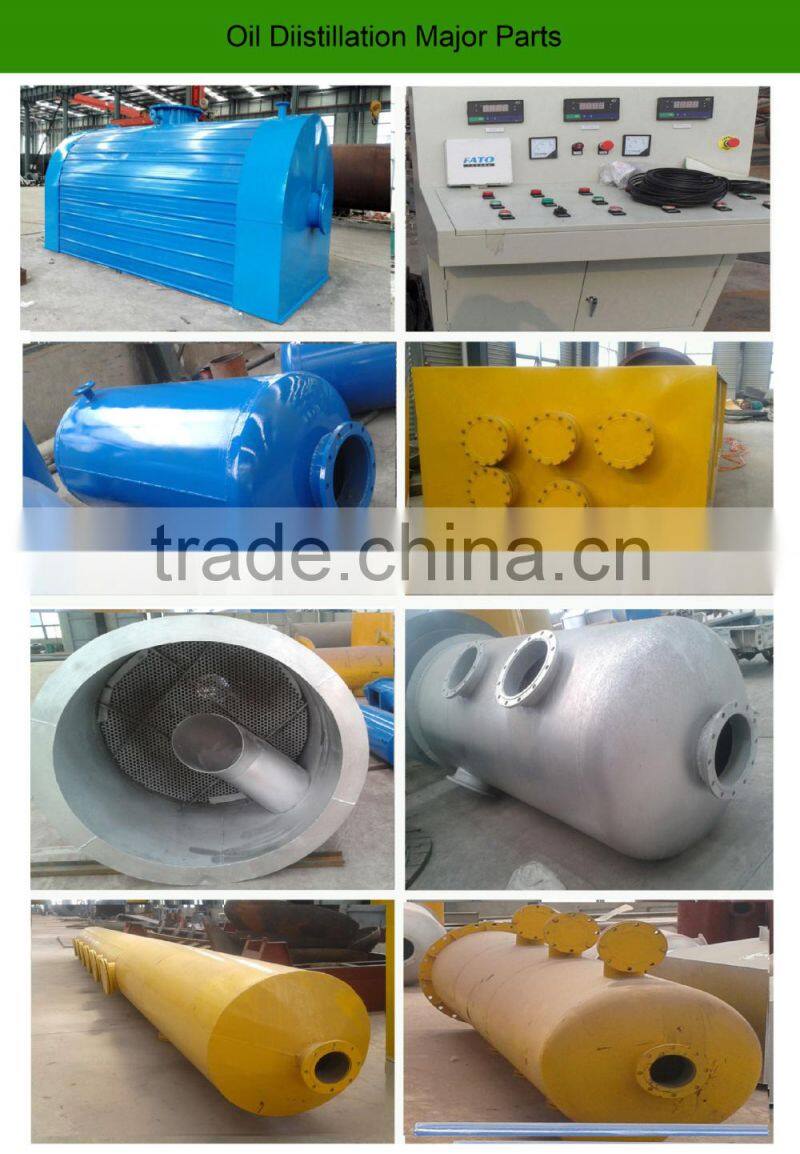

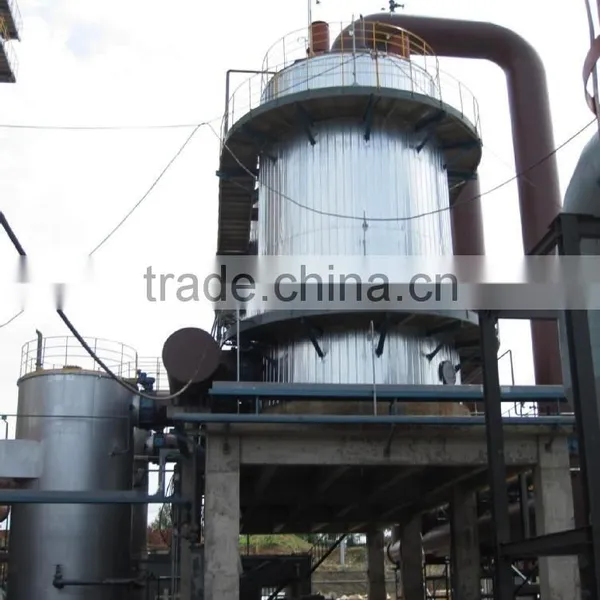

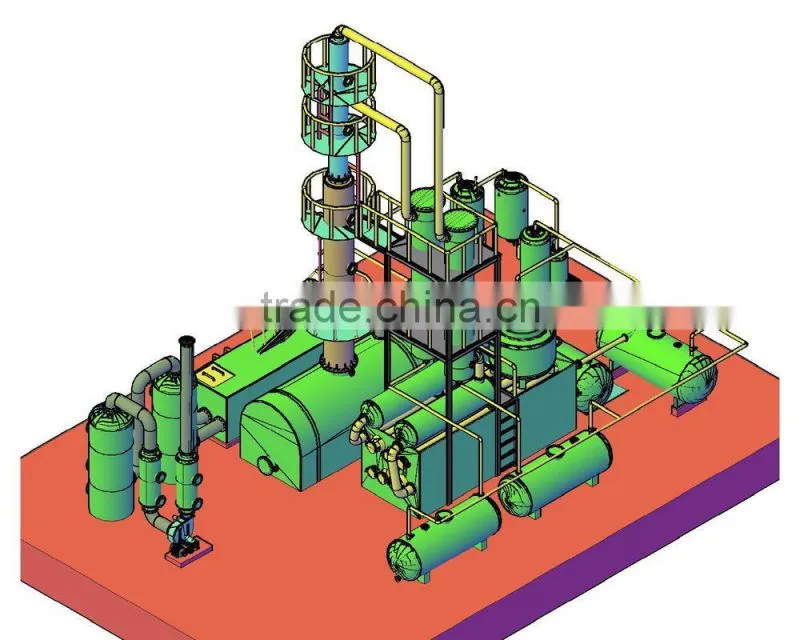

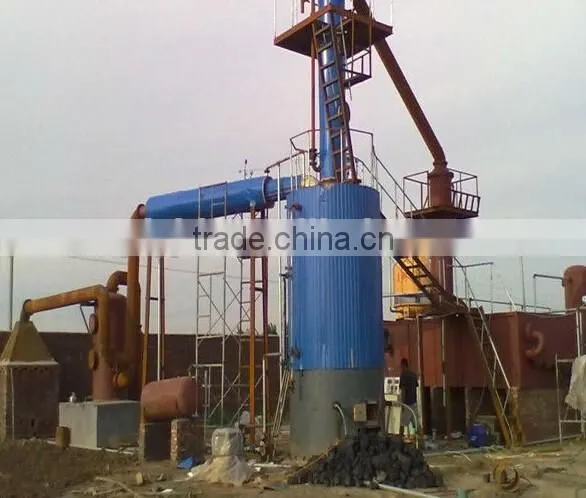

The equipment is applied to recycle the waste liquid oil (such as waste engine oil, waste crude oil, tire or plastic oil after pyrolysis) into non-standard gasoline and diesel. It mainly includes oil distillation kettle, rectifying tower, oil-gas cyclone sedimentation tank, condensation system, oil storage tanks, vacuum system, heating system, emission controlling system, feedstock pretreatment system.
Technical process
1) Pumping the feedstock into the sedimentation tank 1# and 2#, adding some catalyst, injecting the air by compressor into the sedimentation tanks for making the feedstock and catalyst mixed well, sedimentation quietly for 5hours.
2) After sedimentation, discharging the sediment, pumping the feedstock after sedimentation into distillation kettle.
3) Starting the high-temp circulated oil pump for distillation and the heating furnace, the feedstock will be heated during distillation kettle and furnace, when they reach the distillation cuts temp, through the rectifying tower into the oil-gas cyclone sedimentation tank for separating the ash, then into the oil-gas condenser and getting the diesel and gasoline separately stored.
4) The part of non-condensable gas into the vacuum buffering tank, vacuum pump, water seal, back fire device and into the heating furnace for supplying heat.
5) When there is “low” alarming on the liquid level, it should start to pump the feedstock (after sedimentation in tank 1# and 2#) into the distillation kettle, the whole distillation process is continuous.
6) When there is no alarming on the liquid level, but the diesel color is very dark, it shows there is much more residual oil in the distillation kettle and should discharge, then put into the residual oil tank.
30% TT deposit, balance paid by Sight LC/ 100% Sight L/C
Delivery with 15-20 days after getting advance payment or Sight L/C
After-sale service:
1. Delivery time-- It will be within 15 working days after we receive the deposit.
2. Warranty- The warranty period is 2 Years(Other suppler offer 1 year warranty), engineers available to service at any time.
3. Installation and Training-- Our Company will dispatch technician to guide installation and training for free, ensuring the operation safety. The installation period shall be one month; otherwise, buyers will pay extra salary for the technician with the price of USD 60.00 per day.
4. 24-Hours telephone service .
Regular phone visiting to check out if there is anything we can do for you, maintenance guiding, easily worn-out parts and catalyst offering, on-site maintenance.
5.Up-date technology will inform our users and help them update plant.
6.Documents of operation manual and matters need attention will be offered to users.
7.Offer catalyst formula for free, training oil treatment skills for free.
