Tech Maturity Easy Operation 24Hours Non-stop Waste Engine Oil Distillation Plant 15Ton Per Day

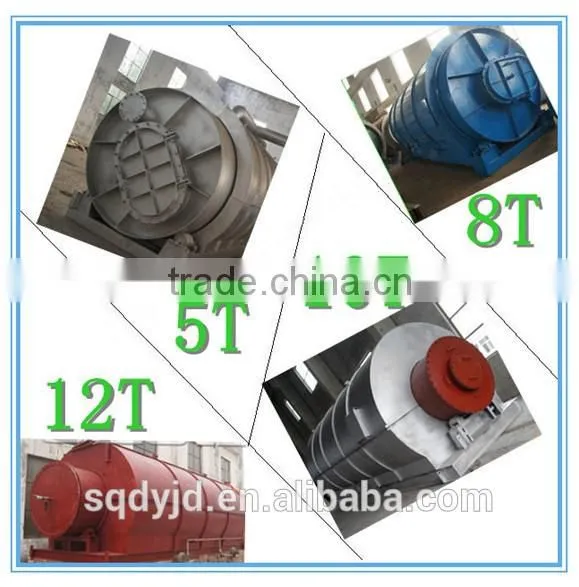

plant specification
NO. |
Model |
Raw material |
capacity |
1 |
XHZT-DE05 |
Used engine oil ,tyre oil ,plastic oil,crude oil
|
5 MT |
2 |
XHZT-DE10 |
10 MT |
|
3 |
XHZT-DE15 |
15MT |
|
4 |
XHZT-DE20 |
20 MT |
|
5 |
XHZT-DE25 |
25 MT |
|
6 |
XHZT-DE30 |
30 MT |
Techincal details
Machine type |
Environmental friendly |
Daily capacity |
15Ton |
Working pressure |
normal |
Working Tem |
0-500℃ |
Machine weight |
35000kgs |
Voltage |
3380v |
Power |
18kw |
Reactor working way |
Non-rotate |
Working round area |
600 square meters |
Labours required |
1 |
Reactor material |
Q345R/stainless steel |
Dedust system |
High-class |
Used for |
Waste engine oil/waste lube/fuel oil |
Out put |
Base oil/diesel |
Oil rate |
70-85% |
Feeding way |
Auto and non-stop |
Oil cooling way |
Water cooling |
Water consumption |
500-1000kgs |
Heating way |
direct /indirect way |
Heating fuel |
al,gas,oil |

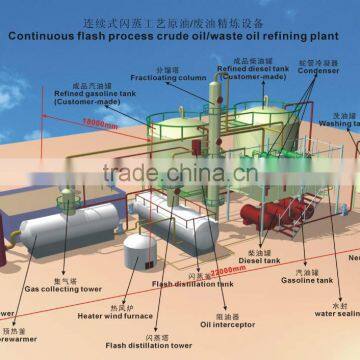

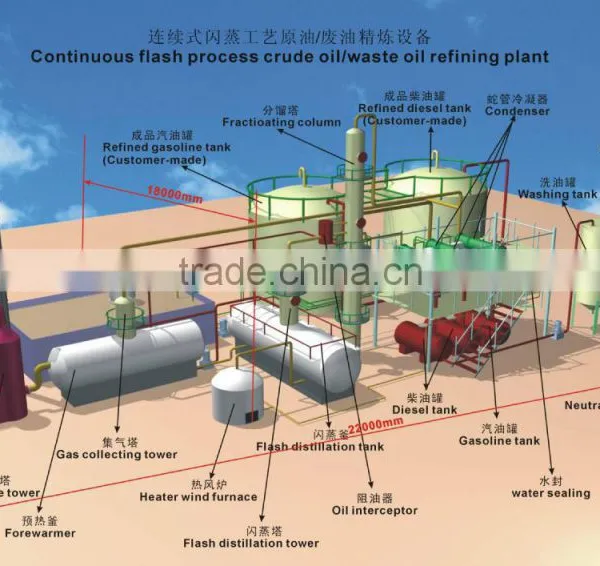

Major parts

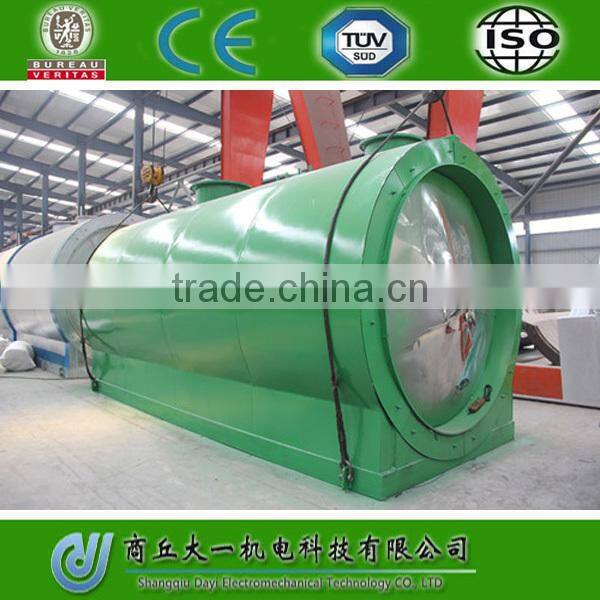

1.Reactor |
2.Catalyst tower |
3.Distillation tower |
4.Heat exchanger |
5.Condenser cooling system |
6.Filter |
7.Cooling pool |
8.Light component oil collection tank |
9.Middle Component oil collection tank |
10.Vacuum system |
11.Residue oil tank |
12.Dust remove disposal device(strong spray tower,draft fan,active carbonabsorption tower,purify water pool) |
13.water sealing |
14.strring tank |
15.Operation plat form |
16.Power Control cabinet |
17.Other accessory |

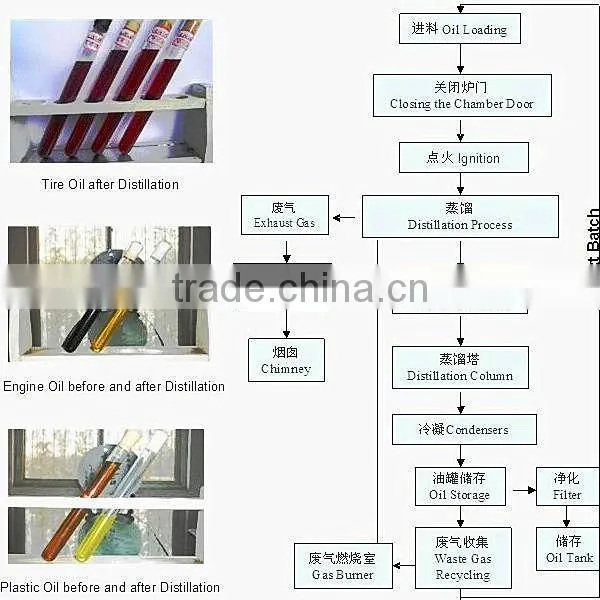

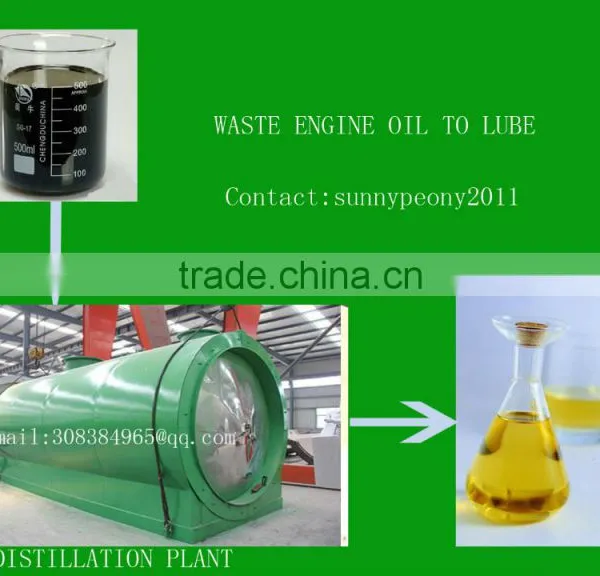

Working flow

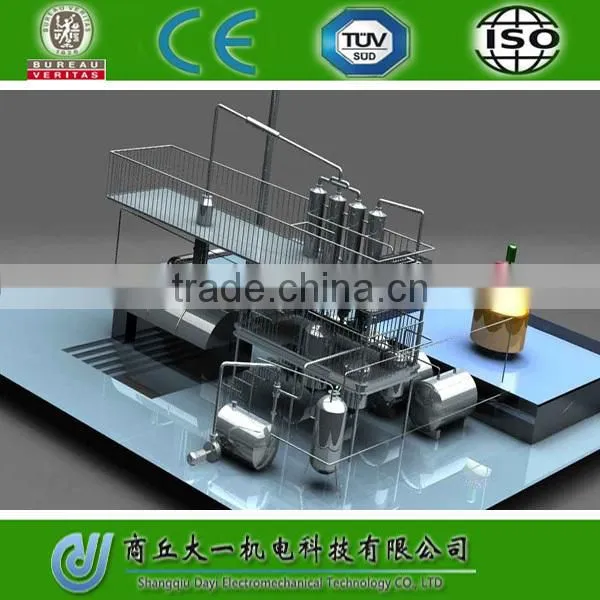

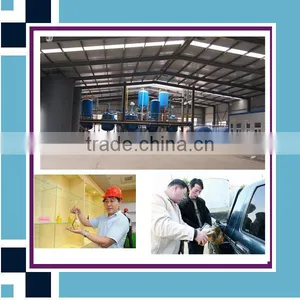

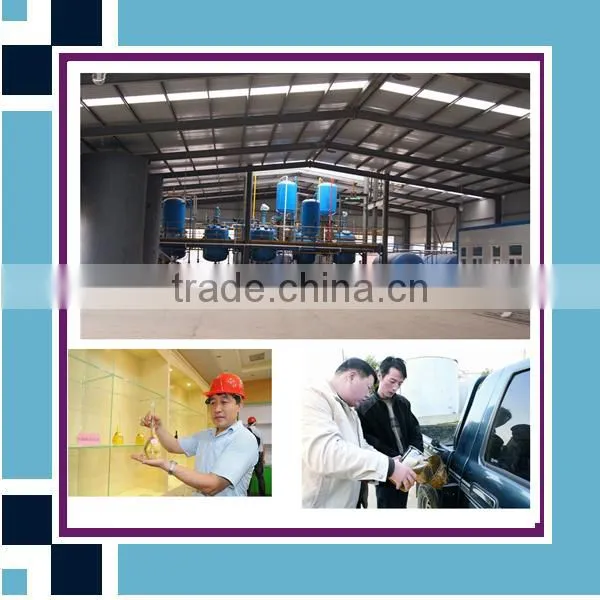

Running plants
Cutomers confusions:
1.How many years can this machine run?
Re:
For the whole set plant can run 5 to 7 years, easy-ware parts will be changed after 2 years
2.How about warranty and after-sale serv:ice?
Re:
The whole set warranty is 24months, after warranty period for any problem we offer 24horus-online serivce, in case need engineer guiding in site we send engineer to your side .
we send engineer to your site for guilding Installation and training your workers for free
3.What is your plant advantage?
Re:
A.)Special design ,preheating system will saving fuel for heating reactor
B)Negative pressure , saving fuel and keep plant safe
C)High-class dedust system , keep plant running without pollution
4.What is your payment term and delivery time?
Re:
30% deposit payment balance by sight lc
after getting your advance payment , will delivery within 15 days.
