Professional Tyre Oil Distillation Plant Recycling Furnace Oil
About the plant:
1.Usage:
Used for recycling waste oil, pyrolysis oil, crude oil and furnce oil, and oil sludge to base oil or diesel oil
2.Final product usage
Base oil can be used for heavy vechilces
diesel oil can be used for car
3.Working principle
Firstlty pretreat the raw oil to change the acid oil to netural .
Put raw oil (waste oil) in to distillation reacor , heating reacor to 300-500 degree , the crude oil will change to fraction oil, after refining fraction oil to remove sulfure , bad smell and light the oil color ,then distillation oil changed to diesel oil
Plant technic parameters
Machine type |
Environmental friendly |
Daily capacity |
10Ton |
Working pressure |
normal |
Working Tem |
0-500℃ |
Machine weight |
35000kgs |
Voltage |
3380v |
Power |
18kw |
Reactor working way |
Non-rotate |
Working round area |
600 square meters |
Labours required |
1 |
Reactor material |
Q345R/stainless steel |
Dedust system |
High-class |
Used for |
Waste engine oil/waste lube/fuel oil |
Out put |
Base oil/diesel |
Oil rate |
70-85% |
Feeding way |
Auto and non-stop |
Oil cooling way |
Water cooling |
Water consumption |
500-1000kgs |
Heating way |
direct /indirect way |
Heating fuel |
al,gas,oil |

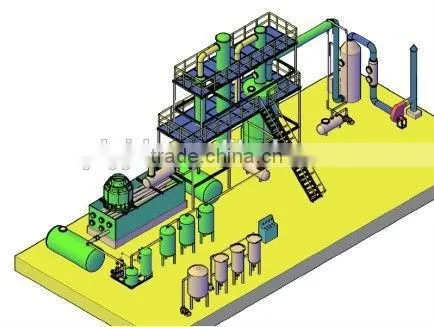

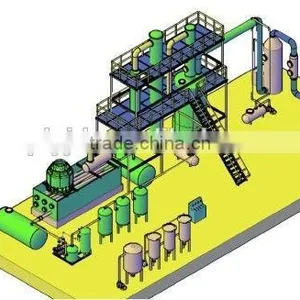

Major parts
1.Raw oil tank
This device is to store raw oil ,such as pyrolysis oil, waste engine oil,
black oil, waste lubrication oil, oil sludge etc.
2.Preheating system
This system will heat the raw oil and after heating this oil coming into disitllation reactor .this device use the hot smoke produced by dedust system ,this device can saving 1/3 fuel and saving disitllation time
3.Distillation reactor
This is the most important device , here the raw oil after preheating and go inside this reactor without stop. the reactor is horizontal ,and non-rotate when distillate oil .
this horizontal shape can giving bigger heating area then that of vertical reactor .so it can accelerate the disitllation .
tion final oil
4.Catalyst tower
This system we put catalyst chemical inside it and when distillate oil these chemical will make oil changed.
5.Distillaton tower
During distillation ,the oil will go up to certain altitude and in certain heating temperature, the altitude and temperature same important for oil change
6.Cooling device for oil
Cool oil by cool water .
The cooling system include water pool, condenser and cooling pipes and cooling tower, cooling tower is used for cooling the water inside water pool.
This cooling system’s water is recycling ,so water is recycled .
7.Final oil collection tank
These tanks used for collec
8.Safety device
This device is very important , it can keep anti-fire , it sure no backfire.
And the whole system is anti-explosion.
9. Electric Control system
This system can control the whole working system, it is easy to use. And very convenient
10.Heavy oil collection tank
Used for collection heavy oil after distillation.

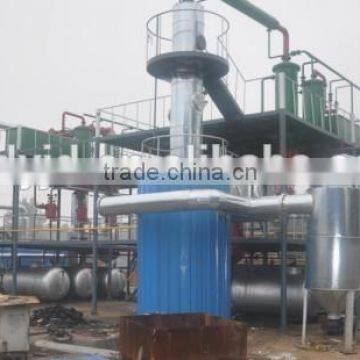

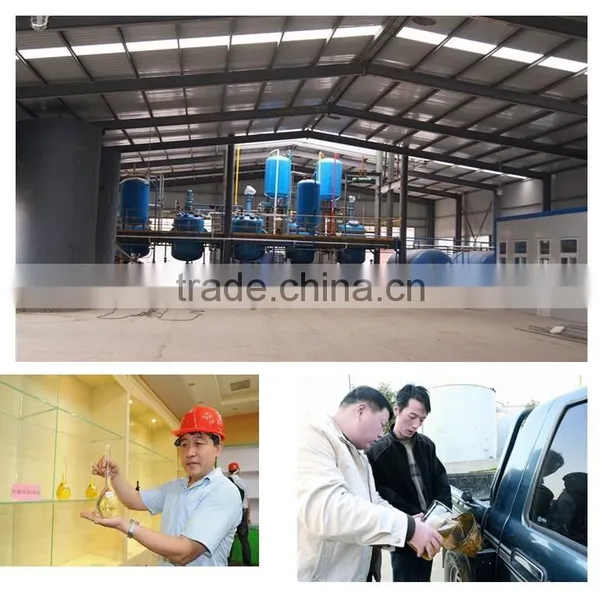

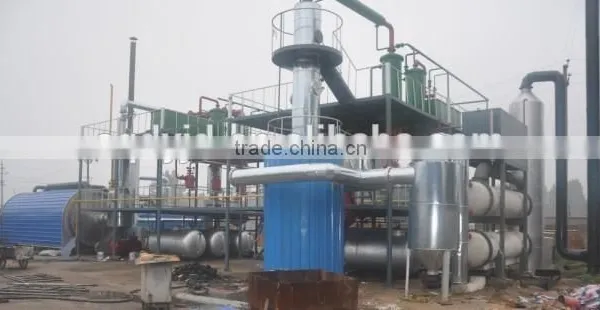

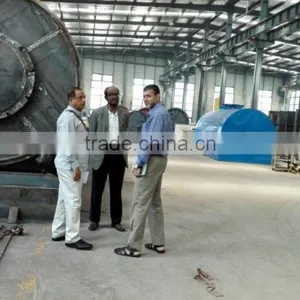

Running plant

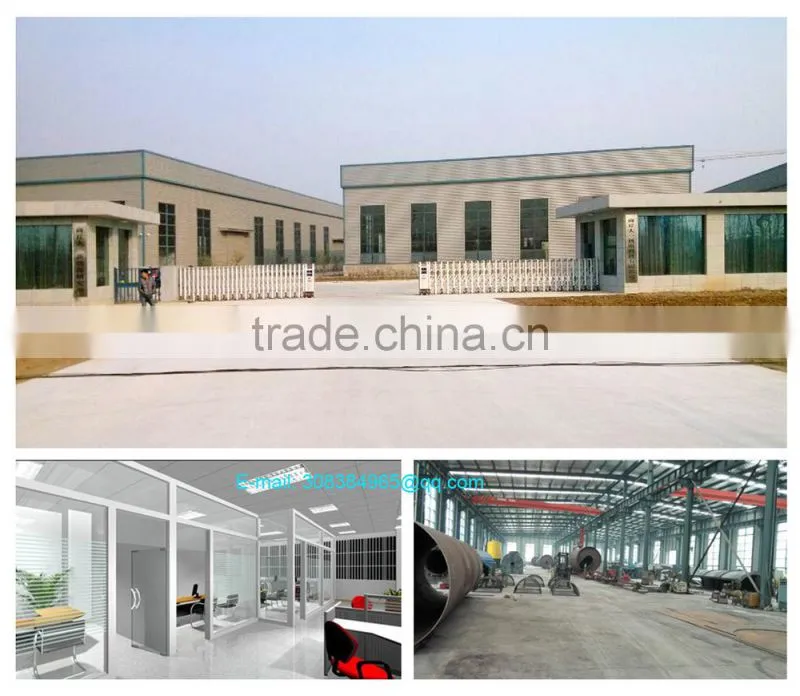

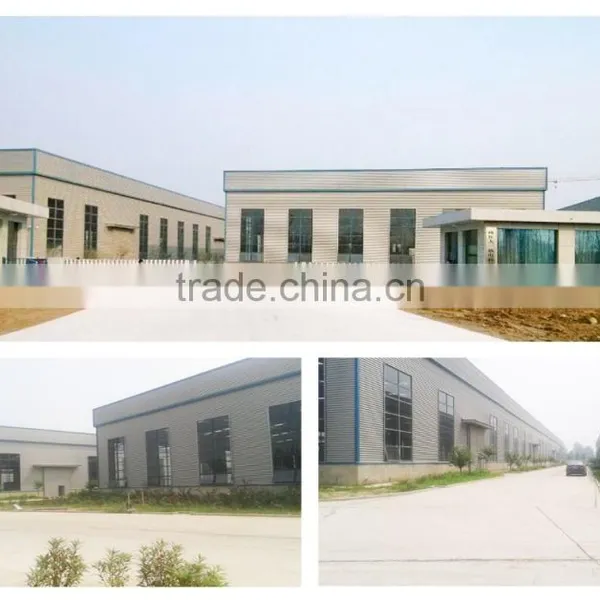

Our company:
We are a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We are located in South chenfeng Road, Pingtai Economic and development Zone ,shangqiu city, Henan province, China, transportation convenient.
We have rich experience(5 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
