Aviation SS-5 Series Separator Filter SS324FA-5 SS415FB-5 SS417FB-5
- 10000 Piece / Pieces per Month
- Guangzhou/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Aviation ST-5 Series Separator Cartridges ST318FA-5 ST324FA-5 ST412FC-5 ST412FC-5
-
Aviation Separator Synthetic screen cartridge SS318FA-5 SS412FC-5 SS432FC-5
-
New Aviation Filter Coalescer Separator CC-23-7 SS412FC
-
VF-21SB/22SB Series Coalescer Separator filter CC-21-7 CC-22-7
-
Aviation CAA Series 5 Coalescer Cartridges CAA28-5
-
Aviation Solids Removal VF-21SB/22SB Series filter cartridge CF-609-2PLO
Product Details
| Place of Origin | Guangdong, China | Brand Name | Coralfly | |
| Model Number | Filter Element | After-sales Service Provided | Engineers available to service machinery overseas |
Coralfly or neutral or according to customer's need
Product Description
Aviation SS-5 Series Separator Filter SS324FA-5 SS415FB-5 SS417FB-5

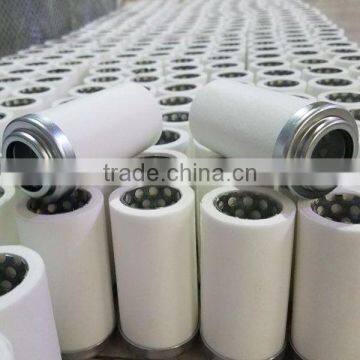

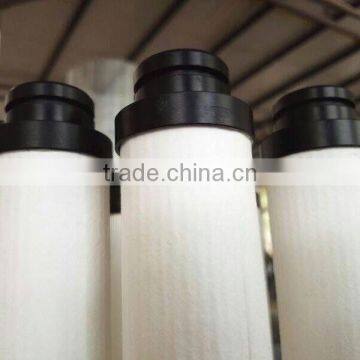

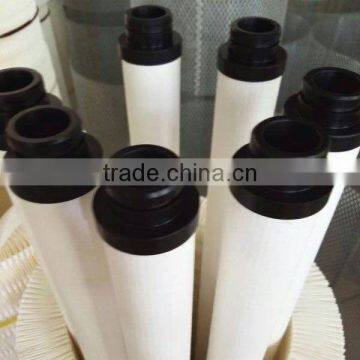

1.Photos of Aviation Separator Synthetic screen cartridge
2.Details of SS Model 5 & ST Model 5
SS-5 Series Synthetic and ST-5 Series Teflon separator cartridges are cleanable and reusable.They come in a variety of dimensional and end cap configurations.
SS-5 Series Synthetic separator cartridges feature a specially developed treated hydrophobic media. This media provides improved separation of fine water drops compared to standard Teflon® screen. An ultrasonically seamed tube of the synthetic
screen is placed around an epoxy coated metal shell, then adhesive bonded to metal end caps with gaskets.
ST-5 Series Teflon® separators use Teflon® coated screen wrapped around an epoxy coated metal shell, lock-seam folded, then adhesive bonded to metal end caps with gaskets. Both SS-5 and ST-5 Series Synthetic separators have the distinctive Velocigard which provides balanced flow of product throughout the cartridge. All metal components are treated to resist corrosion.
Standard Design Features
• Cleanable and reusable
• Superior water barrier
• Recommended maximum operating temperature: 240°F (115oC)
• PH range from 5 to 9
• Designed for balanced flow through cartridge
• Flow direction: Outside to in
Materials
• Synthetic mesh or Teflon® coated screen
• Treated metal components for corrosion protection
• Buna-N gaskets
• Other gasket, adhesive and metal materials are available on request
Relative part number
MODEL SYNTHETIC | MODEL TEFLON | O.D. (mm) | NOMINAL LENGTH (mm) | I.D. (mm) SEALING END | I.D. (mm) MOUNTING END |
| SS318FA-5 | ST318FA-5 | 76 | 460 | 13 | 51 |
| SS324FA-5 | ST324FA-5 | 76 | 610 | 13 | 51 |
| SS412FC-5 | ST412FC-5 | 105 | 290 | 48 | 48 |
| SS415FB-5 | ST415FB-5 | 114 | 380 | 13 | 89 |
| SS417FB-5 | ST417FB-5 | 114 | 430 | 13 | 89 |
| SS422FC-5 | ST422FC-5 | 105 | 570 | 48 | 48 |
| SS424FB-5 | ST424FB-5 | 114 | 610 | 13 | 89 |
| SS430FB-5 | ST430FB-5 | 114 | 760 | 13 | 89 |
| SS432FC-5 | ST432FC-5 | 105 | 800 | 48 | 48 |
| SS436FB-5 | ST436FB-5 | 114 | 910 | 13 | 89 |
| SS609FB-5 | ST609FB-5 | 152 | 230 | 13 | 89 |
| SS609FF-5 | ST609FF-5 | 152 | 230 | 13 | 114 |
| SS611FD-5 | ST611FD-5 | 152 | 290 | 89 | 89 |
| SS612FB-5 | ST612FB-5 | 152 | 310 | 13 | 89 |
| SS614FD-5 | ST614FD-5 | 152 | 370 | 89 | 89 |
| SS616FD-5 | ST616FD-5 | 152 | 410 | 89 | 89 |
| SS618FB-5 | ST618FB-5 | 152 | 460 | 13 | 89 |
| SS622FD-5 | ST622FD-5 | 152 | 560 | 89 | 89 |
| SS624FB-5 | ST624FB-5 | 152 | 610 | 13 | 89 |
| SS624FE-5 | ST624FE-5 | 152 | 610 | 13 | 105 |
| SS624FF-5 | ST624FF-5 | 152 | 610 | 13 | 114 |
| SS629FD-5 | ST629FD-5 | 152 | 730 | 89 | 89 |
| SS630FB-5 | ST630FB-5 | 152 | 760 | 13 | 89 |
| SS630FD-5 | ST630FD-5 | 152 | 760 | 89 | 89 |
| SS630FE-5 | ST630FE-5 | 152 | 760 | 13 | 105 |
| SS630FF-5 | ST630FF-5 | 152 | 760 | 13 | 114 |
| SS633FB-5 | ST633FB-5 | 152 | 840 | 13 | 89 |
| SS633FD-5 | ST633FD-5 | 152 | 840 | 89 | 89 |
| SS636FB-5 | ST636FB-5 | 152 | 910 | 13 | 89 |
| SS636FD-5 | ST636FD-5 | 152 | 910 | 89 | 89 |
| SS636FE-5 | ST636FE-5 | 152 | 910 | 13 | 105 |
| SS636FF-5 | ST636FF-5 | 152 | 910 | 13 | 114 |
| SS638FD-5 | ST638FD-5 | 152 | 965 | 89 | 89 |
| SS640FD-5 | ST640FD-5 | 152 | 1020 | 89 | 89 |
| SS640FE-5 | ST640FE-5 | 152 | 1020 | 13 | 105 |
| SS640FF-5 | ST640FF-5 | 152 | 1020 | 13 | 114 |
| SS643FB-5 | ST643FB-5 | 152 | 1090 | 13 | 89 |
| SS643FD-5 | ST643FD-5 | 152 | 1090 | 89 | 89 |
| SS644FB-5 | ST644FB-5 | 152 | 1120 | 13 | 89 |
| SS644FD-5 | ST644FD-5 | 152 | 1120 | 89 | 89 |
| SS644FE-5 | ST644FE-5 | 152 | 1120 | 13 | 105 |
| SS644FF-5 | ST644FF-5 | 152 | 1120 | 13 | 114 |
| SS648FD-5 | ST648FD-5 | 152 | 1220 | 89 | 89 |
| SS648FF-5 | ST648FF-5 | 152 | 1220 | 13 | 114 |
| SS656FB-5 | ST656FB-5 | 152 | 1420 | 13 | 89 |
| SS656FF-5 | ST656FF-5 | 152 | 1420 | 13 | 114 |
Relative pictures
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
1. What’s Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What’s kind of your packaging?
Coralfly packaging or customer’s requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
