Aviation Filter CIF Series CIF0.5LX3 CIF1 CIF2X2 CIF5LX3

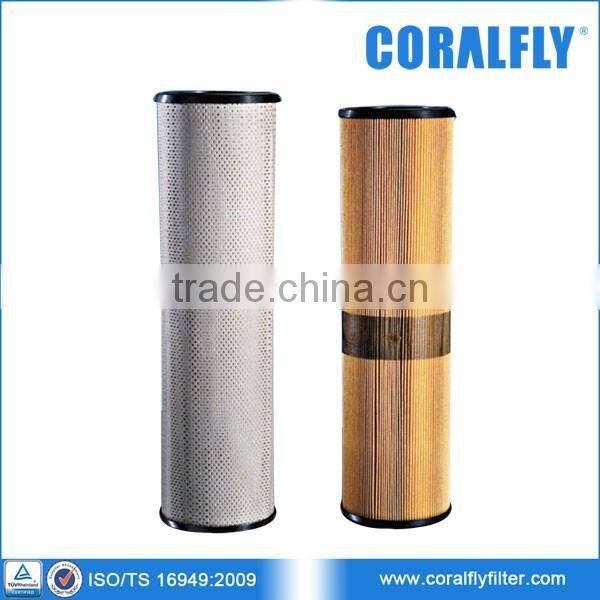

1.Photos of Crushable Incinerable Cartridges
2.Details of CIF Series
The CIF Series high efficiency pleated paper filter cartridges are designed to effectively remove solid contaminants from fuels. Media with high efficiency throughout the life of the cartridge is available in ratings from .5 to 5 microns. We recommend replacing cartridges when the differential pressure reaches 15 psi. Effective life of 15 psid is minimal.
Standard Design Features
• Recommended maximum operating temperature: 240°F
• PH range from 5 to 9
• Initial differential pressure: 2 psi (.14 kg/cm2) or less
• Design collapse pressure: 75 psid (5.25 kg/cm2)
• Flow direction: Outside to in
Benefits
• Crushable—can reduce your disposal volume by approximately 80%
• No metal components
• Incinerable—check your local regulations
• Pleat spacers—designed for maximum utilization of the filter medium
• Flow rates are comparable to other 6” (152 mm) OD cartridges
• Cartridge alignment is executed at top of center tube—easier, quicker
• Lightweight—contributes to reducing changeout time
Materials
• Constructed with high efficiency pleated paper
• No metal components—end caps and center tubes are engineered plastics
• Gaskets are Buna-N—other materials available by request
Relative part number
| MODEL | MICRON | O.D. (mm) | I. D. (mm) | NOMINAL LENGTH (mm) |
| CIF0.5LX3 | 0.5 | 152 | 89 | 1133 |
| CIF1 | 1 | 152 | 89 | 370 |
| CIF1X2 | 1 | 152 | 89 | 730 |
| CIF1LX3 | 1 | 152 | 89 | 1133 |
| CIF2 | 2 | 152 | 89 | 370 |
| CIF2X2 | 2 | 152 | 89 | 730 |
| CIF2LX3 | 2 | 152 | 89 | 1133 |
| CIF5 | 5 | 152 | 89 | 370 |
| CIF5X2 | 5 | 152 | 89 | 730 |
| CIF5LX3 | 5 | 152 | 89 | 1133 |
Relative pictures
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
1. What’s Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What’s kind of your packaging?
Coralfly packaging or customer’s requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
