Aviation Flushing Filter MPI-622-2SB MPI-628-2SB MPI-656-2SB
- 10000 Piece / Pieces per Month
- Guangzhou/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Coralfly | |
Model Number | Filter Element | After-sales Service Provided | Engineers available to service machinery overseas |
Coralfly or neutral or according to customer's need
Product Description
Aviation Flushing Filter MPI-622-2SB MPI-628-2SB MPI-656-2SB

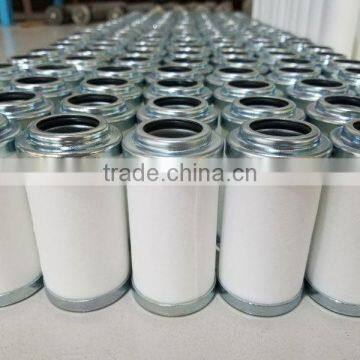

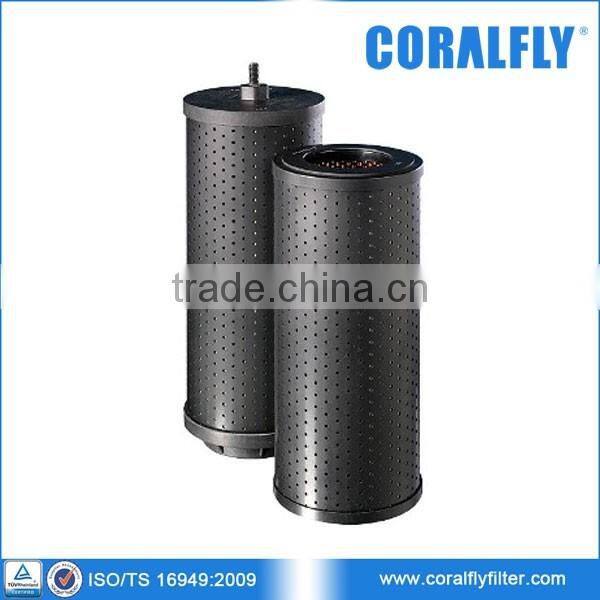

1.Photos of Aviation Flushing Filter
2.Details of MPI Series
The Flushing Filter elements are designed to be used in place of coalescer elements in a coalescer separator
vessel during flushing on new systems or when there’s been repairs to the existing equipment. The elements
are less expensive than coalescer elements and have more filtration media for better solids holding capacity.
Standard Design Features
• Recommended maximum operating temperature: 240°F
• Maximum differential pressure: 75 psi
• Flow direction: Inside to out
• PH range from 5 to 9
• Single-piece construction
• “Rod Mount” or “Screw base” options available
Benefits
• Less expensive than coalescer cartridges
• More solids holding capacity than coalescer cartridges
• Less weight resulting in lower freight costs
Materials
• All metal components coated to protect against corrosion
• Gaskets are Buna-N—other materials available on request
• Metal outer shell and core
Relative part number
Model | Micron rating | Length | O.D. | I.D. | Mounting Style |
MPI-622-2SB | 2 | 580 | 152 | 88 | SCREW BASE |
MPI-628-2SB | 2 | 730 | 152 | 88 | SCREW BASE |
MPI-633-5SB | 5 | 860 | 152 | 88 | SCREW BASE |
MPI-638-5SB | 5 | 990 | 152 | 88 | SCREW BASE |
MPI-643-0.5SB | 0.5 | 1140 | 152 | 88 | SCREW BASE |
MPI-643-5 | 5 | 1100 | 152 | 88 | ROD MOUNT |
MPI-643-5SB | 5 | 1140 | 152 | 88 | SCREW BASE |
MPI-56-0.5SB | 0.5 | 1450 | 152 | 88 | SCREW BASE |
MPI-656-1 | 1 | 1430 | 152 | 88 | ROD MOUNT |
MPI-656-2SB | 2 | 1450 | 152 | 88 | SCREW BASE |
MPI-656-5 | 5 | 1430 | 152 | 88 | ROD MOUNT |
MPI-656-5SB | 5 | 1450 | 152 | 88 | SCREW BASE |
Relative pictures
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
