Liquid Cartridges Meltblown Filter Model PCA

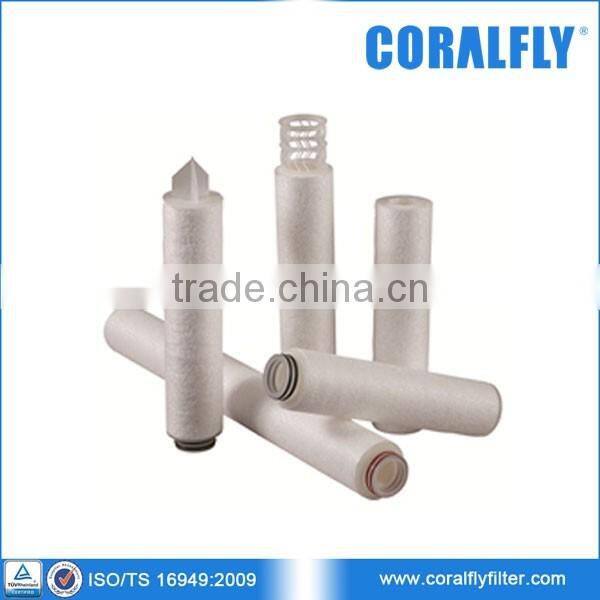

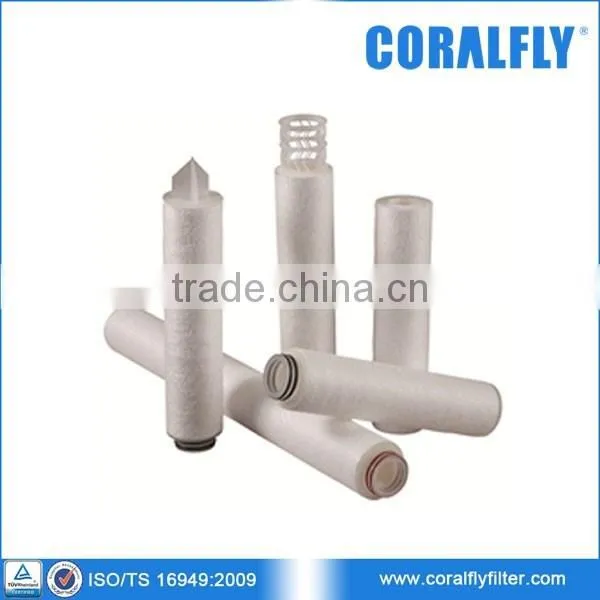

1.Photos of Liquid Cartridges Meltblown Filter Model PCA
2.Details of Liquid Cartridges Meltblown Model PCA
Materials
- Micro-denier polypropylene material
- Polypropylene core
- Standard double open end (DOE, no end caps)
- Variety of end cap treatment options available
Performance & Certifications
- Biosafety - Meets USP-XXIII, Class VI-121° C plastics
- Rinse Up - 18 megohm-cm with minimal throughput
- FDA - 100% FDA compliant material for food & beverage contact
- NSF - Tested & certified
- Certified Kosher
- Free of surfactants, binders and adhesives
- Autoclaving - Single open end elements can be autoclaved for 30 minutes at 250°F with no end load. Cool to normal system temperature prior to use
- Steam Sterilization - Not recommended
Operating Data
- Max. recommended operating temperature: 180°F (82.2°C)
- Recommended change-out differential pressure: 35 psi (2.5 kg/cm2)
- Max. element differential pressure: 50 psi (3.5 kg/cm2) – assuming full encirclement sleeve
- Flow direction: outside to inside

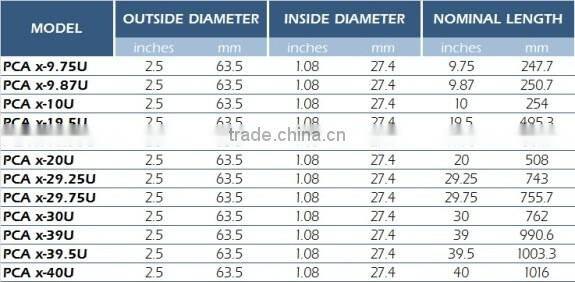

Nominal Dimensions
Relative pictures
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
1. What’s Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What’s kind of your packaging?
Coralfly packaging or customer’s requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
