Aviation Separator Filter SM100-318FA-5 SM100-324FA-5 SM100-412FC-5

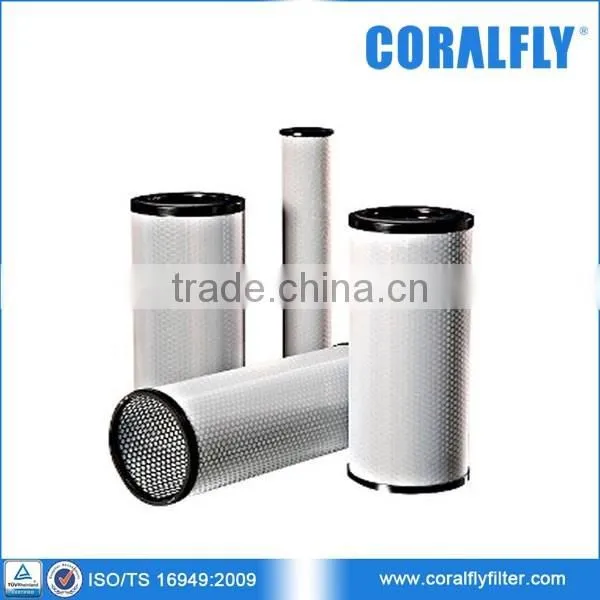

1.Photos of Aviation Filter SM100-318FA-5 SM100-324FA-5 SM100-412FC-5
2.Details of Aviation Filter SM100 Series
SM Series synthetic separator cartridges feature a specially developed treated hydrophobic media provides improved separation of fine water drops compared to standard Teflon screen. An ultrasonically seamed double tube of the synthetic screen is placed around an epoxy coated metal shell, then adhesive bonded to metal end caps with gaskets.
All metal components are treated to resist corrosion. Maximum recommended operating temperature is 240°F. For compatibility in extreme operating conditions, other gasket, adhesive and metal materials are available.
Standard Design Features
• Cleanable and reusable
• Superior water barrier
• Recommended maximum operating temperature: 240°F (115oC)
• PH range from 5 to 9
• Designed for balanced flow through cartridge
• Flow direction: Outside to in
Material
• Synthetic mesh coated screen
• Treated metal components for corrosion protection
• Buna-N gaskets
• Other gasket, adhesive and metal materials are available on request
Relative part number
| ROD MOUNT MODEL |
OD (MM) |
LENGTH (MM)
|
ID SEALING END (MM) |
ID (MM) |
| SM100-318FA-5 | 76 | 460 | 13 | 51 |
| SM100-324FA-5 | 76 | 610 | 13 | 51 |
| SM100-412FC-5 | 105 | 290 | 48 | 48 |
| SM100-415FB-5 | 114 | 380 | 13 | 89 |
| SM100-417FB-5 | 114 | 430 | 13 | 89 |
| SM100-422FC-5 | 105 | 570 | 48 | 48 |
| SM100-424FB-5 | 114 | 610 | 13 | 89 |
| SM100-430FB-5 | 114 | 760 | 13 | 89 |
| SM100-432FC-5 | 105 | 800 | 48 | 48 |
| SM100-436FB-5 | 114 | 910 | 13 | 89 |
| SM100-09FB-5 | 152 | 230 | 13 | 89 |
| SM100-09FF-5 | 152 | 230 | 13 | 114 |
| SM100-11FD-5 | 152 | 290 | 89 | 89 |
| SM100-12FB-5 | 152 | 310 | 13 | 89 |
| SM100-14FD-5 | 152 | 370 | 89 | 89 |
| SM100-16FD-5 | 152 | 410 | 89 | 89 |
| SM100-18FB-5 | 152 | 460 | 13 | 89 |
| SM100-22FD-5 | 152 | 560 | 89 | 89 |
| SM100-24FB-5 | 152 | 610 | 13 | 89 |
| SM100-24FE-5 | 152 | 610 | 13 | 105 |
| SM100-24FF-5 | 152 | 610 | 13 | 114 |
| SM100-29FD-5 | 152 | 730 | 89 | 89 |
| SM100-30FB-5 | 152 | 760 | 13 | 89 |
| SM100-30FD-5 | 152 | 760 | 89 | 89 |
| SM100-30FE-5 | 152 | 760 | 13 | 105 |
| SM100-30FF-5 | 152 | 760 | 13 | 114 |
| SM100-33FB-5 | 152 | 840 | 13 | 89 |
| SM100-33FD-5 | 152 | 840 | 89 | 89 |
| SM100-36FB-5 | 152 | 910 | 13 | 89 |
| SM100-36FD-5 | 152 | 910 | 89 | 89 |
| SM100-36FE-5 | 152 | 910 | 13 | 105 |
| SM100-36FF-5 | 152 | 910 | 13 | 144 |
| SM100-38FD-5 | 152 | 965 | 89 | 89 |
| SM100-40FD-5 | 152 | 1020 | 89 | 89 |
| SM100-40FE-5 | 152 | 1020 | 13 | 105 |
| SM100-40FF-5 | 152 | 1020 | 13 | 114 |
| SM100-43FB-5 | 152 | 1090 | 13 | 89 |
| SM100-43FD-5 | 152 | 1090 | 89 | 89 |
| SM100-44FB-5 | 152 | 1120 | 13 | 89 |
| SM100-44FD-5 | 152 | 1120 | 89 | 89 |
| SM100-44FE-5 | 152 | 1120 | 13 | 105 |
| SM100-44FF-5 | 152 | 1120 | 13 | 114 |
| SM100-48FD-5 | 152 | 1120 | 89 | 89 |
| SM100-48FF-5 | 152 | 1120 | 13 | 114 |
| SM100-56FB-5 | 152 | 1420 | 13 | 89 |
| SM100-56FF-5 | 152 | 1420 | 13 | 114 |
Relative pictures
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
1. What’s Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What’s kind of your packaging?
Coralfly packaging or customer’s requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
