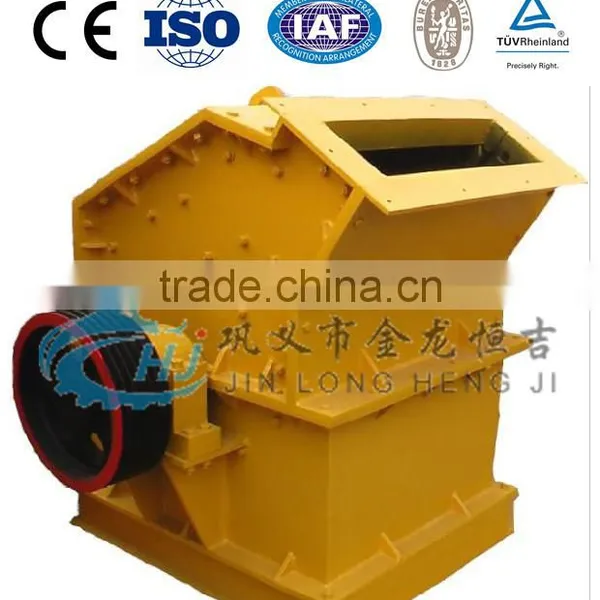

CE approved sand crusher/sand making machine price with 80-180 t/h
Our Sand Making Machine is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand. HengJi Series Sand Making Machine is one of the most advanced impact crushers nowadays. It introduces high quality roller bearings like Sweden SKF and America TIMKEN, which ensure the smooth running of main unit. Personalized design is used in upper cap, sand making machine is easy and convenient to maintain and replace spare parts. Sand Making Machine is our sole patent using central feeding & central cascade feeding, which can be changed based on customers' needs.
Sand crusher feature
1, the structure is simple, the cost is low.
2, high efficiency and energy saving, crush with high efficiency.
3, finely and coarse grinding function.
4, moisture of material by the impact of small, water content of up to 8%.
5, in crushing hard, very hard material (such as corundum, sintered bauxite etc.).
6, product is a cube, little iron pollution.
When the material taken into the feed hopper, through the center feeding hole fall into the high-speed rotation of the rotor was sufficiently accelerated and by emission mouth out, first impact with a part of materials of the free falling after rebound, and then impact to the vortex shaped material around the vortex cavity lining (or counter block), is first bounced back to the top after the crushing cavity, partial steering movement, forming a continuous material curtain and launch out from the impeller material impact, finally through the lower part of the discharge port discharge.
1. sand crusher is used for Pebble, rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, attle artificial sand production.
2. sand crusher has been used in Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3.Sand production and stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, air new generation sand making machine port runway, municipal engineering and high-rise buildings.
4.The grinding anterior finely process of mining areas. Building materials, mining, metallurgy, chemical industry, cement, abrasive, refractory material, etc.
5.The crush of high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
6.The production of glass, quartz sand and other high purity material.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | ||
| Capacity (t/h) |
Center and Sides Feeding | 120-180 | 200-260 | 300-380 | 450-520 | |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | ||
| Max. Feeding Size (mm) | Soft Material | 35 | 40 | 45 | 50 | |
| Hard Material | 30 | 35 | 40 | 45 | ||
| Rotation Speed(rpm) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | ||
| Double Motor Power (kw) | 110 | 180 | 264 | 400 | ||
| Overall Dimension L×W×H (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | ||
| Vibrating Sensor | Inspection Range: 0.1-20mm/s Continual Adjustment | |||||
| Hydraulic Oil Pump | Motor Power of Double Oil Pump(Kw) | 2×0.31kw | ||||
| Overall Dimension L×W×H (mm) |
820×520×1270 | |||||
| Power of Oil Tank Heater | 2KW | |||||
a. Installation and adjustment: Should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.
b. Quality Guarantee: Three-guarantees of product and warranty period is one year.
c. Technical support is provided from the beginning to the end.
d. Spare parts are serviced for sale in the whole year.
