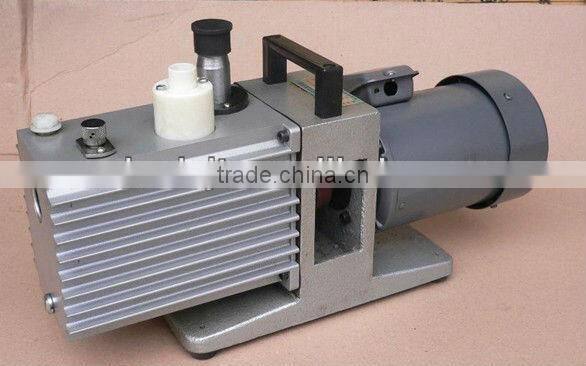

2XZ-8 Laboratory Mini Rotary Vane Vacuum Pump
Features
1. The 2XZ series Rotary Vane Vacuum Pump belongs to two stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
2. It has the advantages of small size, light weight, low noise, convenient for using and more.
3. The 2XZ series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.
Detailed description
2XZ series rotary vane type vacuum pump can be used independently, which also can be as Booster pump, Diffusion pump, Molecular pump and Titanium Pump's pre-pump. Also used as electronic devices produce, vacuum drying, filtration, welding, metal smelting etc .
Technical data
Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | 2XZ-15 | |
Pumping speed (L/S) | 0.5 | 1 | 2 | 4 | 8 | 15 | |
Ult. vacuum (Pa) | Without gas ballast | ≤6*10-2 | |||||
With gas ballast | ≤6.5 | ≤1.33 | |||||
Rotary speed (r/min) | 1400 | 1410 | 1410 | ||||
Working Voltage (V) | 220 | 220/380 | |||||
Motor power (Kw) | 0.18 | 0.25 | 0.37 | 0.55 | 1.1 | 1.5 | |
Inlet diameter (mm) | Φ16 | Φ16 | Φ25 | Φ25 | Φ40 | Φ40 | |
Temp. rise of pump oil (℃) | 40 | ≥45 | ≥65 | ≥70 | |||
Oil capacity (L) | 0.5 | 0.55 | 0.8 | 0.1 | 2.5 | 4.0 | |
Size | L (mm) | 445 | 467 | 488 | 528 | 575 | 703 |
W (mm) | 130 | 130 | 145 | 145 | 172 | 338 | |
H (mm) | 254 | 254 | 280 | 280 | 350 | 453 | |
Weight (kg) (with 3-phase motor) | 13.5 | 15 | 20 | 23 | 48.5 | 77.5 | |
Noise (db) | ≥60 | ||||||
Vibration reference number (u) | ≥80 | ||||||
