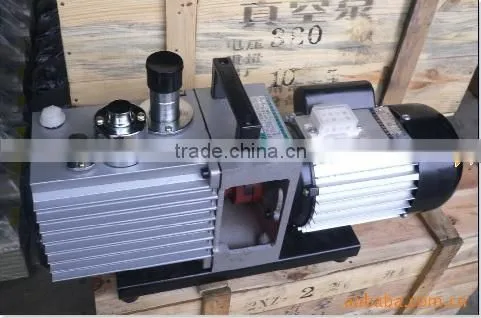

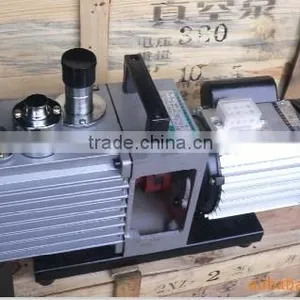

2XZ-8 Mini Rotary Vane Vacuum Pump
Features
1. The 2XZ series rotary vane vacuum pump belongs to two stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.
2. It has the advantages of small size, light weight, low noise, convenient for using and more.
3. The 2XZ series rotary vane vacuum pump can not be used as the compression type delivery pump.
Detailed description
2XZ series rotary vane type vacuum pump can be used independently, which also can be as Booster pump, Diffusion pump, Molecular pump and Titanium Pump's pre-pump. Also used as electronic devices produce, vacuum drying, filtration, welding, metal smelting etc .
Technical data
Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8 | 2XZ-15 | |
Exhausting speed(L/S) | 0.5 | 1 | 2 | 4 | 8 | 15 | |
Ult. vacuum (Pa) | Without gas ballast | ≤6×10-2 | |||||
With gas ballast | ≤6.5 | ≤1.33 | |||||
Rotary speed (r/min) | 1400 | 1410 | 1410 | ||||
Working Voltage (V) | 220 | 220/380 | |||||
Motor power (Kw) | 0.18 | 0.25 | 0.37 | 0.55 | 1.1 | 1.5 | |
Inlet diameter (mm) | Φ16 | Φ16 | Φ25 | Φ25 | Φ40 | Φ40 | |
Temp. rise of pump oil (℃) | ≤40 | ≤45 | ≤65 | ≤70 | |||
Oil capacity (L) | 0.5 | 0.55 | 0.8 | 0.1 | 2.5 | 4.0 | |
Size | L (mm) | 445 | 467 | 488 | 528 | 575 | 703 |
W (mm) | 130 | 130 | 145 | 145 | 172 | 338 | |
H (mm) | 254 | 254 | 280 | 280 | 350 | 453 | |
Weight (kg) (with 3-phase motor) | 13.5 | 15 | 20 | 23 | 48.5 | 77.5 | |
Noise (db) | ≤60 | ||||||
Vibration reference number (u) | ≤80 | ||||||
Keda Machinery and Instrument Equipment Co.,Ltd.Our company sells recycled water vacuum pumps, rotary evaporators,thermostatic magnetic stirrers, glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets.
With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.
