US$ 430 - 620 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ZZKD
Model Number:
2XZ-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian qingdao shanghai lianyungang ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name ZZKD
Model Number 2XZ-4
Theory Vacuum Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Other, electric
Pressure High Pressure
Application Other, vacuum pump

Mini Vacuum Pump

Mini Vacuum Pump

Detailed description

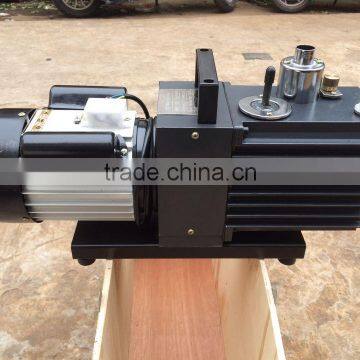

2XZ series rotary vane type vacuum pump can be used independently, which also can be as booster pump, diffusion pump, molecular pump and titanium pump's pre-pump. Also used as electronic devices produce, vacuum drying, filtration, welding, metal smelting, etc .



Features

1. The 2XZ series rotary vane vacuum pump belongs to two stage direct connection structure rotary vane vacuum pump, which can be used for drying, sealing the container and other ancillary pumping air or net vacuum equipments.

2. It has the advantages of small size, light weight, low noise, convenient for using and more.
3. The 2XZ series Rotary Vane Vacuum Pump can not be used as the compression type delivery pump.



Mini Vacuum Pump



Mini Vacuum Pump



Mini Vacuum Pump



Mini Vacuum Pump



Mini Vacuum Pump



Mini Vacuum Pump

Technical parameter

Model

2XZ-0.5

2XZ-1

2XZ-2

2XZ-4

2XZ-8

2XZ-15

Exhausting speed(L/S)

0.5

1

2

4

8

15

Ult. vacuum (Pa)

Without gas ballast

≤6×10-2

With gas ballast

≤6.5

≤1.33

Rotary speed (r/min)

1400

1410

1410

Working Voltage (V)

220

220/380

Motor power (Kw)

0.18

0.25

0.37

0.55

1.1

1.5

Inlet diameter (mm)

Φ16

Φ16

Φ25

Φ25

Φ40

Φ40

Temp. rise of pump oil ()

40

45

65

70

Oil capacity (L)

0.5

0.55

0.8

0.1

2.5

4.0

Size

L (mm)

445

467

488

528

575

703

W (mm)

130

130

145

145

172

338

H (mm)

254

254

280

280

350

453

Weight (kg) (with 3-phase motor)

13.5

15

20

23

48.5

77.5

Noise (db)

60

Vibration reference number (u)

80

Other models

Mini Vacuum Pump

                                                                            Water vacuum pump

Mini Vacuum Pump

                                                        Diaphragm pump



Company Information

Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.
Our company always adheres to the "quality casting brand, professional achieves service"

business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), diaphragm pump, vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.

Mini Vacuum PumpMini Vacuum PumpMini Vacuum Pump

Mini Vacuum Pump

Our Services

Service promise

1. Products quality guarantee is for one year, after the product was sold.

2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.

3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.

Technology service
1. We have a mobile repair service team in our company,  to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.



CE certification

Mini Vacuum Pump

FAQ

1. What's the minimum order quantity?
One set at present.



2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.



3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.



4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.



5. Can you accept OEM terms?
Sure.
