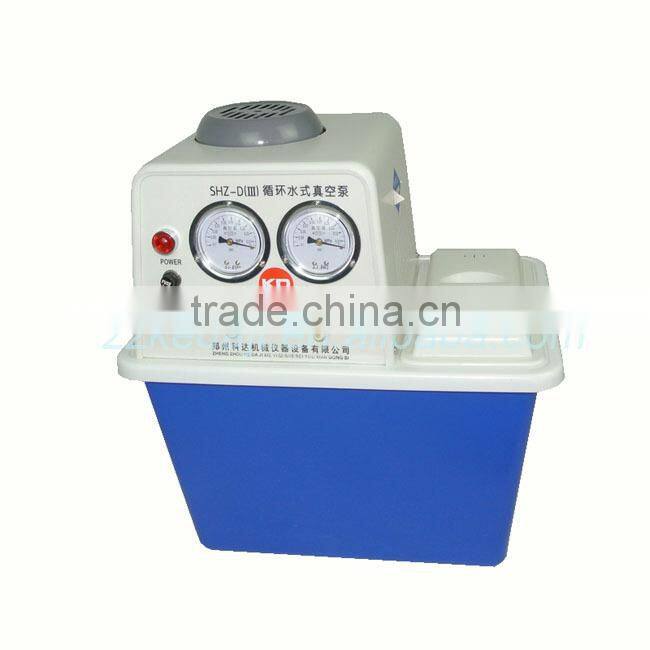

SHZ-D(III) Mini Electric Water Vacuum Pump
Mini electric water vacuum pump
Mini electric water vacuum pump is the device with circulating water as working fluid, and it adopts jet technology to create negative pressure. According to the appearance is divided into desktop type and vertical type ( vertical type has larger capacity relatively). Desktop type also is divided into anti-corrosion type and stainless steel type, according to motor material. Transparent tank vacuum pump is available.
The pump adopts one modeling shell, small size on the basis of multipurpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Doublemeter, doubletap pump and fourmeter fourtap, doubleside multipurpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
Features

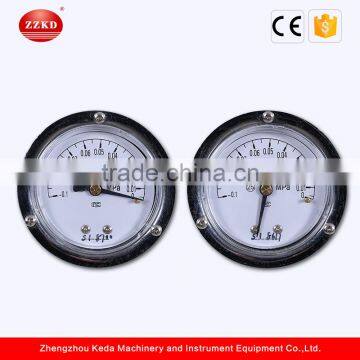

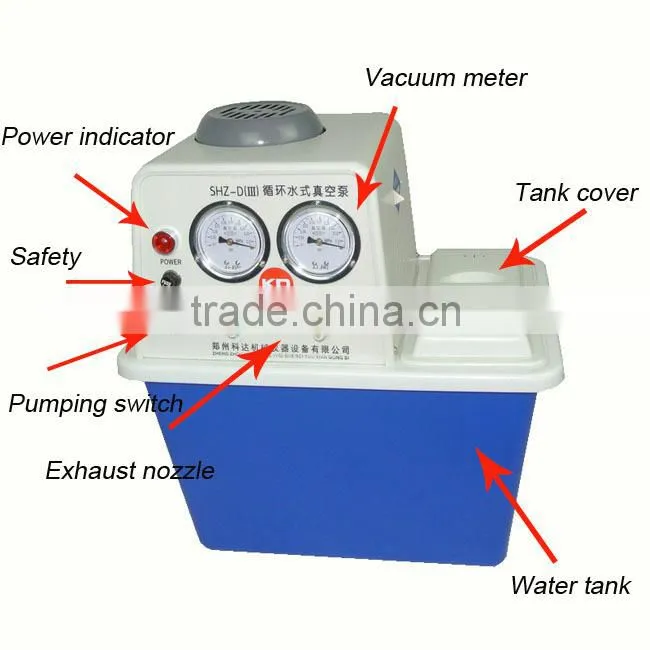

(1) Double taps, two vacuum meters, alone or in parallel.
(2) Newly improved anti-corrosion four taps, with four vacuum meters, alone or in parallel.
(3) Motor material: stainless steel or anti-corrosion material.
(4) Corrosion resistance pump, freepollution, low noise and move easily. Vacuum regulator is available according to customer’s needs.
(5) Accommodate four people for chemical test, reduces the cost, and also saves the space.
(6) To prevent it to work long hours after high temperature, vacuum degree is reduced, specially add ice hole to add ice when water temperature too high vacuum degree reduced.
(7) Reasonable design, compact structure, security encapsulation.
(8) Absorb the harmful gas, environmental friendly, to ensure physical and mental health.
(9) Resistance to acid and alkali solvent
(10) Special customized motor by wellknown manufacturers, fluorine rubber mechanical seal to keep no corrosive gas into the motor.
(11) Water circulation to save precious water resources.
Technical Data
Model | SHZ-D(Ⅲ) | SHZ-D(Ⅲ) four-meter, four tap | Remark | |

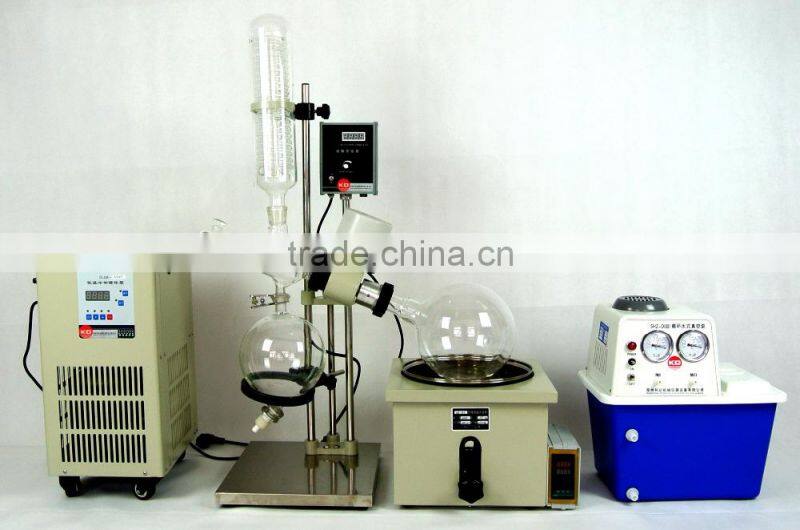

The machine Performance | Power (W) | 180 | 370 | Can equipped with 2L, 5L glass reactor or rotary evaporator. The vacuum is better when the water temperature is between 4℃ and 10℃. |
Voltage (V/Hz) | 220/50 | |||
Flow (L/min) | 60 | |||
Lift (m) | 8 | |||
Body material | Anti-corrosion/1Cr18 | Anti-corrosion | ||
The machine performance | Max. pressure (Mpa) | 0.098 | ||
Sucking rate for single tap(L/min) | 10 | |||
Quantity of tap (Pcs) | 2 | 4 | ||
Tank capacity (L) | 15 | |||
Dimension(mm) | 400*280*420 | |||
Weight(kg) | 15 | |||
Ultimate vacuum (kpa) | 26 | |||
Security performance | Anti~corrosion, counter~current prevent valve | |||
Application
It provides vacuum condition for evaporation, distillation, crystallization, drying, distillation, filtration pressure, vacuum degassing experiments. Especially suitable for colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticides, agricultural engineering, biological engineering etc industries’ scientific research, pilot and production .
