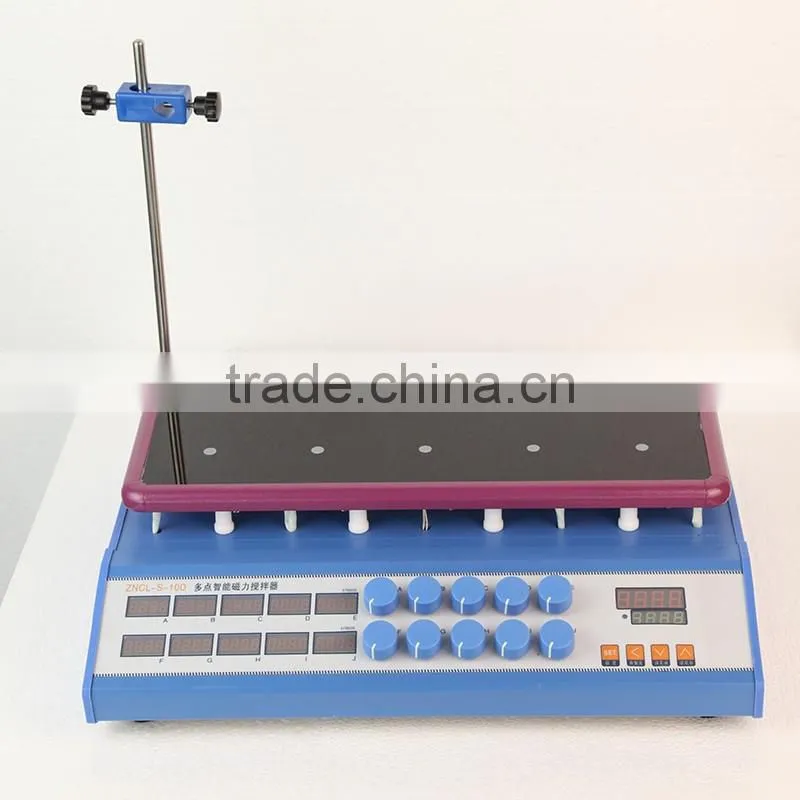

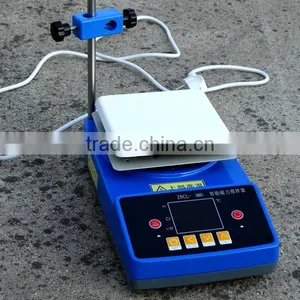

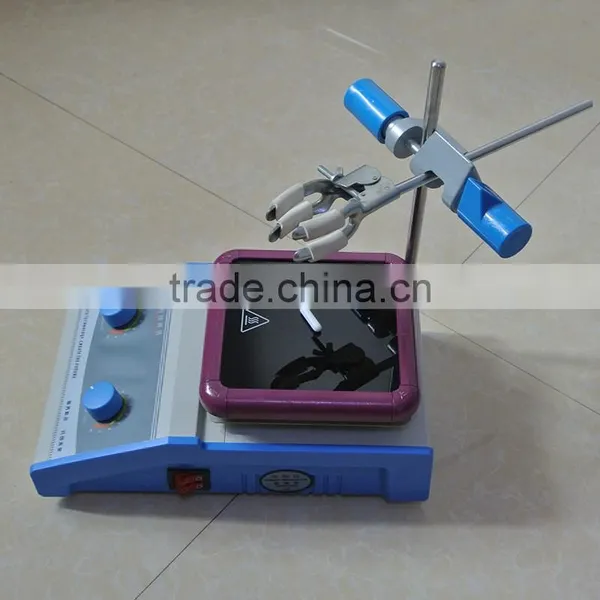

Hotplate Stirrer

Name: Hotplate Stirrer
Brand: ZZKD
SKU: 141525172
Availability: InStock

Zhengzhou Keda Machinery And Instrument Equipment Co., Ltd.

US$ 130 - 360 MOQ: 1 Set

Key Specifications

Brand Name:

ZZKD

Model Number:

ZNCL-BS

Place of Origin:

Henan, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Dalian Tianjin Shanghai Guangzhou Ningbo Shenzhen etc.

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ZZKD

Model Number ZNCL-BS

Place of Origin Henan, China

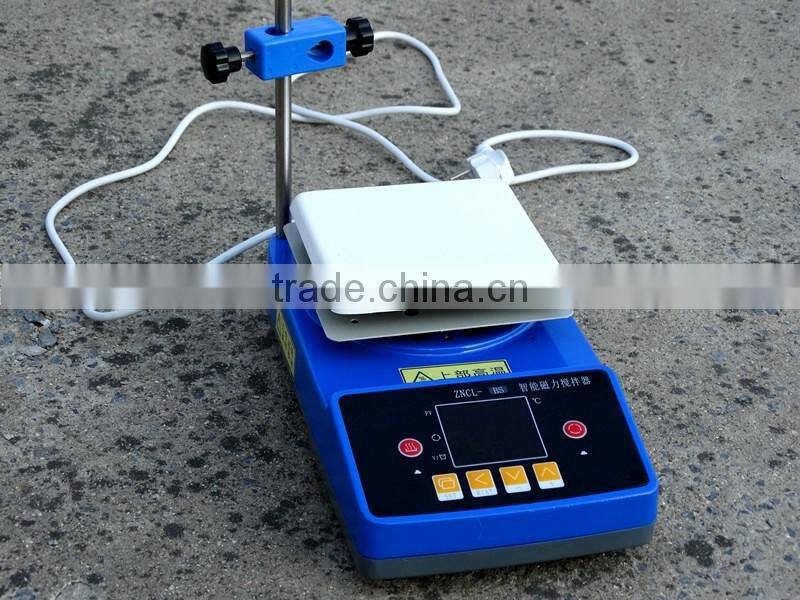

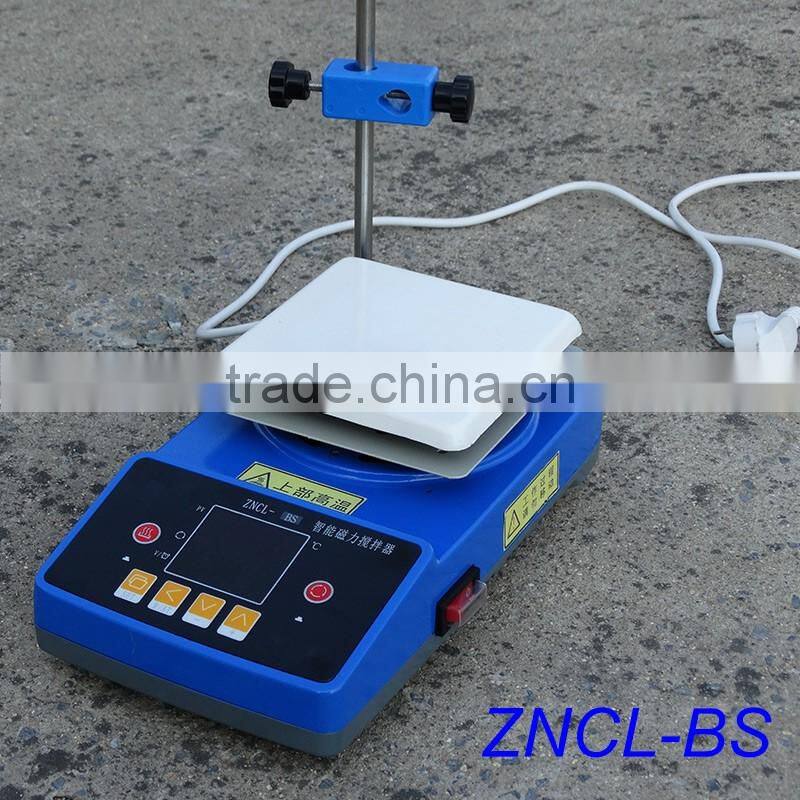

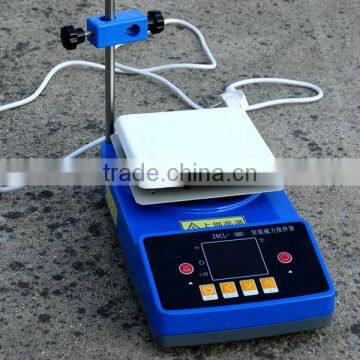

Hotplate Stirrer

Product Description

Features

1. The ZNCL-BS hotplate stirrer use square ceramic, metal surface, corrosion, heat and cold shock, smooth and easy to clean.

2. Using the synthetic crystal heat coat, is 10 times the heating wire.

3. The shell adopts the disposable shaping ABS injection shell, anti-aging, anti-corrosion, good insulation properties.

4. 30 degree incline control panel for the seat and the perspective of stations.

5. Built-in overheating, over-temperature, over-limit multiple automatic protection.

Techinical parameters

Model	ZNCL-BS
Heating plate size (mm)	140*140	180*180	230*230	280*280
Power supply	220v/50hz
Speed range (rpm)	0~2500. Digital speed, stepless speed regulation
Motor power (W)	40W, DC14-24V
Temperature accuracy	±1℃, intelligent digital display, internal and external with sensor, SCR control
Heating temperature	highest surface temperature is 380 ℃
Overtemperature protection	390 ℃ automatic protection
Heating power (W)	350	500	800	1200
Face plate material	Special coating vacuum coating (high temperature resistance, corrosion resistance, resistance to strong acid and alkali, smooth and easy to clean)
Heating, stirring capacity (mm)	50-500 beaker	50-2000 beaker	50-3000 beaker	50-5000 beaker
Overall dimensions	325215120		430270150	500330150
Packing size	315205170	375265170	480320200	550380200
Weight (g)	3200±200	4500±200	6000±200	7500±200
Working time	Continuous
