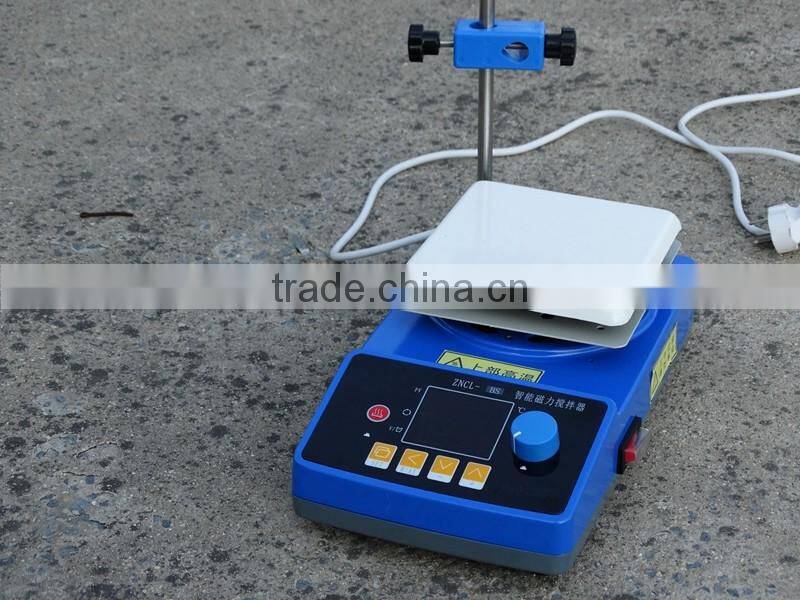

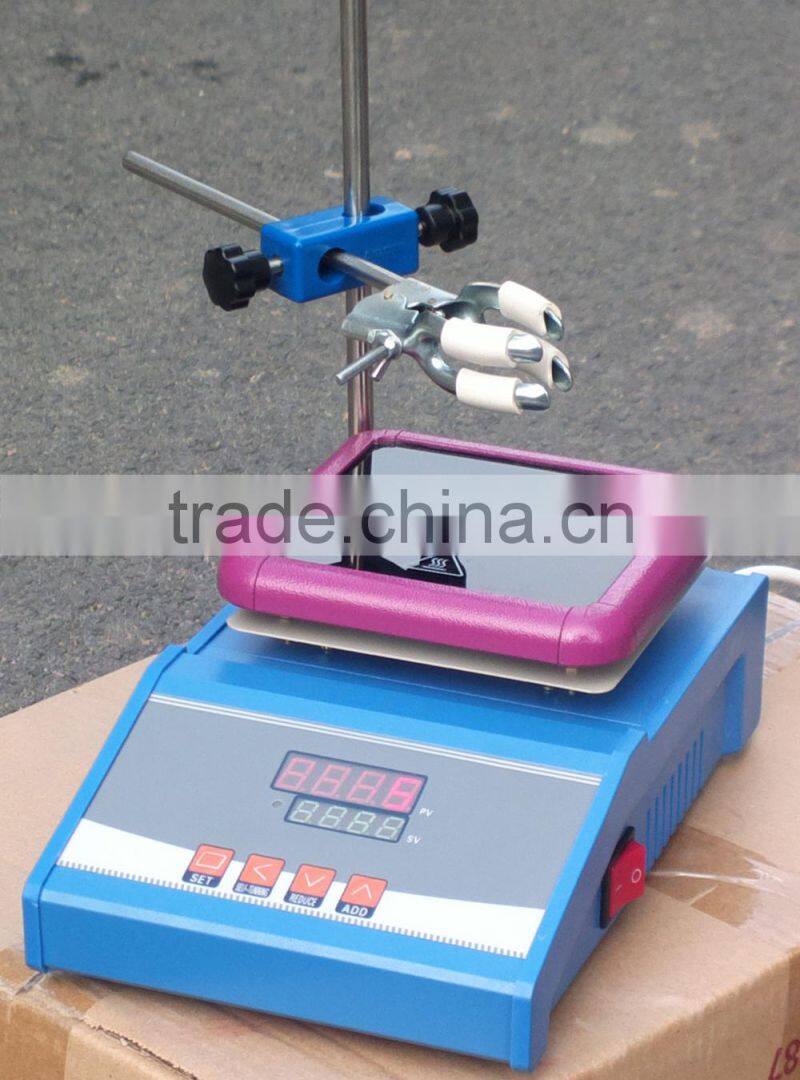

Electric Hot Plate
Features
1. The electric hot plate patented products, adopt square ceramic, Metal surface, Anti~corrosion, Smoothly easy to clean.
2. Take advantage of long life patented synthesis crystal heating coating, heating life is ten times of Heating wire. What’s more, heating temp is stable max to 300°C.
3. Adopt imported PAPST series Brushless DC Motor, Stable performance, Low noisy, Long life, No sparkle
4. No polar adjust speed digital display rotary speed and control line makes the rotary speed steady or big torque
5. Set in constant temp line, temp control accuracy, easy to operate.
6. Inside, outside probe can measure the temp of electric heater and the liquid temp in it.
7. The instrument itself can be Self-protection.
Technical parameter
Model | ZNCL-BS | |||
Heating plate size (mm) | 140*140 | 180*180 | 230*230 | 280*280 |
Power supply | 220v/50hz | |||
Speed range (rpm) | 0~2500. Digital speed, stepless speed regulation | |||
Motor power (W) | 40W, DC14-24V | |||
Temperature accuracy | ±1℃, Intelligent digital display, internal and external with sensor, SCR control | |||
Heating temperature | highest surface temperature is 380 ℃ | |||
Overtemperature protection | 390 ℃ automatic protection | |||
Heating power (W) | 350 | 500 | 800 | 1200 |
Face plate material | Special coating vacuum coating (high temperature resistance, corrosion resistance, resistance to strong acid and alkali, smooth and easy to clean) | |||
Heating, stirring capacity (mm) | 50-500 beaker | 50-2000 beaker | 50-3000 beaker | 50-5000 beaker |
Overall dimensions | 325*215*120 | 430*270*150 | 500*330*150 | |
Packing size | 315*205*170 | 375*265*170 | 480*320*200 | 550*380*200 |
Weight (g) | 3200±200 | 4500±200 | 6000±200 | 7500±200 |
Working time | Continuous | |||

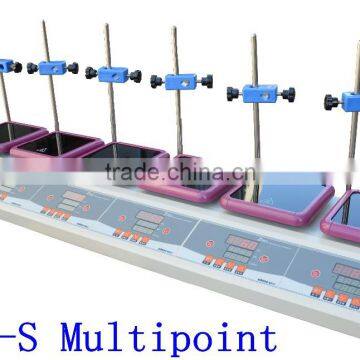

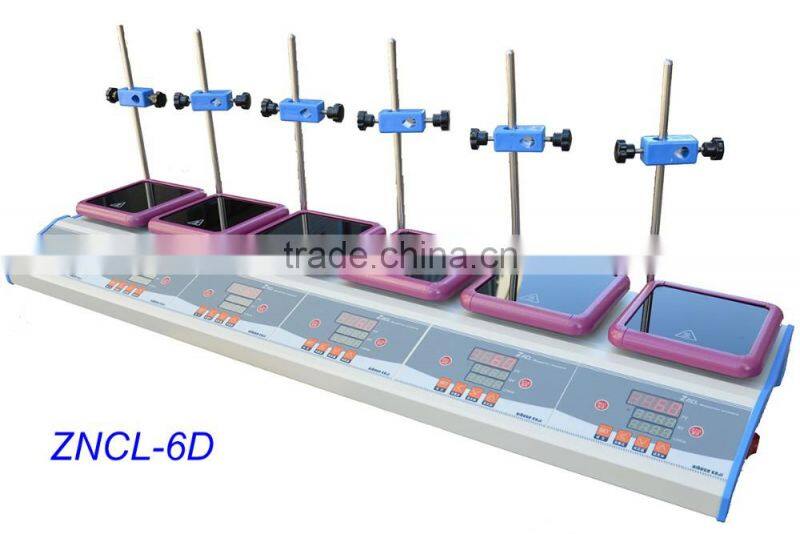

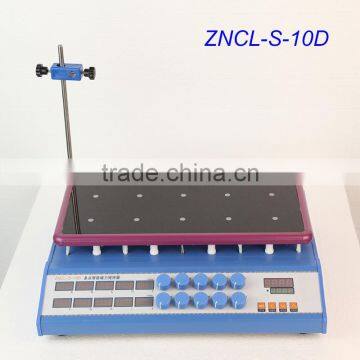

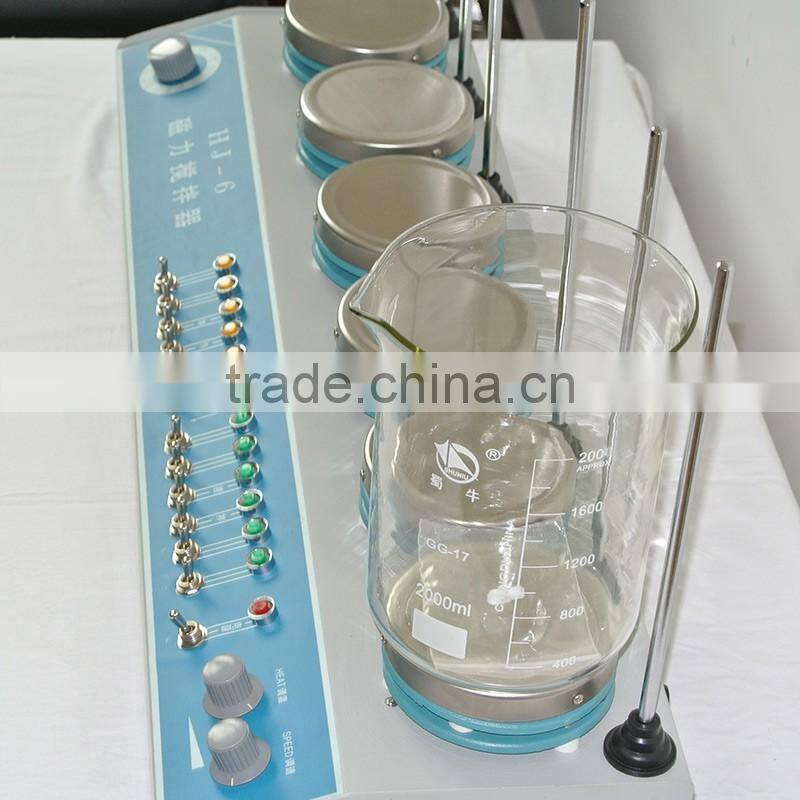

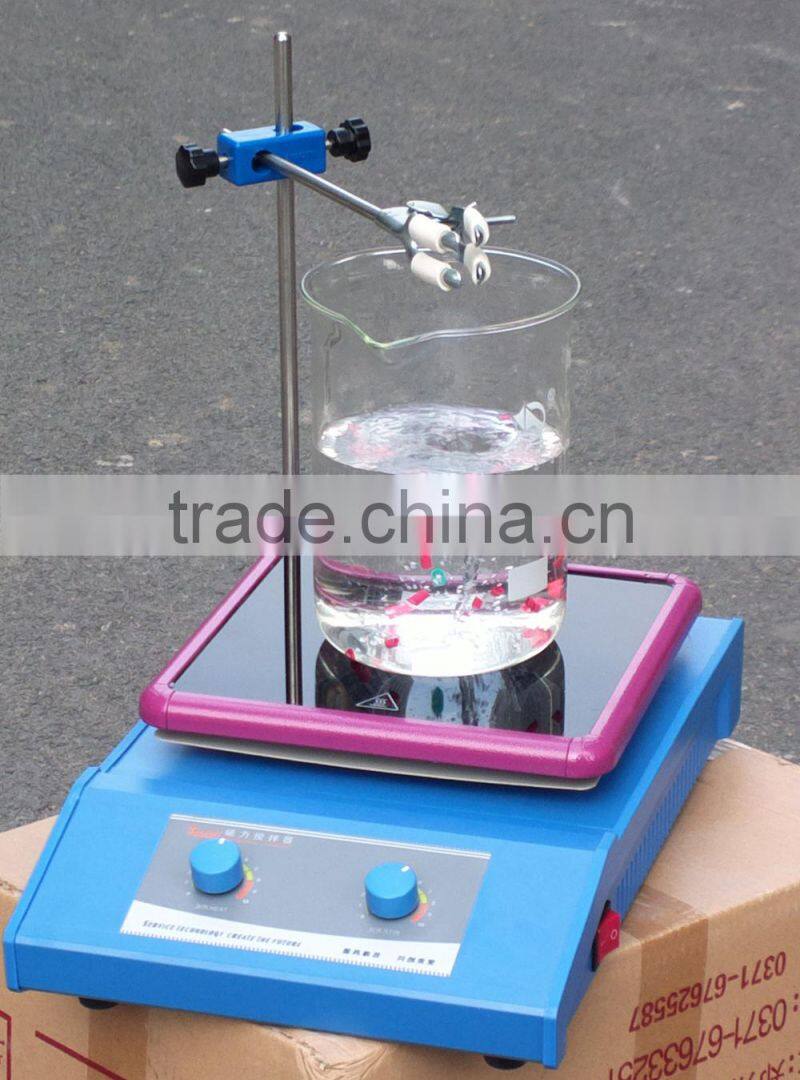

Photos
Products quality guarantee is for one year, after the product was sold.
In the warranty period, the users operate according to instruction and meet problems and our company maintains free of charge.
Beyond the warranty period, products problems can also be solved by my company maintenance,
but charge wiring components fees properly.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
