KD Heating and Cooling Machine for Laboratory
Function
1. An innovate design on the base of low temp cooling liquid circulating pump and high pressure oil bath
2. Widely used Colleges and universities, environmental protection, biochemical, medical, chemical industry, scientific research, etc.
Feature
1. New device owning Low temp instrument and high temp device to itself.
Under the market research and careful development, our company finishes the products
2. Adopt international original famous sealing compressor, reliable quality, and advanced performance.
3. Refrigeration compressors and other key parts take advantage of products with high quality machines and have high reliability and efficiency
4. Heating device is anti~pressure stainless steel capacity, can be anti~corrosion, rust, protect low & high temp liquid pollution .
5. Digital display, clearly, operate easily.
6. Multi-function(cooling,heating,circulating), reasonable power, save lab space.

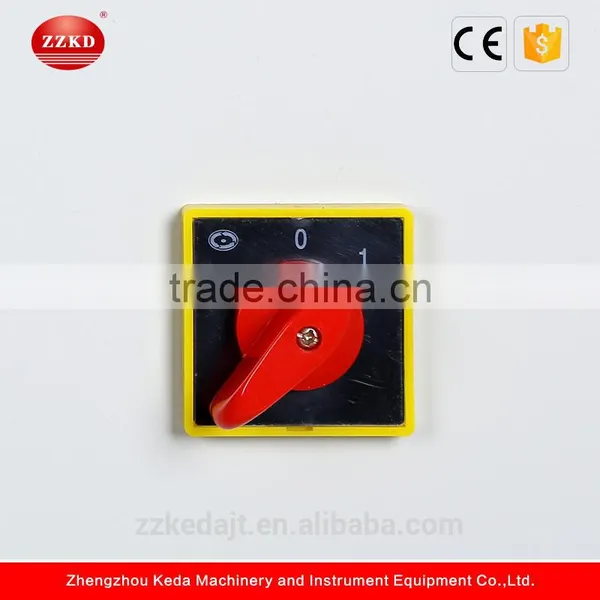

7. High temp control use air switch press, solid relay, efficient and intelligent instrument, so startand operate is no sparkle, safely. Also it has Delay, overheating, overvoltage etc many protection function.
Technical parameter
Model | GDSC-1005 | GDSC-1010 | GDSC-2010 | GDSC-2020 | GDSC-2030 | GDSC-2050 | GDSC-20100 |
Suitable for reactor volume (L) | 1L-5L | 2L-10L | 2L-10L | 10L-20L | 30L | 30L-50L | 80L-100L |
Cycle way | - 10℃-200℃ | -20℃-200℃ | |||||
Display accuracy | 0.1℃ | ||||||
Cooling capacity (W) | 500-1500 | 680-1800 | 680-1800 | 1800-3800 | 1800-4300 | 2300-5800 | 4300-17800 |
Heating power (KW) | 3 | 6 | 9 | ||||
Lift (m) | 8--12 | 25 | 6--8 | 8--12 | |||
Flow (L/Min) | 25-30 | 18 | 35 | 30 | |||
Temperature control form | Microcomputer digital control | ||||||
Safety protection | Have delay , leakage, over current, overheating production | ||||||
Refrigeration components | Fully enclosed Compressors | ||||||
Circulation pump | Fully enclosed special pump without leakage | ||||||
Total power (W) | 4000 | 8200 | 8400 | 9000 | 10500 | ||
Supply voltages | 220V/50HZ | 380V/50HZ | |||||
The heating machine will be packed in wooden cases or as your request.
Sipment:by sea,air or as your desire!
Products quality guarantee is for one year,after the product was sold.
In the warranty period, the users operate according to instruction and meet problems,
and our company maintains free of charge.
Beyond the warranty period, products problems can also be solved by my company maintenance,but charge wiring components fees properly.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.
The company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulation pump(cool chiller), vacuum drying oven, blast air drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation.
1.What's the minimum order quantity?
One set at present
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case
5.Can you accept OEM terms?
Sure.
