Heating & Refrigerated Circulators
Function
1. An innovate design on the base of low temp cooling liquid circulating pump and high pressure oil bath
2. Widely used Colleges and universities, environmental protection, biochemical, medical, chemical industry, scientific research, etc.
Features
1. New device owning Low temp instrument and high temp device to itself. Under the market research and careful development, our company finishes the products.
2. Adopt international original famous sealing compressor, reliable quality, and advanced performance.
3. Refrigeration compressors and other key parts take advantage of products with high quality machines and have high reliability and efficiency.
4. Heating device is anti~pressure stainless steel capacity ,can be anti~corrosion, rust, protect low & high temp liquid pollution .

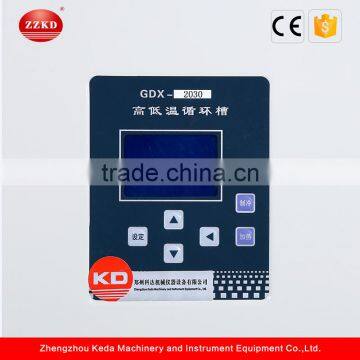

5. Digital display, clearly, operate easily
6. Multi-function(cooling,heating,circulating), reasonable power, save lab space
7. High temp control use air switch press, solid relay, efficient and intelligent instrument, so start and operate is no sparkle, safely. Also it has Delay, overheating, overvoltage etc many protection function.
Technical Data
Model | GDSC- 1005 | GDSC- 1010 | GDSC- 2010 | GDSC- 2020 | GDSC- 2030 | GDSC- 2050 | GDSC-20100 |
Suitable for reactor volume (L) | 1L-5L | 2L-10L | 2L-10L | 10L-20L | 30L | 30L-50L | 80L-100L |
Cycle way | - 10℃-200℃ | -20℃-200℃ | |||||
Display accuracy | 0.1℃ | ||||||
Cooling capacity (W) | 500-1500 | 680-1800 | 680-1800 | 1800-3800 | 1800-4300 | 2300-5800 | 4300-17800 |
Heating power (kW) | 3 | 6 | 9 | ||||
Lift (m) | 8--12 | 25 | 6--8 | 8--12 | |||
Flow (L/Min) | 25-30 | 18 | 35 | 30 | |||
Temperature control form | Microcomputer digital control | ||||||
Safety protection | Have delay, leakage, over current, overheating production | ||||||
Refrigeration components | Fully enclosed Compressors | ||||||
Circulation pump | Fully enclosed special pump without leakage | ||||||
Total power (W) | 4000 | 8200 | 8400 | 9000 | 10500 | ||
Supply voltages | 220V/50HZ | 380V/50HZ | |||||
Ancillary equipment
Good packaging, to ensure the goods can be in good condition during transportation;
Efficient transport, let the goods sent to your hands in the shortest time.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd. established in 1981, is a famous manufacturer of Lab equipment located in the central China.The main products include glass reactor, water circulating vacuum pump, freeze drying machine, rotary evaporator, low temp., cooling liquid circulating pump and soon.
Our company has become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, theUS, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on earning wide recognition among the users.
Though our foreign trade is not for long, we do have a history of more than 30 years ofour domestic trade. To assure the good quality & good service is our consistent aim.
