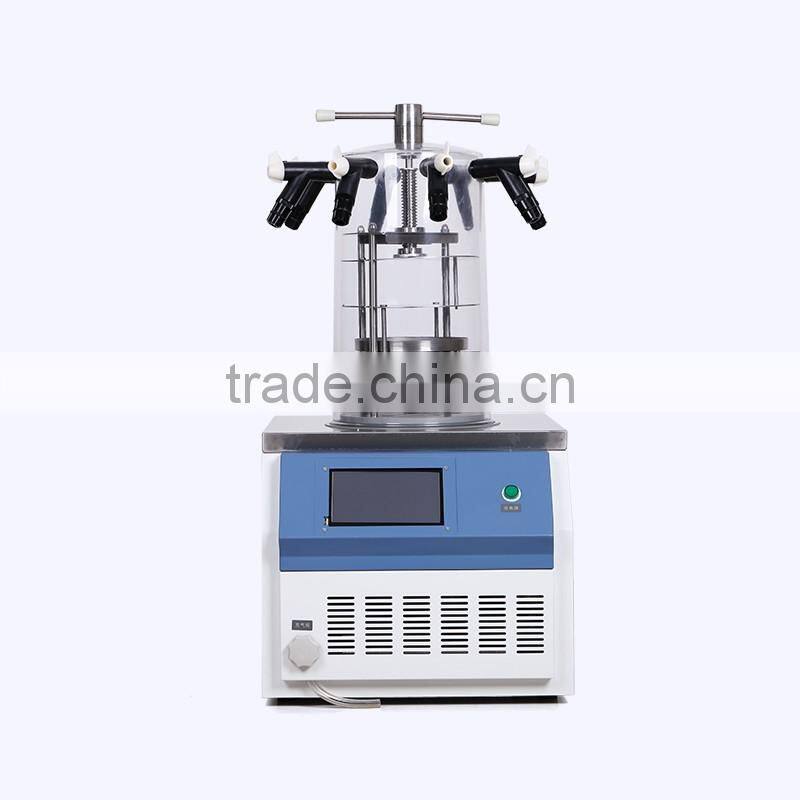

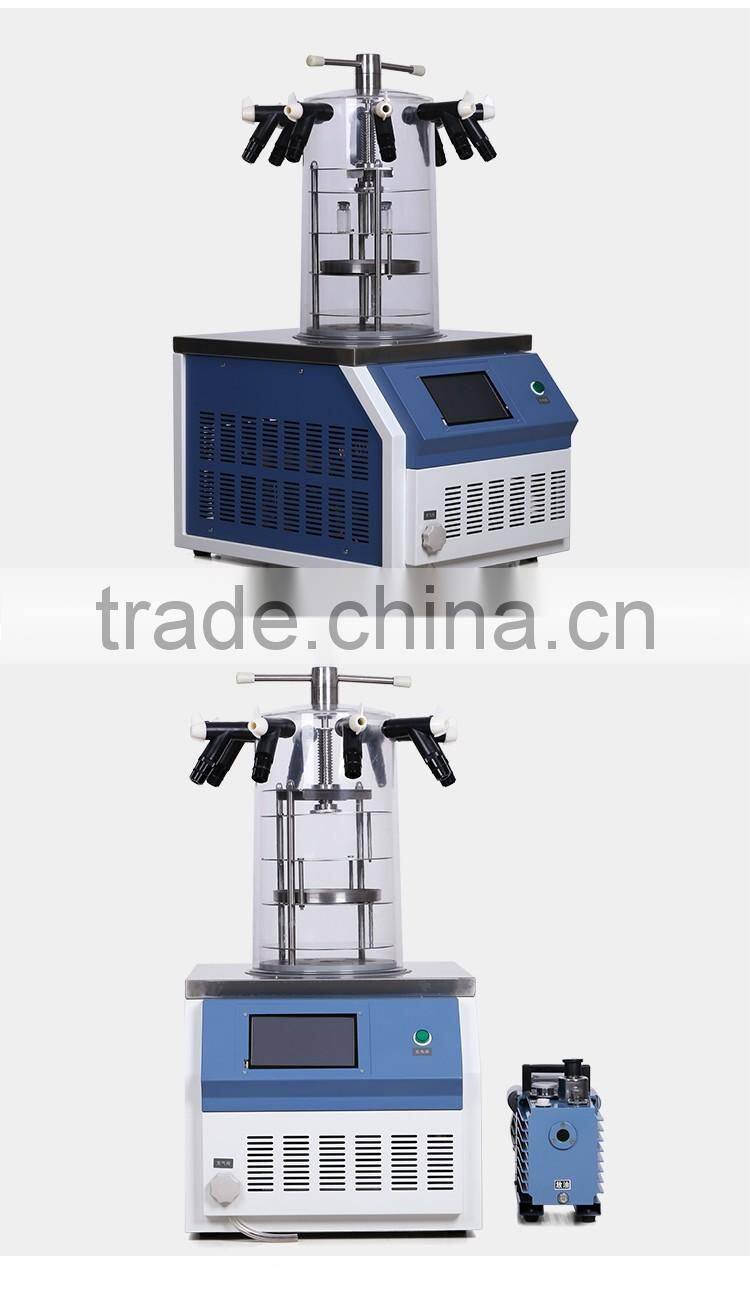

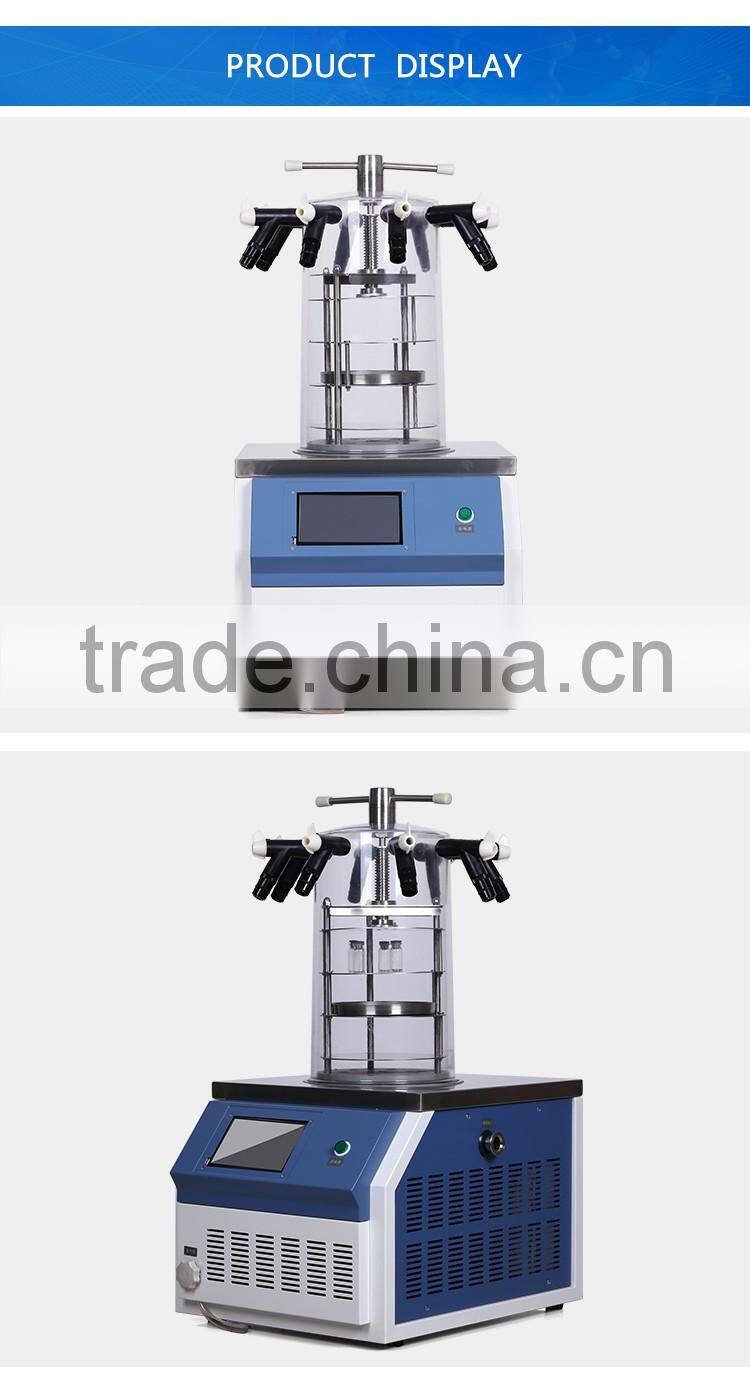

Laboratory Freeze Dry Machine
Description
1. Freeze-drying machine applies a technical method by which moisture-bearing samples frozen in advance become dry in the vacuum owing to vaporizing away the moisture.
2. The samples frozen can be well-storage for a long time and returned to their former state once being watered without losing their original biochemical properties.
3. The freeze drying technology is especially ideal for those bio-products sensitive to antibiotic, vaccines, blood products, enzymesand hormones.
4. This machine is also suitable for sample freezing experimentsin labs and small-scale production
5. The Series can be divided into four type: Ordinary, Top-Press, Ordinary Multi-Pipeline, Top-Press Multi-Pipeline, T-Frame, with Pre-Freeze Function.
Features
1. Desktop design, compact, taking up a small table.

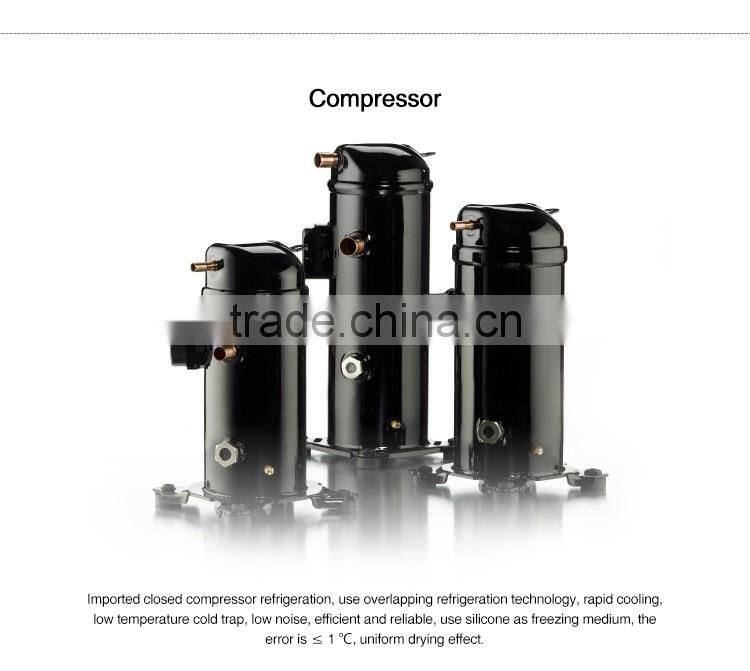

2. Imported closed compressor, high reliability, low noise.
3. Cold trap made of stainless steel.
4. Patented design draft tube , quick drying.

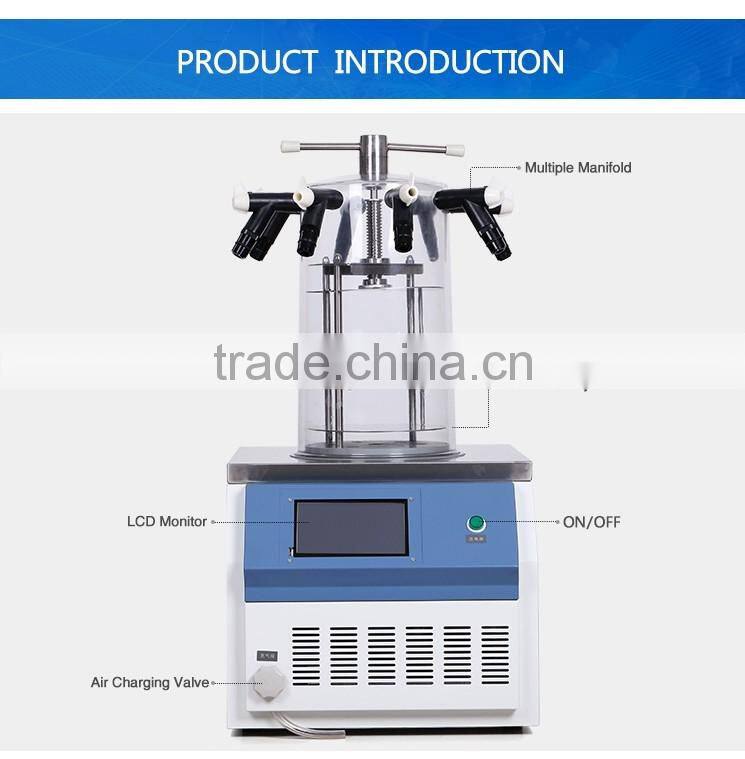

5. Well inflation valve, rechargeable dry nitrogen or inert gas.

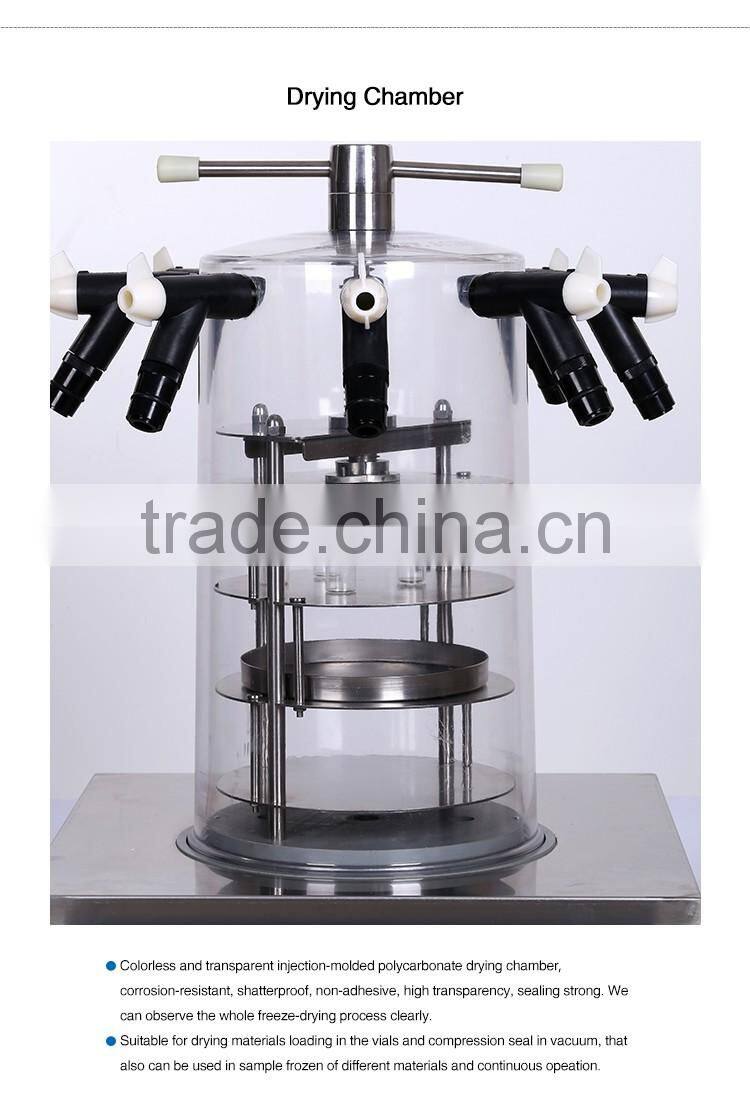

6. Transparent bell drying room, secure and intuitive.
7. Stainless steel sample holder, adjustable sample tray spacing.
8. Combined with a variety of vacuum pumps.
9. Digital display of temperature and vacuum.
10. Sample temperature display (optional).
Technical data
10ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature (℃) | <-56 | |||
Freeze Area (m2) | 0.12 | 0.076 | 0.12 | 0.076 |
Plate Load Capacity (L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water (Kg) | 3 | |||
Vacuum Degree (Pa) | <10 | |||
Machine Dimension (W*D*H) mm | 450*580*(380+450) | |||
Sample Tray Size (mm) | 4*Φ200 | Ø 3*180 | 4*Φ200 | Ø 3*180 |
Power(w) | 950 | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Inter~layer spacing | 70 mm | |||
Cold trap size(mm) | Ø215*160 | |||
The number of schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 90KG/ 105KG | 95KG/110KG | 105KG/120KG | 110KG/125KG |
Product details
Packaging
-Wooden case or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.
Business Type: Manufacturer, Trading Company.
Location: Henan, China (Mainland).
Year Established: 2009.
Total Revenue : US$1 Million - US$2.5 Million.
Registration No: 410105000067362.
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
