Home > Products > Freeze Dryer > KD-18N Freeze Dryer

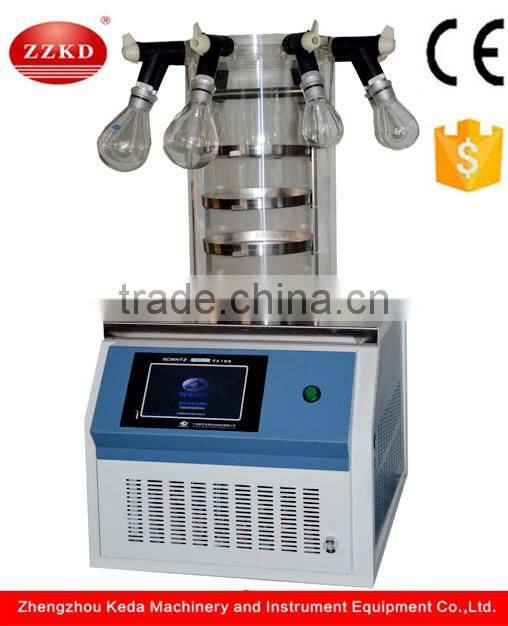

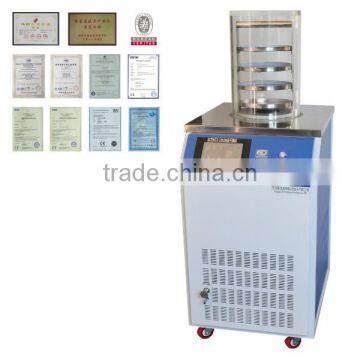

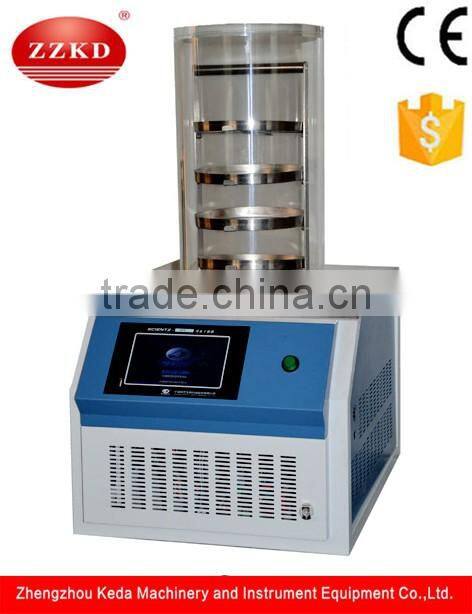

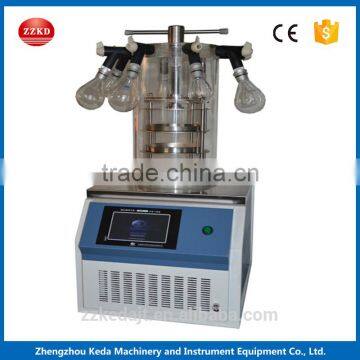

KD-18N Freeze Dryer
- 500 Set / Sets per Month
- Shanghai/Shenzhen/Dalian/Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Freeze Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | ZZKD | Model Number: | KD-18N | Voltage: | 220V/50HZ |
Power(W): | 1.3kw | Dimension(L*W*H): | W670*D530*H800 mm | Weight: | . |
Certification: | CQC | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Freeze Dryer Description: good quality
Freeze Dryer is the watery element in advance to freeze, then lifted its moisture content under the vacuum state and obtain a technical method of dry goods, freeze-dried article easy to long-term preservation, after adding water can be recovered to form and maintain the original form of biochemical characteristics. For heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme, hormone and other biological products, the freeze-drying technology can display its superiority, more suitable for laboratory the freeze-drying experiment and a small amount of production of the sample.

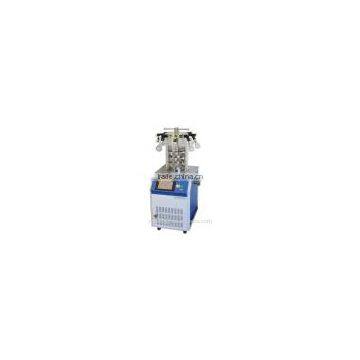

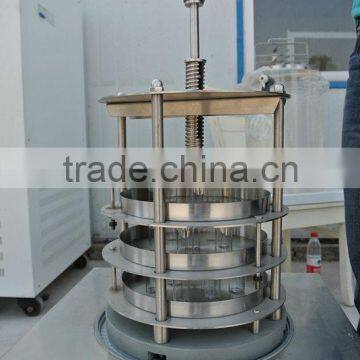

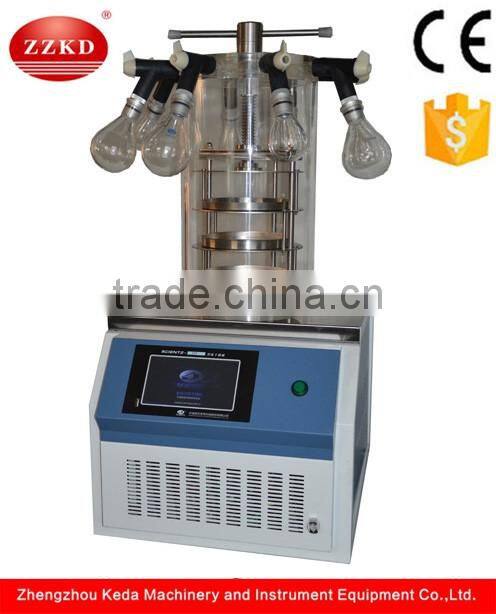

Freeze dryer is divided into four kinds: normal type freeze dryer , gland type freeze dryer, manifold type freeze dryer, manifold pressure cap type freeze dryer, with the function of precool.
Freeze Dryer Features:
( 1 ) The freeze dryer machine adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap .
( 2 ) 7- inch TFT LCD touch screen control system , easy to operate , and powerful .
( 3 ) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data .
( 4 ) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying process clear.
( 5 ) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .
( 6 ) connected to a vacuum pump and a host of international standards KF quick connector , simple and reliable.
( 7 ) The machine can store multiple freeze-drying curve, and extracted with U-disk data to a computer, use the PC software to view and print a variety of options in the computer.
( 8 ) configuration inflation valve , rechargeable dry inert gas ;
Technical Parameters :
kd-18N Freeze Dryer Notice:
Standard equipment : main engine + Drying chamber + Anti-back oil domestic vacuum pump + 7-inch color touch screen with a USB + Nitrogen inflation valve.
Optional features:
A: Eutectic point testing.
B: Control the vacuum , the heat conduction is maximized,
C: Dual cascade refrigeration system , mature technology , low temperature, -80 °C for lyophilizer ; .
D: Wide-mouth bottle configuration manifold lyophilized , easy to install take materials , supporting connection with the import of the standard freeze-dried cylinders . Standard 6 just .
Package : Standard export packing or as your customized
Shipping : 7-15 working day after received payment.
Quality Certification:
