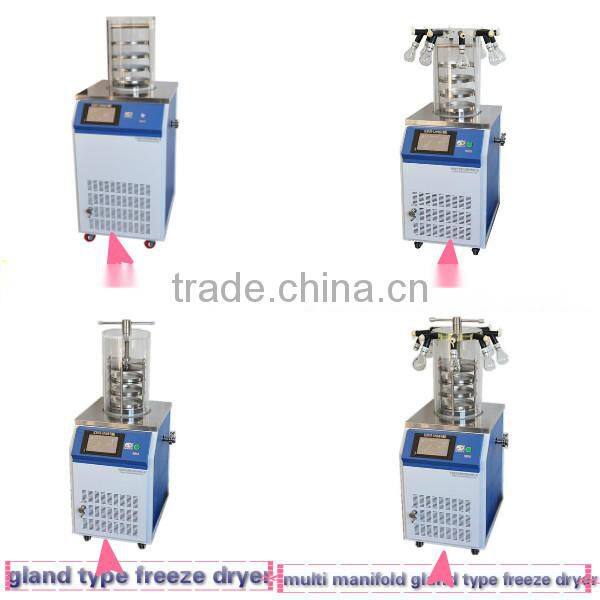

Newest Lab Vacuum Lyophiliter

FOB Price

US$ 1 - 1,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tray Dryer
Place of Origin	Henan, China	Brand Name	KD
Model Number	KD-1	Voltage	220V
Power(W)	800V	Dimension(LWH)	550550300mm
Weight	18KG	Certification	ISO or As required
Warranty	One year	After-sales Service Provided	Engineers available to service machinery overseas

Newest Lab Vacuum Lyophiliter

1.Techeniacal Data:

Condense temperature	<-50°C
Vacuum degree	<20pa
Frozen-drying area	0.07~0.12
Panel materials	0.7~1.2L
Water catching capabilities	3kg/24h
Drying time	About 24 hours (material thickness 10mm)
Sample dish	General types:a diameter of 200mm,4layers.
Sample dish	Gland type: a diameter of 180mm,total 3 layer
Power requirement	220V 50HZ 800W
Main engine size	550×550×300(mm)

2.Specifications:

1.Desktop design, compact, taking up a small table.

2.Imported closed compressor, high reliability, low noise.

3.Cold trap made of stainless steel.

4.Patented design draft tube , quick drying.

5.Well inflation valve, rechargeable dry nitrogen or inert gas.

6.Transparent bell drying room, secure and intuitive.

7.Stainless steel sample holder, adjustable sample tray spacing.

8.Combined with a variety of vacuum pumps.

9.Digital display of temperature and vacuum.

10.Sample temperature display (optional).

Packaging & Shipping

1.Packaging: Wooden case packaging or As required.

2.Shipping: By ship, By air, By express or As required.
