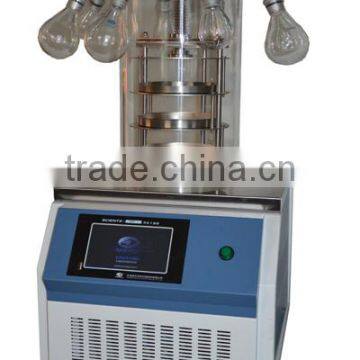

Large Capacity Freeze Drying Machine
Characteristics
1. Accord with international standards of Green environmental friendly; 7" True~color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
2. U disk Can storage lyophilized data;
3. Upload software can print curve;
4. Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
5. Large opening trap, no coil inside, with samples pre-freeze function;
6. Imported refrigeration compressor, low noise;
7. Stainless steel sample holder, common sample plate spacing adjustable;
8. Small size and easy to operate.
Technical Data
10ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature (℃) | <-56 | |||
Freeze Area (m2) | 0.12 | 0.076 | 0.12 | 0.076 |
Plate Load Capacity(L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water(Kg) | 3 | |||
Vacuum Degree(Pa) | <10 | |||
Machine Dimension (W*D*H) mm | 450*580*(380+450) | |||
Sample Tray Size (mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power(w) | 950 | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Inter~layer spacing | 70 mm | |||
Cold trap size(mm) | Ø215×160 | |||
The number of Schering bottles
| Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N. W./ G. W | 90KG/ 105KG | 95KG/110KG | 105KG/120KG | 110KG/125KG |
Our products
Application
The drying machine is widely used, can dry all kinds of things
Other types freeze drying machine
We have the most convenient and efficient transport partners, to ensure that your goods sent to your hands in the shortest time, besides, good packing, to ensure your goods excellent without damage.
Perfect service system, mainly in four aspects
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.
Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of china's scientific research.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, short path distillation, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, microwave chemical reactor, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company.
Location: Henan, China (Mainland).
Year Established: 2009.
Total Revenue : US$1 Million - US$2.5 Million.
Registration No: 410105000067362.
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
