Freeze Drying Machine for Pharmaceutical
Characteristics
1. Accord with international standards of green environmental friendly;

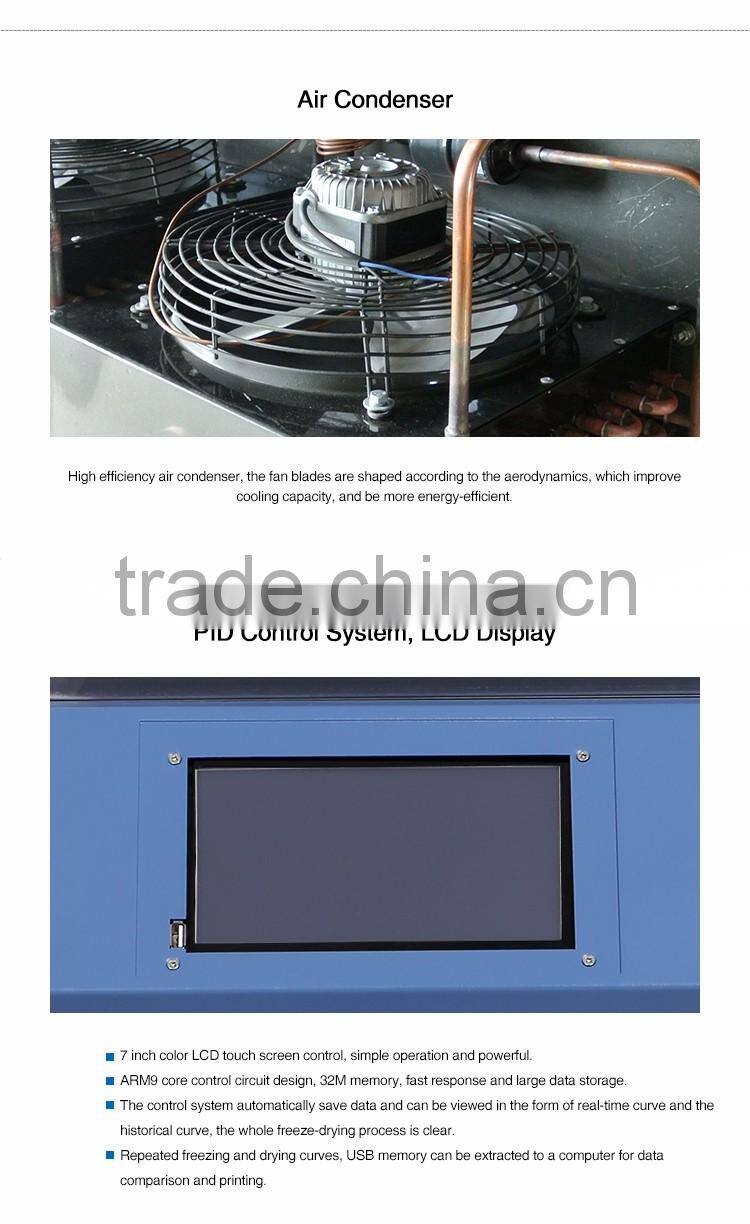

7" True~color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
2. U disk Can storage lyophilized data;
3. Upload software can print curve;
4. Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
5. Large opening trap, no coil inside, with samples pre-freeze function;

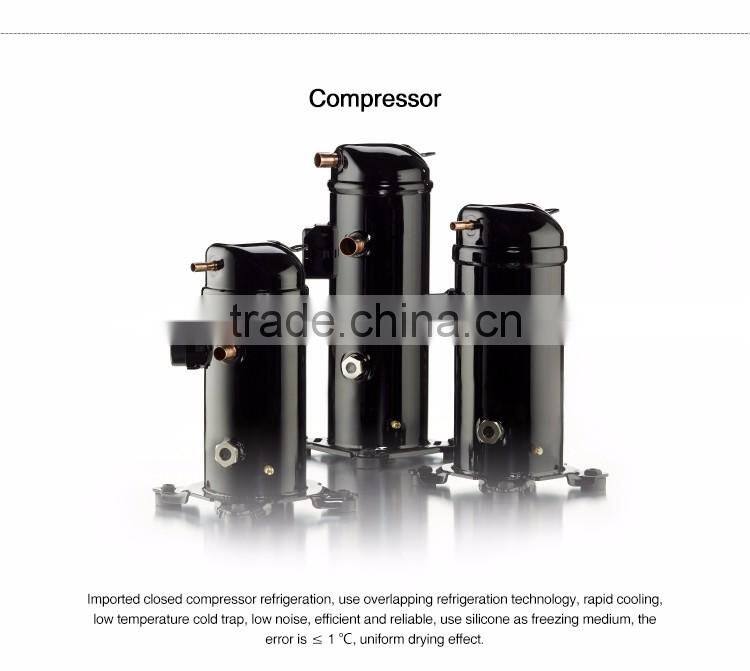

6. Imported refrigeration compressor, low noise;
7. Stainless steel sample holder, common sample plate spacing adjustable;
8. Small size and easy to operate.
Technical parameter
10N Freeze Drying Machine for Pharmaceutical | ||||
10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃ | |||
Freeze Area(m2) | 0.12 | 0.08 | 0.12 | 0.08 |
Plate Load Capacity (L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water (Kg) | 3 | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*H*D) mm | 450*580*(380+450)
| |||
Sample Tray Size (mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power(w) | 950 | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Interlayer spacing (mm) | 70
| |||
Cold trap size (mm) | Ø215×160 | |||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 80KG/95KG | 85KG/100KG | 95KG/110KG | 100KG/115KG |
Application

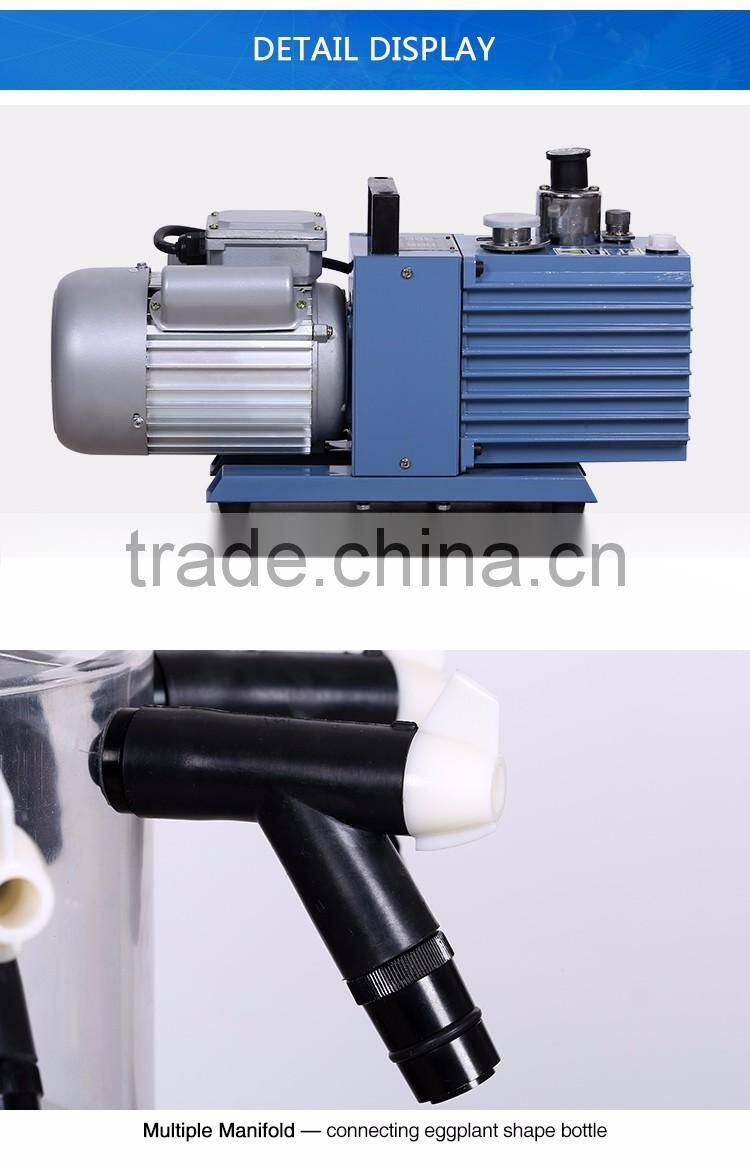

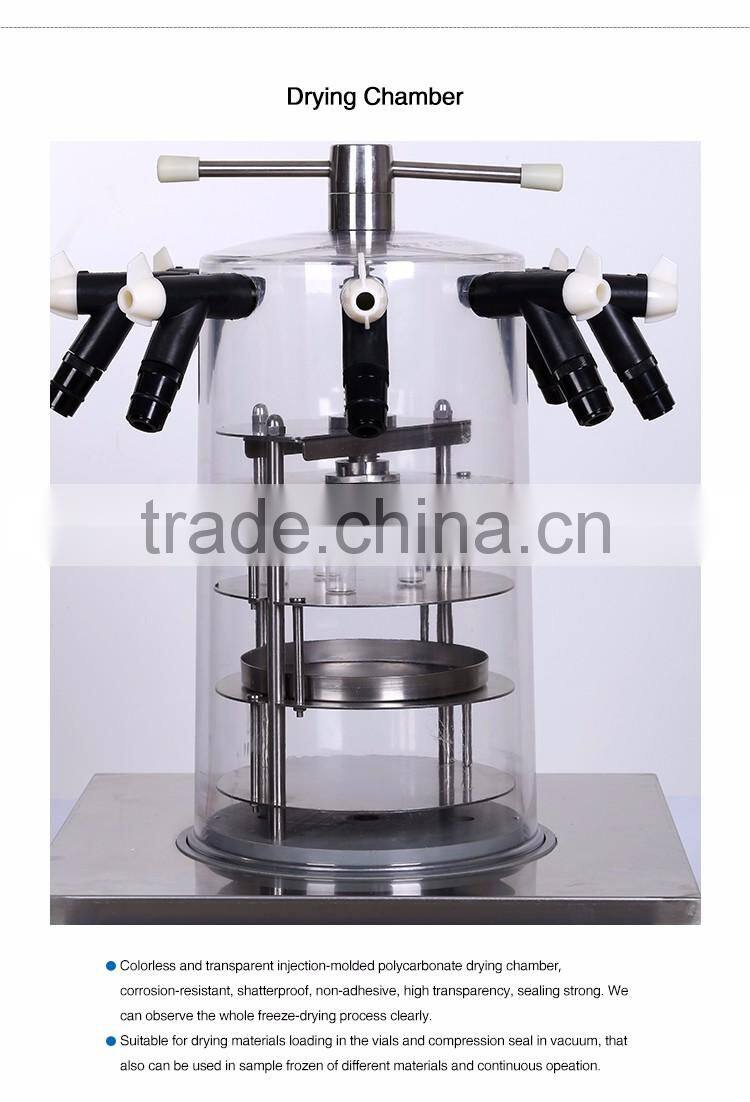

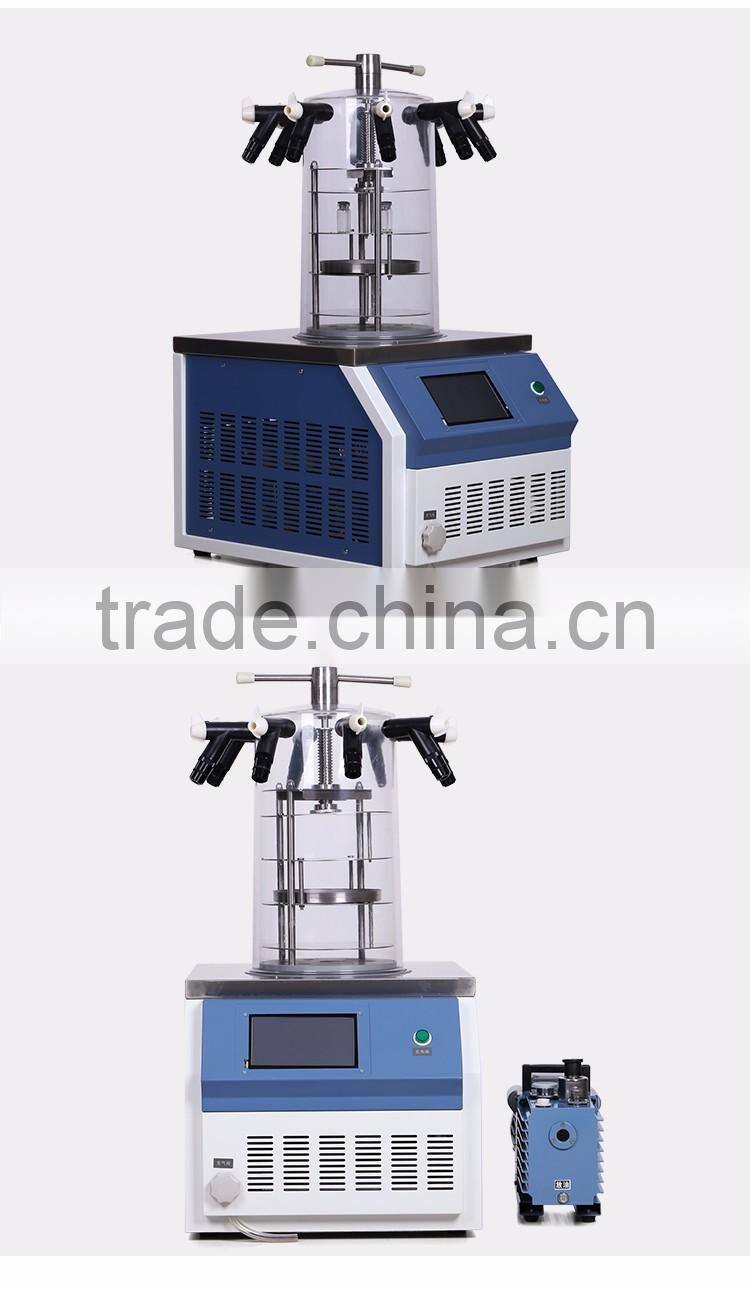

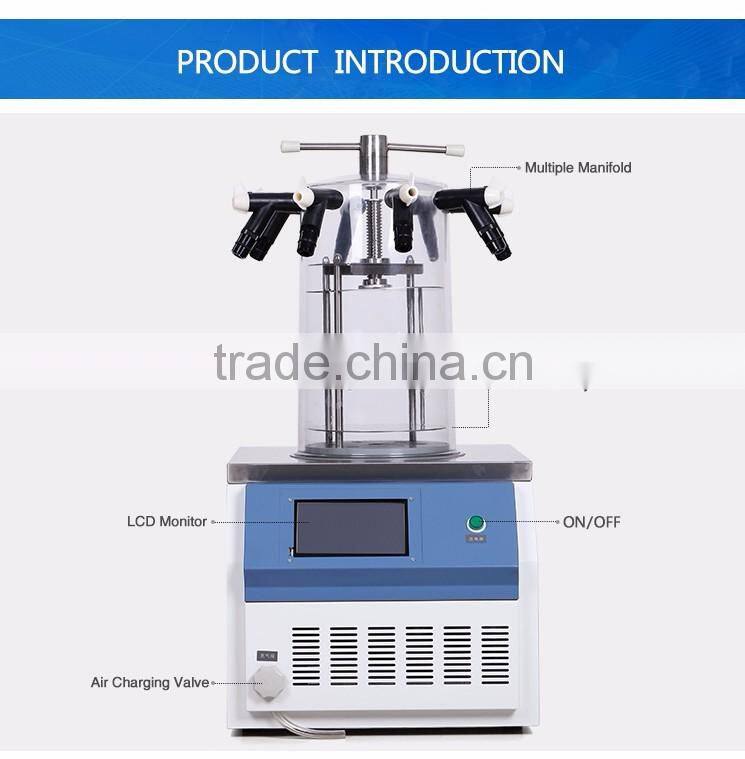

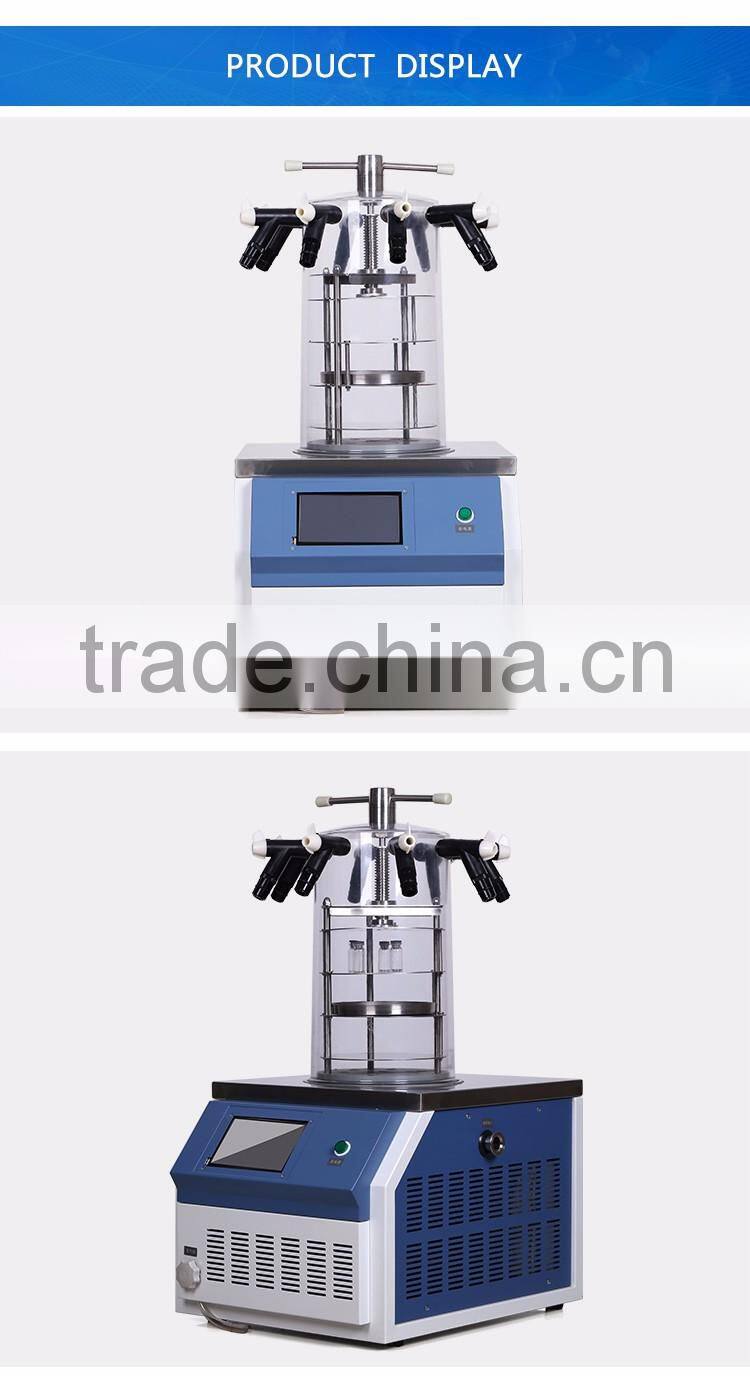

Main pictures
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
zhengzhou Keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China.The main products include glass reactor, water circulating vacuum pump, freeze drying machine, rotary evaporator, low temp. cooling liquid circulating pump and so on.
Our company has become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, theUS, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India,Singapore, Malaysia and so on earning wide recognition among the users.
Though our foreign trade is not for long, we do have a history of more than 30 years ofour domestic trade. To assure the good quality & good service is our consistent aim.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
