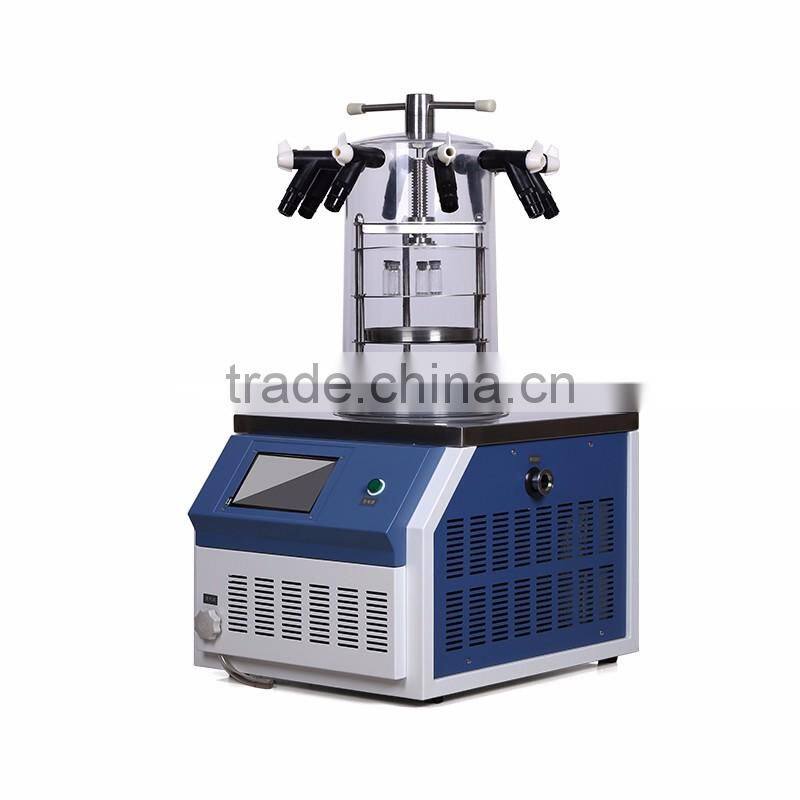

ZZKD Factory Price Vacuum Freeze Dryer Freeze Drying Equipment
Technical parameter
18ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No~load Temperature (℃) | <-56 | |||
Freeze Area | 0.18 m² | 0.09 m² | 0.18 m² | 0.09 m² |
Plate Load Capacity | 2 L | 1 L | 2 L | 1 L |
Ability to Capture Water | 6Kg | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*D*H) mm | 700*560*(960+450) | |||
Sample Tray Size (mm) | 4×Φ240 | Ø 3×200 | 4×Φ240 | Ø 3×200 |
Power (W) | 1300 | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Interlayer spacing (mm) | 70 | |||
Cold trap size(mm) | Ø270*410 | |||
The number of Schering bottles | Ø22: 360 | Ø22: 270 | Ø22: 360 | Ø22: 270 |
Ø16: 740 | Ø16: 560 | Ø16: 740 | Ø16: 560 | |
Ø12: 1320 | Ø12: 990 | Ø12: 1320 | Ø12: 990 | |
N.W./ G.W (kg) | 130/145 | 135/150 | 145/160 | 150/165 |
Product details

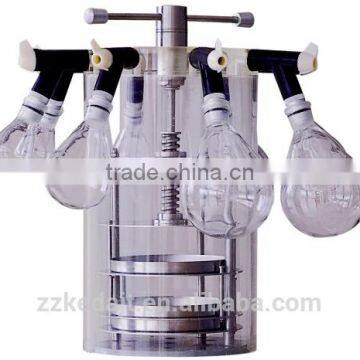

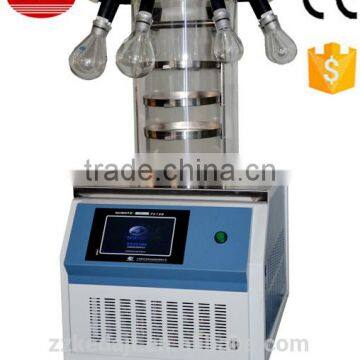

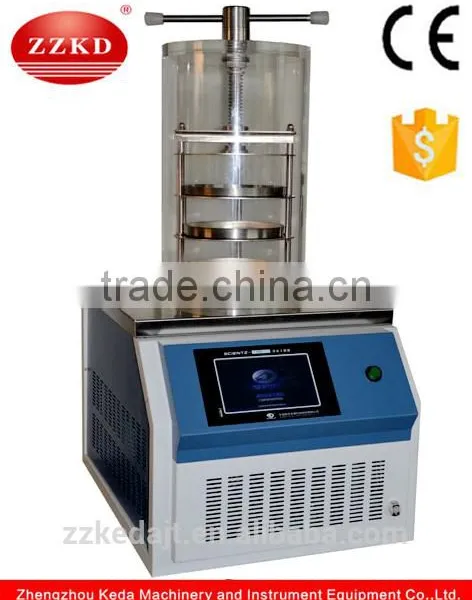

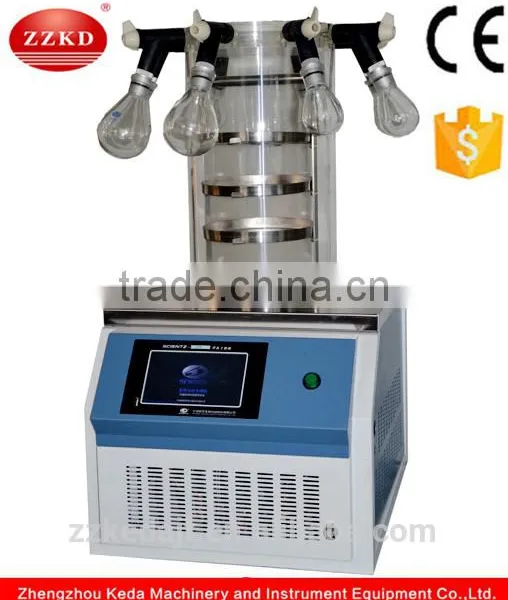

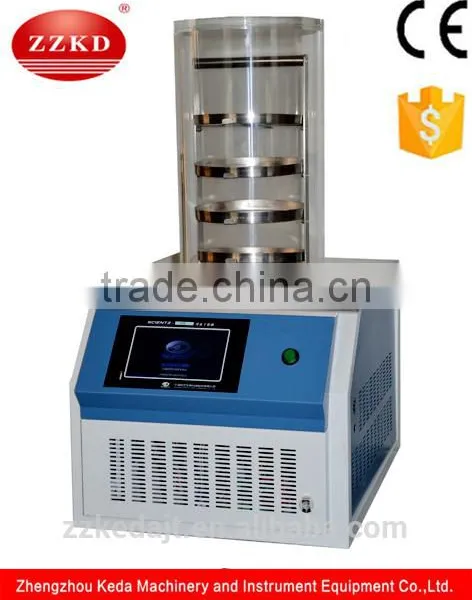

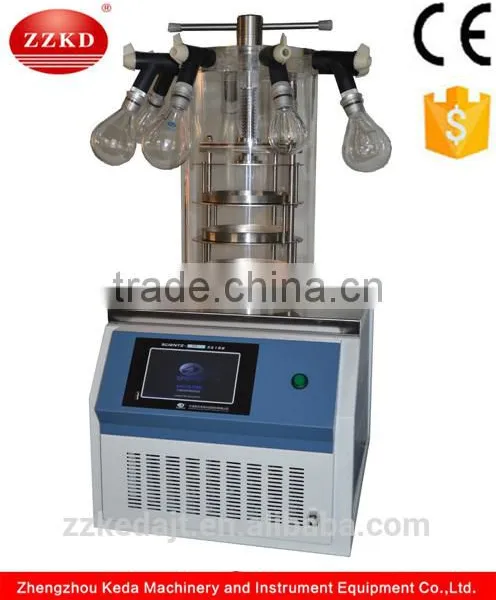

Four kinds of 18ND
Characteristics
1. Accord with international standards of green environmental friendly;
2. 7" True~color touch screen, chinese english bilingual interface, display drying curve and
history curve;
3. U disk Can storage lyophilized data;
4. Upload software can print curve;
5. Embedded circuit design, 128 M flash, can save dozen times Lyophilized data;
6. Large opening trap, no coil inside, with samples pre-freeze function.
7. Imported refrigeration compressor, low noise.
8. Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean.
9. Transparent Bell type drying room, secure and ocular.
10. Stainless steel sample holder, common sample plate spacing adjustable.
11. Small size and easy to operate.
12. Nitrogen inflation valve within.
Applications
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency. etc.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, short path distillation jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company.
Location: Henan, China (Mainland).
Year Established: 2009.
Total Revenue : US$1 Million - US$2.5 Million.
Registration No: 410105000067362.
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
