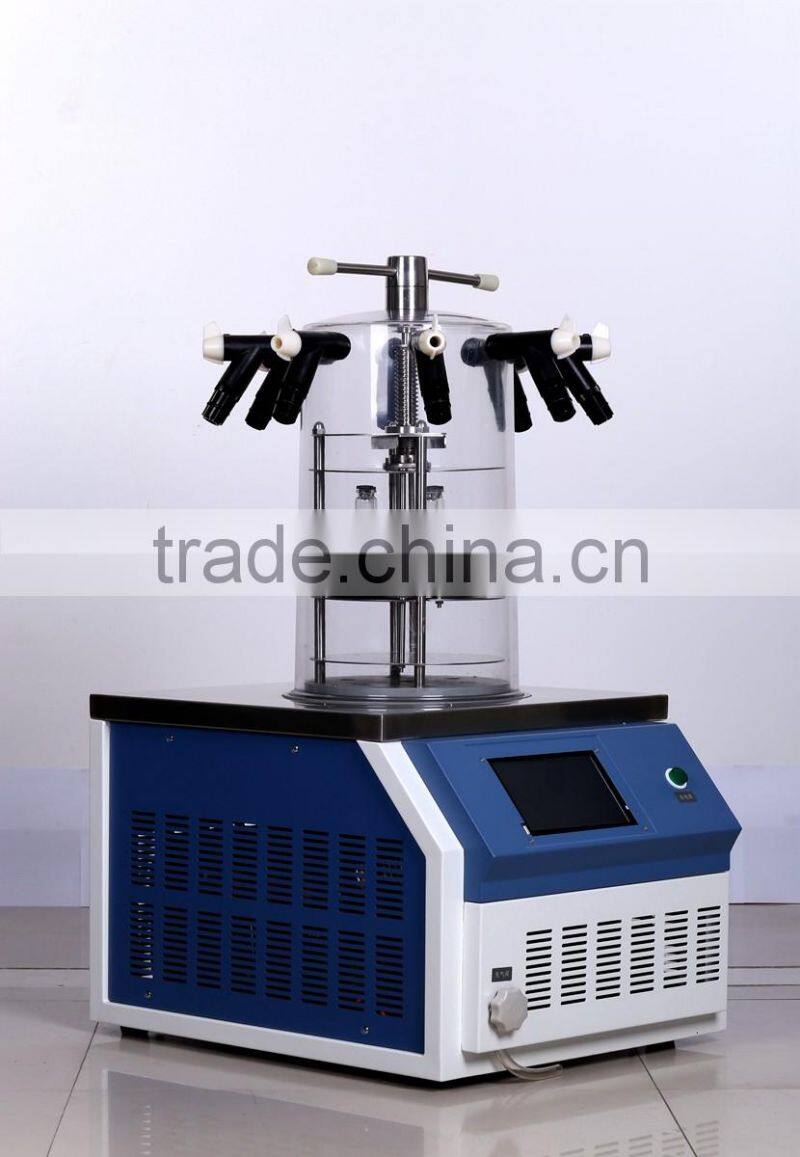

ZZKD Freeze Drying Equipment

ZZKD Freeze Drying Equipment thumbnail-1
ZZKD Freeze Drying Equipment thumbnail-2
ZZKD Freeze Drying Equipment thumbnail-3
ZZKD Freeze Drying Equipment thumbnail-4
ZZKD Freeze Drying Equipment thumbnail-5
ZZKD Freeze Drying Equipment thumbnail-6
ZZKD Freeze Drying Equipment photo-1
ZZKD Freeze Drying Equipment photo-2
ZZKD Freeze Drying Equipment photo-3
ZZKD Freeze Drying Equipment photo-4

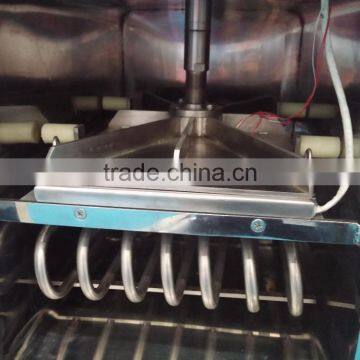

ZZKD Freeze Drying Equipment photo-5

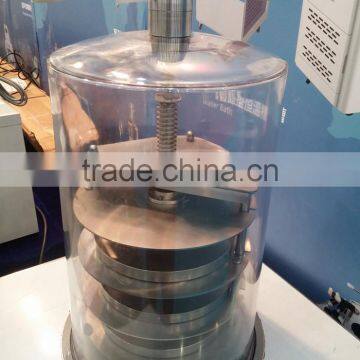

ZZKD Freeze Drying Equipment photo-6
US$ 1 - 2,690 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Keda Machinery And Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Qingdao Tianjin Shanghai Ningbo Qinhuangdao etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Freeze Drying Equipment
Place of Origin Henan, China
Brand Name ZZKD
Model Number 18ND
Voltage 220V
Power(W) 1300W
Dimension(L*W*H) W700*D560*H(960+450) mm
Weight 105KG
Certification ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

 ZZKD Freeze Drying Equipment

Product Description

Characteristics

1. Accord with international standards of green environmental friendly;

2. 7" True~color touch screen, chinese english bilingual interface, display drying curve and history

curve;

3. U disk Can storage lyophilized data;

4. Upload software can print curve;

5. Embedded circuit design, 128 M flash, can save dozen times Lyophilized data;

6. Large opening trap, no coil inside, with samples pre-freeze function;

7. Imported refrigeration compressor, low noise;

8. Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean;

9. Transparent Bell type drying room, secure and ocular;

10. Stainless steel sample holder, common sample plate spacing adjustable;

11. Small size and easy to operate;

12. Nitrogen inflation valve within.

Application

1) For fruit

2) For flower

3) For chinese medicine

ZZKD Freeze Drying Equipment



Technical data
18NDOrdinaryTop-PressOrdinary Multi-ManifoldsTop-Press Multi-Manifolds
No-load Temperature(℃)<-56
Freeze Area(m2)0.180.090.180.09
Plate Load Capacity(L)2 1 2 1

Ability to Capture Water

(Kg)

6
Vacuum Degree(Pa)<10

Machine Dimension

(W*D*H) mm

700*560*(960+450)
Sample Tray Size (mm)4×Φ240Ø 3×2004×Φ240Ø 3×200
Power (W)1300
Power Supply110V/60HZ or 220V/50HZ
Interlayer spacing(mm)70
Cold trap size(mm)Ø270×410

The number of

schering bottles

Ø22: 360Ø22: 270Ø22: 360Ø22: 270
Ø16: 740Ø16: 560Ø16: 740Ø16: 560
Ø12: 1320Ø12: 990Ø12: 1320Ø12: 990
N. W./ G. W130KG/145KG135KG/150KG145KG/160KG150KG/165KG


Product details

ZZKD Freeze Drying Equipment
ZZKD Freeze Drying EquipmentZZKD Freeze Drying EquipmentZZKD Freeze Drying EquipmentZZKD Freeze Drying Equipment



Packaging & Shipping

Packaging

-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

Company Information

          Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.

Our company sells recycled water vacuum pumps, rotary evaporators, thermostatic magnetic stirrers, glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets.

With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.

ZZKD Freeze Drying Equipment

ZZKD Freeze Drying EquipmentZZKD Freeze Drying EquipmentZZKD Freeze Drying Equipment

FAQ

1. What's the minimum order quantity?

One set at present.



2. What kind of payment term do you accept?

Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.



3. How will you delivery these goods?

It will be decided according to your quantity. Normally we will choose International Express,  Air and sea.



4. How will package glass equipment?

We package these glass equipment in good and non fumigation standard plywood.



5. Can you accept OEM terms?

Sure.
