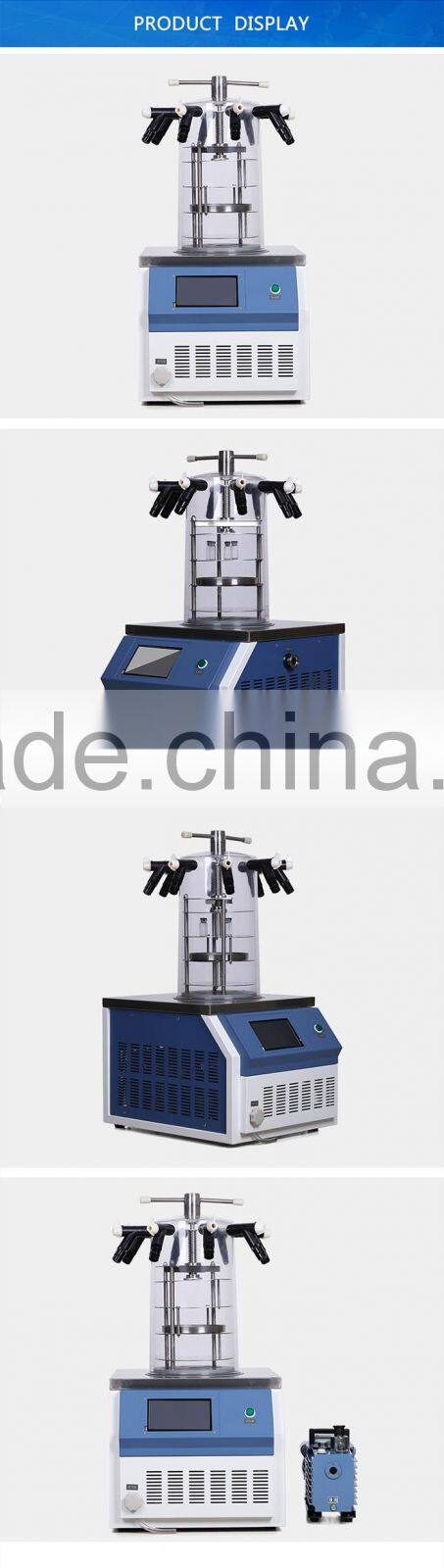

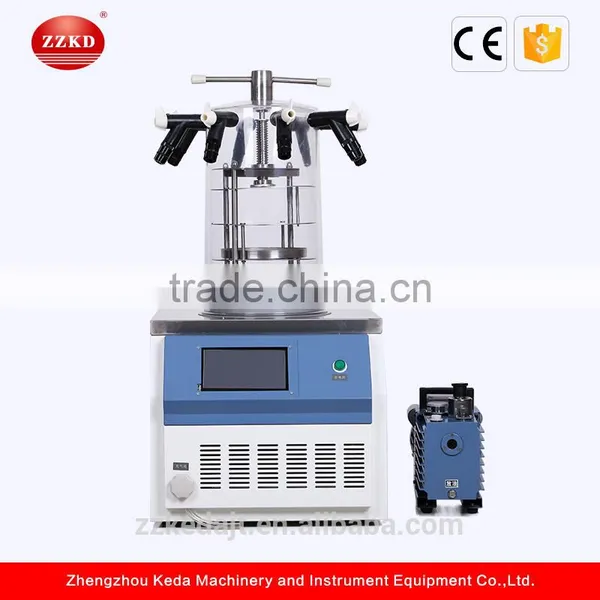

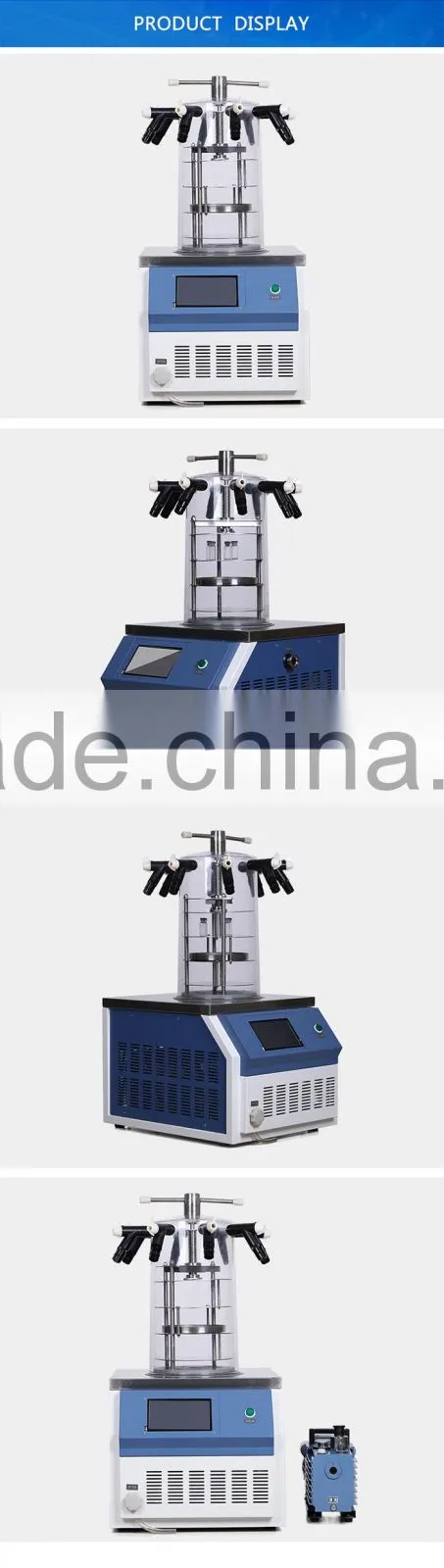

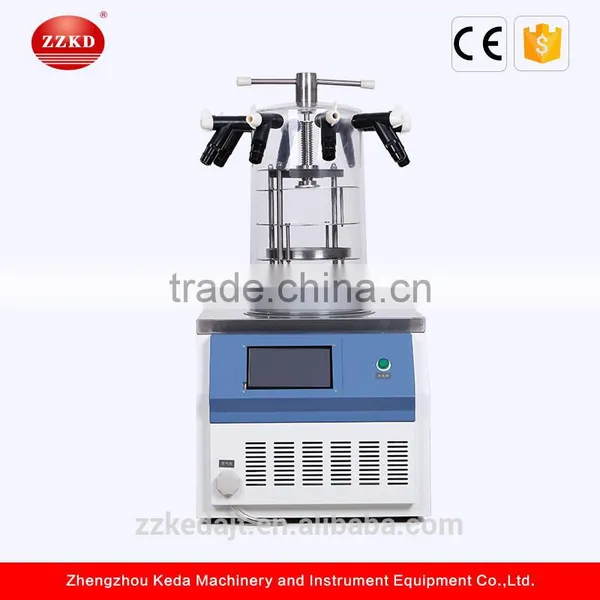

Lab Use Chemical Tabletop Freeze Dryer
Description of Tabletop Freeze Dryer:
mini lyophilization machine is the watery element in advance to freeze, then lifted its moisture content under the vacuum state and obtain a technical method of dry goods, freeze-dried article easy to long-term preservation, after adding water can be recovered to form and maintain the original form of biochemical characteristics. For heat-sensitive substances such as antibiotics, vaccines, blood products, enzyme, hormone and other biological products, the freeze-drying technology can display its superiority, more suitable for laboratory the freeze-drying experiment and a small amount of production of the sample.

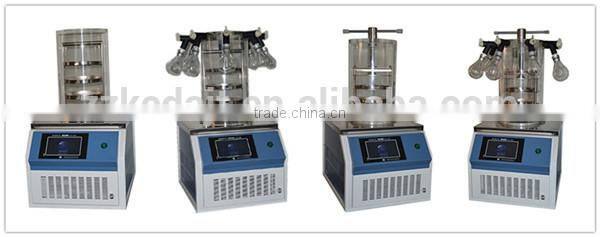

mini lyophilization machine is divided into four kinds: normal type mini lyophilization machine , gland type mini lyophilization machine, manifold type mini lyophilization machine, manifold pressure cap type mini lyophilization machine, with the function of precool.
Features of Tabletop Freeze Dryer:

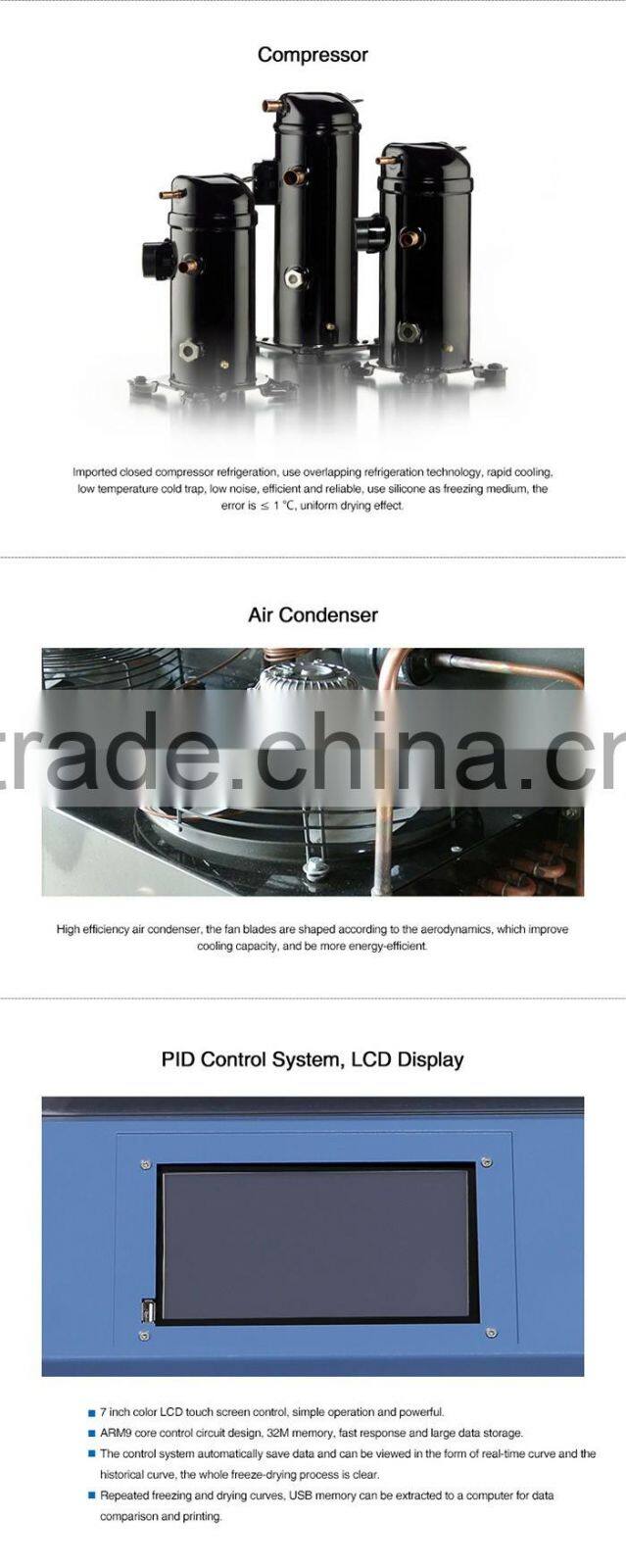

(1) The mini lyophilization machine machine adopts international brand Danfoss compressor refrigeration, rapid , low temperature cold trap .
(2) 7- inch TFT LCD touch screen control system , easy to operate , and powerful .
(3) industrial embedded operating system , ARM9 core control circuit design , 32M RAM 128M FLASH, operating fast response, store large volumes of data .
(4) control system automatically saves lyophilized data, and can be viewed in the form of real-time curve and the curve of history , the whole freeze-drying
process clear.

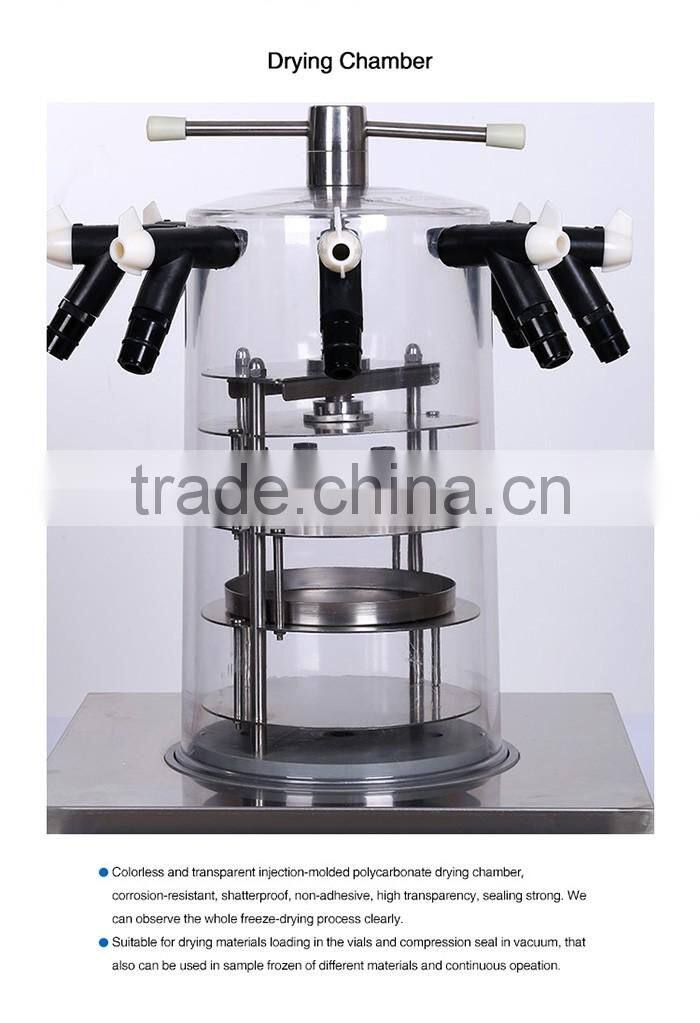

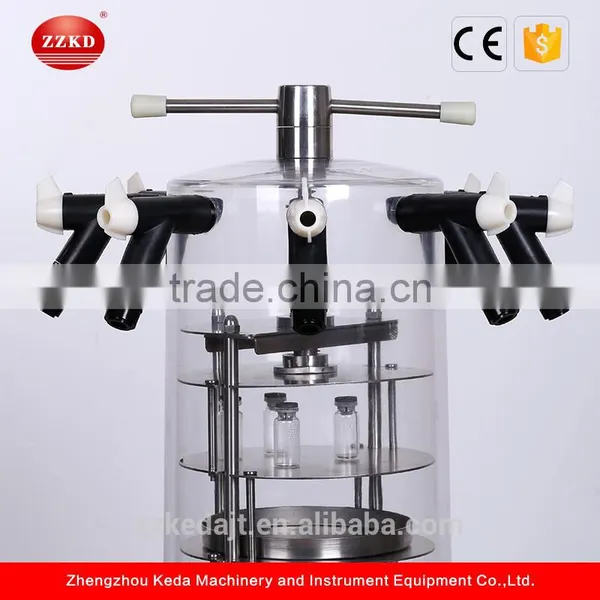

(5) drying chamber using colorless, transparent organic glass , clear and intuitive sample can be observed in the whole process of freeze-drying .

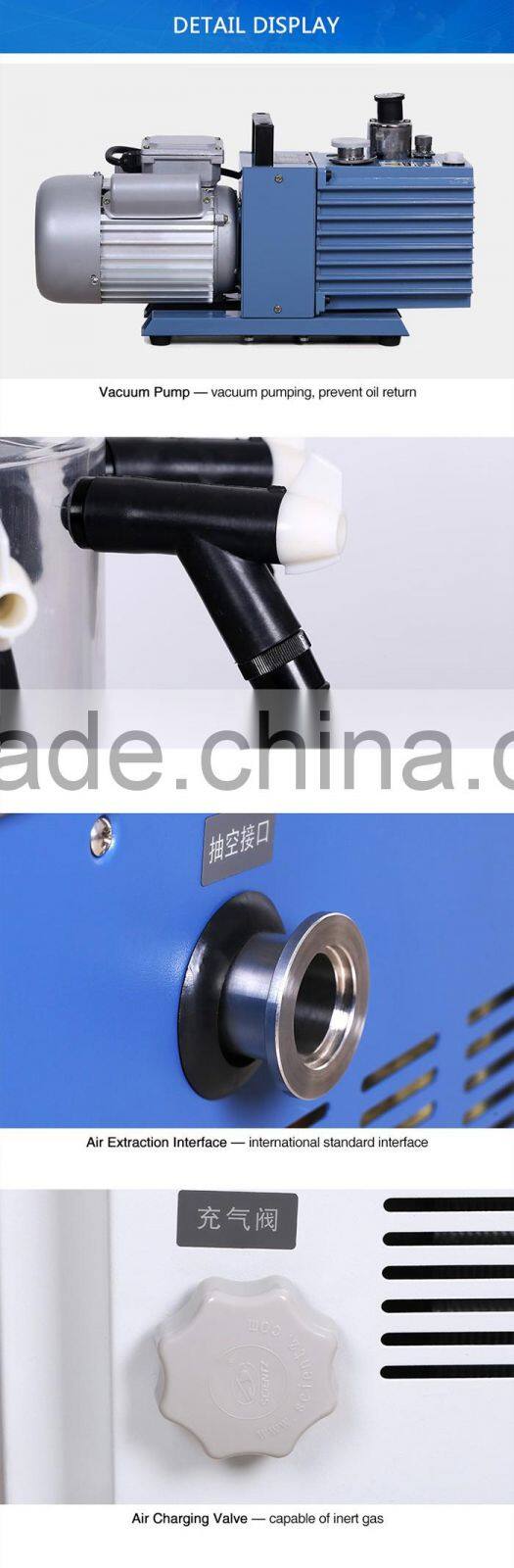

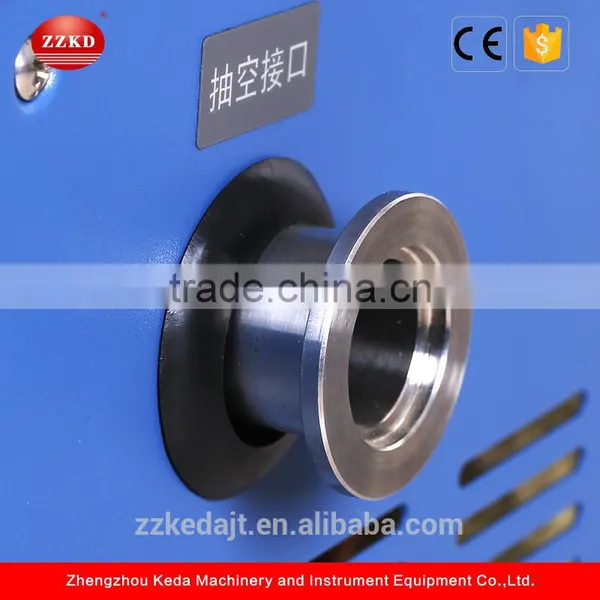

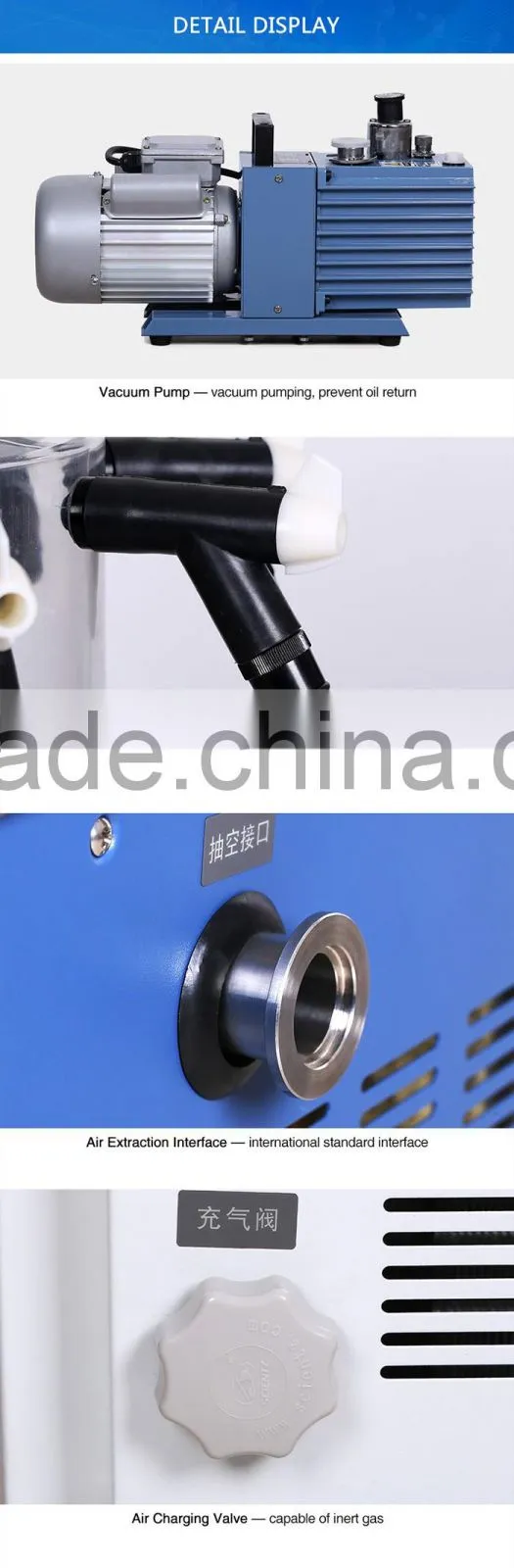

(6) connected to a vacuum pump and a host of international standards KF quick connector , simple and reliable.
(7) The machine can store multiple freeze-drying curve, and extracted with U-disk
data to a computer, use the PC software to view and print a variety of options in the computer.
(8) configuration inflation valve , rechargeable dry inert gas.
Technical Parameters of Tabletop Freeze Dryer:
10N |
Ordinary |
Top-Press |
Ordinary Multi-Manifolds |
Top-Press Multi-Manifolds |
|
No-load Temperature |
<-56℃ |
<-56℃ |
<-56℃ |
<-56℃ |
Freeze Area |
0.12 m2 |
0.08 m2 |
0.12 m2 |
0.08 m2 |
|
Plate Load Capacity |
1.5 L |
1 L |
1.5 L |
1 L |
|
Ability to Capture Water |
3Kg |
3 Kg |
3 Kg |
3 Kg |
Vacuum Degree |
<10Pa |
<10Pa |
<10Pa |
<10Pa |
|
Machine Dimension |
W450×D580× H(380+450) mm |
W450×D580× H(380+450) mm |
W450×D580 ×H(380+450) mm |
W450×D580 ×H(380+450) mm |
|
Sample Tray Size |
4×Φ200mm |
Ø 3×180 mm |
4×Φ200mm |
Ø 3×180 mm |
Power |
950W |
950W |
950W |
950W |
Power Supply |
110V/60Hz or 220V/50Hz |
110V/60Hz or 220V/50Hz |
110V/60Hz or 220V/50Hz |
110V/60Hz or 220V/50Hz |
|
interlayer spacing |
70 mm |
70 mm |
70 mm |
70 mm |
|
Cold trap size |
Ø215×160 mm |
Ø215×160 mm |
Ø215×160 mm |
Ø215×160 mm |
|
The number of Schering bottles |
Ø22: 260 |
Ø22: 165 |
Ø22: 260 |
Ø22: 165 |
|
Ø16: 480 |
Ø16: 285 |
Ø16: 480 |
Ø16: 285 |
|
Ø12: 920 |
Ø12: 560 |
Ø12: 920 |
Ø12: 560 |
Packaging of Tabletop Freeze Dryer
-Export wooden or carton packing
-Both neutral and customized packaging can be available
Shipping of Tabletop Freeze Dryer
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one
based on your timeline and budget. Also you can definitely choose to use your own shipping agent.
