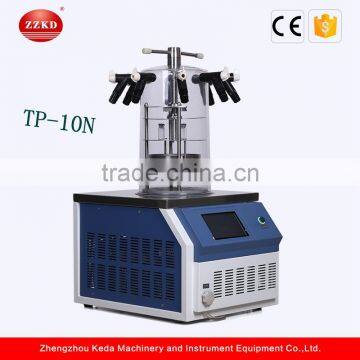

<KD> Desktop Freeze Dryer China
Description
1. Freeze-drying machine applies a technical method by which moisture-bearing samples frozen in advance become dry in the vacuum owing to vaporizing away the moisture.
2. The samples frozen can be well-storage for a long time and returned to their former state once being watered without losing their original biochemical properties.
3. The freeze drying technology is especially ideal for those bio-products sensitive to antibiotic, vaccines, blood products, enzymesand hormones.
4. This machine is also suitable for sample freezing experimentsin labs and small-scale production.
5. The Series can be divided into four type: Ordinary, T op-Press, Ordinary Multi-Pipeline, Top-Press Multi-Pipeline, T-Frame, with Pre-Freeze Function.
Features
1. Desktop design, compact, taking up a small table.
2. Imported closed compressor, high reliability, low noise.
3. Cold trap made of stainless steel.
4. Patented design draft tube , quick drying.
5. Well inflation valve, rechargeable dry nitrogen or inert gas.
6. Transparent bell drying room, secure and intuitive.
7. Stainless steel sample holder, adjustable sample tray spacing.
8. Combined with a variety of vacuum pumps.
9. Digital display of temperature and vacuum.
10. Sample temperature display (optional).
Technical data
10N Desktop Freeze Dryer China | ||||
10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃ | |||
Freeze Area(m2) | 0.12 | 0.08 | 0.12 | 0.08 |
Plate Load Capacity(L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water(Kg) | 3 | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*H*D)mm | 450*580*(380+450)
| |||
Sample Tray Size(mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power(w) | 950 | |||
Power Supply | 110V/60HZ or 220V/50HZ | 110V/60HZ or 220V/50HZ | 110V/60HZ or 220V/50HZ | 110V/60HZ or 220V/50HZ |
Interlayer spacing(mm) | 70
| |||
Cold trap size(mm) | Ø215×160 | |||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
| Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 |
| Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 |
N.W./ G.W (kg) | 80/95 | 85/100 | 95/110 | 100/115 |
Product details
Packaging
-Wooden case or carton packaging;
-Both neutral and customized packaging can be available.
shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift platform, etc.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
