Freeze Drying Equipment Price
Feactures
1. Desktop design, compact, taking up a small table.
2. Imported closed compressor, high reliability, low noise.
3. Cold trap made of stainless steel, cold trap inside the disk management, anti-corrosive.
4. Patented design draft tube to improve the effective area of the cold trap, quick drying.
5. Imported inflation valve, rechargeable dry nitrogen or inert gas.
6. Transparent bell drying room, secure and intuitive.
7. Stainless steel sample holder, adjustable sample tray spacing.
8. International standard vacuum interface, can be combined with a variety of vacuum pumps.
9. Digital display of temperature and vacuum.
10. Sample temperature display (optional).
Technical data
18ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature(℃) | <-56 | |||
Freeze Area | 0.18 m2 | 0.09 m2 | 0.18 m2 | 0.09 m2 |
Plate Load Capacity | 2 L | 1 L | 2 L | 1 L |
Ability to Capture Water | 6Kg | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*D*H)mm | 700*560*(960+450) | |||
Sample Tray Size(mm) | 4×Φ240 | Ø 3×200 | 4×Φ240 | Ø 3×200 |
Power(W) | 1300 | |||
Power Supply | 110V/60HZ or 220V/50HZ | |||
interlayer spacing(mm) | 70 | |||
Cold trap size(mm) | Ø270×410 | |||
The number of Schering bottles | Ø22: 360 | Ø22: 270 | Ø22: 360 | Ø22: 270 |
Ø16: 740 | Ø16: 560 | Ø16: 740 | Ø16: 560 | |
Ø12: 1320 | Ø12: 990 | Ø12: 1320 | Ø12: 990 | |
N.W./ G.W | 130KG/145KG | 135KG/150KG | 145KG/160KG | 150KG/165KG |

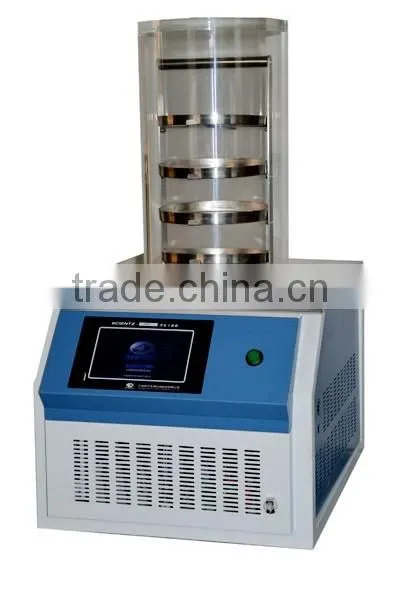

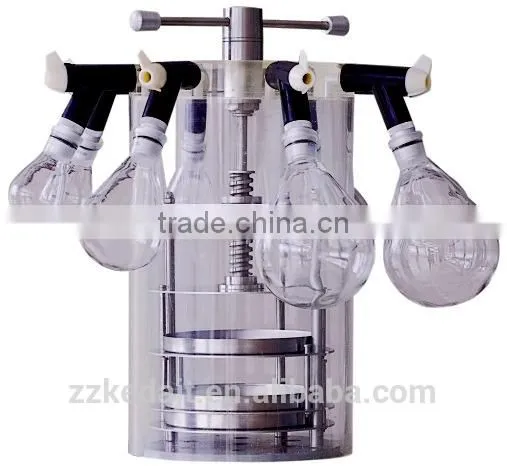

Picture | | | |
|
Pictures
Packaging
-Export wooden or carton packing;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one
based on your timeline and budget. Also you can definitely choose to use your own shipping agent.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.
The company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven,high-pressure reaction kettle,freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer,heating mantle,lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
