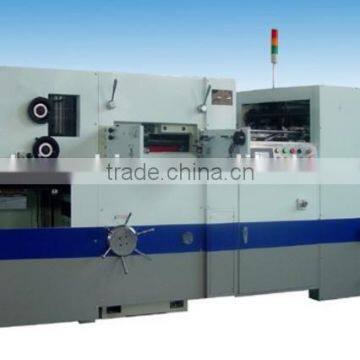

Help CenterFlat Die Cutter Automatic
Related Products
-
550*420mm Hydraulic Envelope Die Punching Cut MachineNegotiableMOQ: 1 Set -
20*32 INCH HYDRAULIC DIE CUTTING PRESS MACHINE FOR PAPER ENVELOPENegotiableMOQ: 1 Set
-
Automatic Aluminum Foil Paper Slitter Rewinder MachineNegotiableMOQ: 1 Set
-
Fax Paper Thermal Paper Receipt Paper Roll Slitting MachineNegotiableMOQ: 1 Set
-
Computer Controlled Automatic Plastic Roll Separating And Cutting MachineNegotiableMOQ: 1 Set
Use
This machine is mainly used for the diecutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.
This kind of machine is incorporated with fully automatic feeding, diecutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliablity, high speed and precision.
Features
1.Adopt programmable controller,and it is incorporated with fully automatic feeding, diecutting, delivery, obstacle indicating, checking and measuring.
2.Using unique cam intermittent construction designed by computer, which ensuring diecutting precision and gripper bar's processing stability.
3.The driving chain for gripper bar is imported from IWIS, Germany, ensuring precision and life.
4.Adopting electromagnetic clutch, long life and low noise.
5.The main motor is controlled by transducer, which achieves stepless speed regulation and smooth operation.
6.PLC, Transducer and all kinds of electric switch are imported from FUJI, YASKAWA, and OMRON, JAPAN.
Technical parameters
Max.paper size (mm) |
720*520 |
Min.paper size(mm) |
340*290 |
Max.cutting size (mm) |
710*510 |
Pressure(T) |
150 |
Max.cutting speed (s/h) |
7000 |
Diecutting precision |
0.1mm |
Sheet thickness (mm) |
Corrugated paper: 4 Cardboard:0.1-1.5 |
Total power (KW) |
12.75 |
Net weight (T) |
7 |
Overall dimension (mm) |
3538*2000*1550 |
