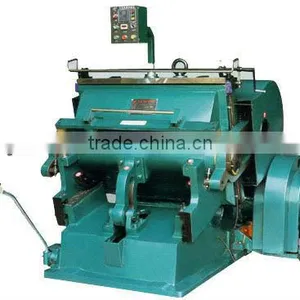

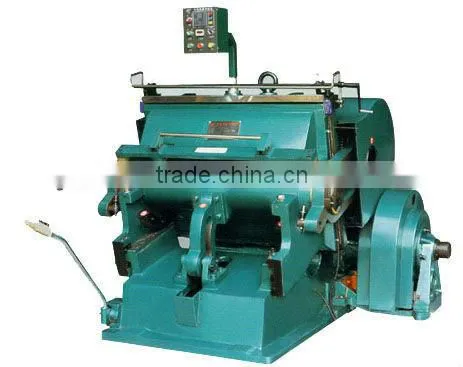

Manual Paper Die Cutting and Creasing Machine(Max.Rule Area:1100*800mm)
- 30 Set / Sets per Month
- Ningbo or Shanghai
- T/T
You May Like
-
930/1100 creasing and die cutting machine with heating
-
900*550mm Hot Thermo Foil Stamping and Die Cutting Machine
-
Automatic Paper Roll Die Cutting Machine For Paper Cups
-
Flat Die Cutter Automatic
-
550*420mm Hydraulic Envelope Die Punching Cut Machine
-
20*32 INCH HYDRAULIC DIE CUTTING PRESS MACHINE FOR PAPER ENVELOPE
Product Details
| Condition | New | Type | Die-cutting Machine | |
| Computerized | No | Place of Origin | Zhejiang, China | |
| Brand Name | Tonghe | Model Number | ML1100 | |
| Voltage | 380V | Power(W) | 4KW | |
| Dimension(L*W*H) | 1950*2050*1700mm | Weight | 48000KG | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Creasing and cutting machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather ingeneral, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.
Features
1. Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to whole casting by using high quality material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single, continuous and opening delay operation, delay range is adjustable.
6. Operating position is reasonably designed, moving-bed can be open to its optimum.
7. Central lubrication system guarantees fine lubrication and reduce friction.
8. Safety system is reliable.
9. With die plate clamp system suitable for different size plate, it is very easy and quick to load anf unload the plate.
10. Easy to opeartion and maintenance
11. With or without CE mark available suitable for different countries.
Specifications
Model | ML1100 |
Inner Chase Size | 800*1100mm |
Speed | ~25strokes/min |
Max. Rule Length | < 30m |
Motor Power | 4kw-6H |
Machine Weight | 4500kg |
Overall Dimensions | 1950*2050*1700mm |
Remark:We have ML-720,ML-750, ML-930, ML-1040, ML-1200, ML-1300, ML-1400, ML-1500, ML-1600, ML-1800 and ML-2000 model,etc
