Thermal Creasing Die Cutting Machine/Die Cutting Heat Pressing Machine

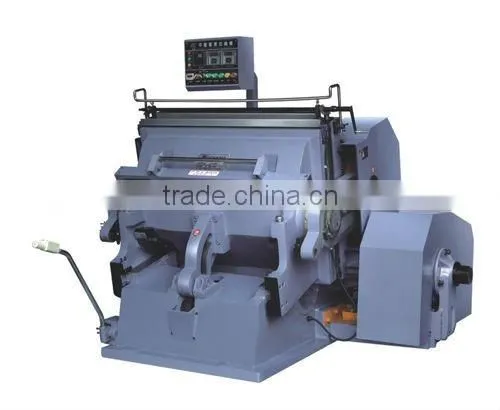

Thermal Creasing Die Cutting Machine/Die Cutting Heat Pressing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Die-cutting Machine
Computerized:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Die-cutting Machine
Computerized No
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number RML series
Voltage 220/380V
Power(W) 2.2-6KW
Dimension(L*W*H) See table below
Weight See table below
Certification CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

This machine is suitable for large area cutting and pressing, which can be used to cut and press paper board, corrugated paper board, plastics, leather, etc. Shuangling machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2.High strength due to one piece casting by using top-ranking material for machine body.
3.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
4.Flywheel is with big moment of force and large pressure.
5.Single plate electromagnetic clutch is sensitive and reliable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.

TECHNICAL PARAMETERS

Model

RML-720

RML-203

RML-1040

RML-1100

Working area of platen(L*W)

720*500mm

930*670mm

1040*720mm

1100*800mm

Working Speed

27time/min±3

22time/min±3

Max.Length of Cutting

15000mm

25000mm

30000mm

35000mm

Distance Adjusting

                     +9
                  26mm
                    -1

                      +10
                    27mm
                      -1

Model of Paper Feeding

                                        By hand

Overall Dimensions(L*W*H)

154*140*155mm

175*186*170cm

180*185*180mm

195*195*180mm

Weight

1800kg

3100kg

4000kg

4500kg

Motor Power

2.2kw

4kw

                    4-6kw
