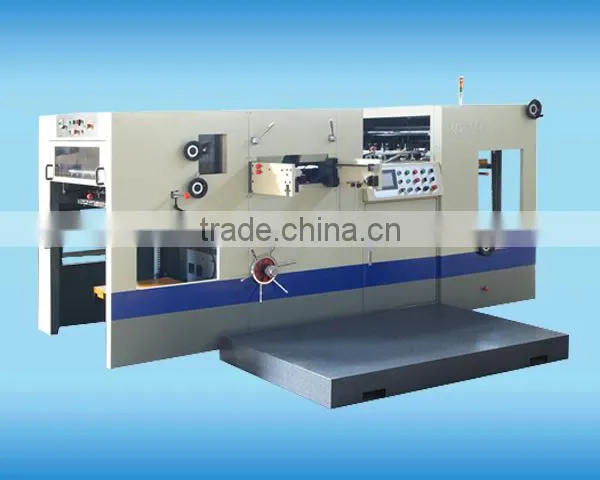

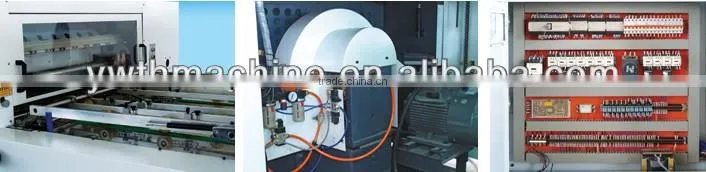

Automatic Cardboard Die Cutting Creasing Machine For Packing Box

Specifications

Automatic Cardboard Die Cutting Creasing Machine
Automatic feeding, diecutting, delivering counting, obstacle indicating,etc

Use

This machine is mainly used for the diecutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.

This kind of machine is incorporated with fully automatic feeding, diecutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliablity, high speed and precision.

Features

1.Adopt programmable controller,and it is incorporated with fully automatic feeding, diecutting, delivery, obstacle indicating, checking and measuring.

2.Using unique cam intermittent construction designed by computer, which ensuring diecutting precision and gripper bar's processing stability.

3.The driving chain for gripper bar is imported from IWIS, Germany, ensuring precision and life.

4.Adopting electromagnetic clutch, long life and low noise.

5.The main motor is controlled by transducer, which achieves stepless speed regulation and smooth operation.

6.PLC, Transducer and all kinds of electric switch are imported from FUJI, YASKAWA, and OMRON, JAPAN.

Technical parameters

Max.paper size (mm)	720*520
Min.paper size(mm)	340*290
Max.cutting size (mm)	710*510
Pressure(T)	150
Max.cutting speed (s/h)	7000
Diecutting precision	0.1mm
Sheet thickness (mm)	Corrugated paper: 4 Cardboard:0.1-1.5
Total power (KW)	12.75
Net weight (T)	7
Overall dimension (mm)	3538*2000*1550
