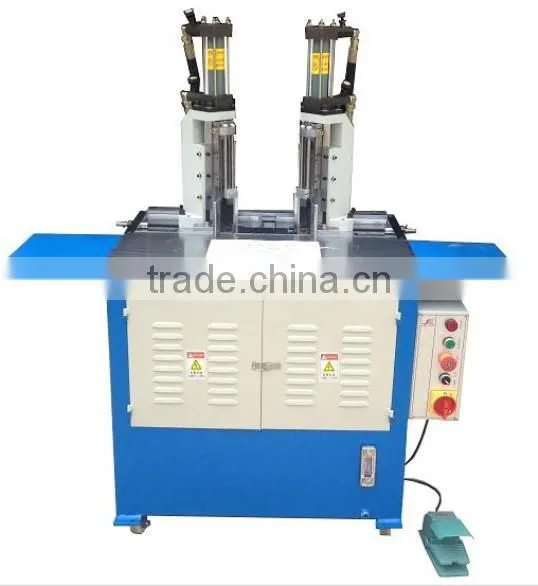

Help CenterElectric Double Round Corners Paper Cutting Machine/Round Shape Paper Corner Cutter
Related Products
-
400mm*540mm Two-Fold Sheet Fed Suction Paper Folder Machine Booklet Folding MachineNegotiableMOQ: 1 Set -
A3+ Folding Paper Machine With 4 Folding PlatesNegotiableMOQ: 1 Set
-
A2 Suction Sheet Paper Folding Machine/Electric Folding Paper Sheet MachineNegotiableMOQ: 1 Set
-
400*540mm Automatic A3 Paper Sheet Folding Machine With 2 Folding PlatesNegotiableMOQ: 1 Set
-
360mm*540mm Auto Paper Folder Folding MachineNegotiableMOQ: 1 Set
This machine is suitable for such occasions to cut angle of playing cards,invitation cards,trademarks,
calendar,name cards,books, etc.Since it can cut double corner at one time,paper and book length
should be the same,especially for corner rounding after processed by three-knife trimmer.
Features
1.Wide applicable paper range,corner can be cut from 80mm to 460mm.
2.Can be used for cutting double corners(round corner & flat angle ) at a time with high efficiency.
3.Upper and lower knife can move simultaneously,easy to adjust machine.
4.It’s driven by oil pressure system,stable and reliable,less failure.
Specifications
Max.Cutting Thickness |
80mm |
Speed |
0-10times/min. |
Max. Book Length |
460mm |
Min. Book Length |
80mm |
Knife Spec. |
R3~R12mm |
Motor Power |
2.2KW |
Power Supply |
380V 50HZ 3P |
Machine Weight |
330KG |
Overall Dimensions |
1300mm*750mm*1420mm |
