Specifications

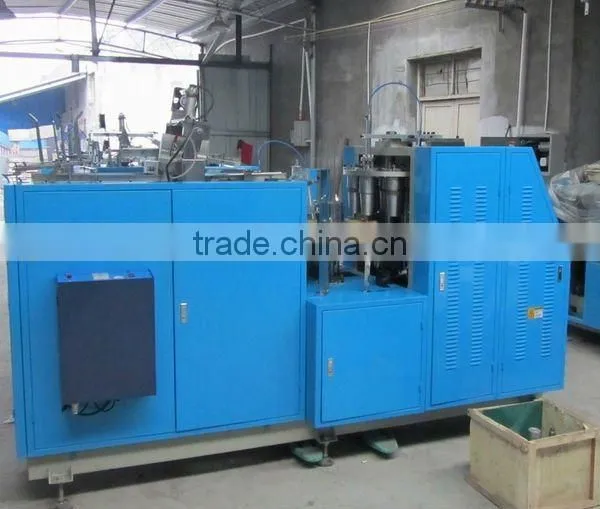

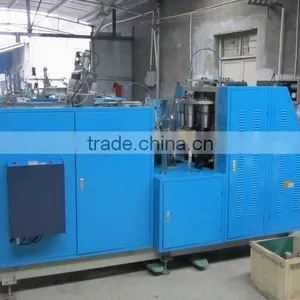

180mm/7 Inch Height Paper Cup Making MachineSpecial for making super size paper cup(the cup height up to 180mm),32OZ available
In this type paper cup machine, we add a ultrasonic system to sealing the paper cup body, the ultrasonic system resolve the problem that double sides PE coated paper can not be sealing by heater, the reason is that when a heater is adopted on the outside surface the PE film will be burnt and become yellow or blackish and make the cups shape in ugly. Then in this type machine you can produce both double sides PE coated paper cups and single side PE coated paper cups only exchanging the raw material.
it makes super size paper cup(high paper cup, the cup height up to 180mm),available size 16-32oz.
Technical Data
Model |
TH-L16 |
Production Capacity |
40-50pcs/ min |
Required Paper |
150-380gsm |
Container Specification |
(A)60-128mm,(B) 45-140mm, |
Required Air Supply (Two-side PE) |
Working Pressure: 0.4-0.6Mpa Working Gas: 0.5m3 /minute |
Total Power |
220V 50HZ 3.8kW or 380 V 50 HZ 3.8KW (variable-frequency control) |
Weight |
1800kg |
Overall Dimensions (L×W×H) |
2700×1300×2000mm |
