Specifications

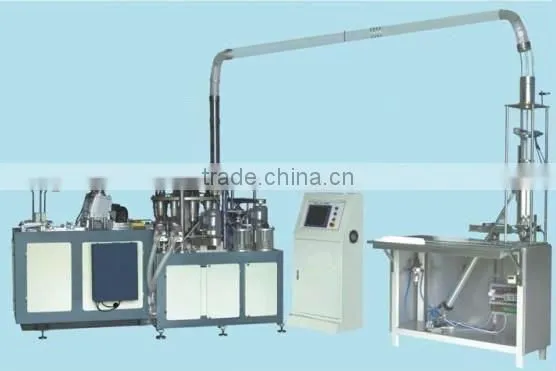

This Paper Cup Machine can make cups 6-32oz at a high speed by changing mould, with automatic lubrication system.Characteristics
1. Bottom sealing by Swiss hot air devices, so you can get non-leakage cup.
2. Cup side sealing by Taiwan Evergreen ultrasonic; If you will not change mould, if only one mould work with the machine, you can take hot air sealing as option.
3. Cup top curling and bottom knurling are finished by separate turnplates.
4. It is easy to make cups with different sizes by changing moulds.
5. With automatic cup delivery system with counter.
Technical Data
1.Cup Use:Rround paper cups, drinking, noodle and vending cups ice-cream and food containers
2.Cup Size:6OZ-32OZ
Raw material: 180-380gsm Single or Double PE coating paper
3.Output : 60-80 pcs/min.
4.Maximum cup dimensions
-max. top diameter : 145mm
-max. cup height : 178mm
5.Minimum cup dimensions
-min. top diameter : 50mm
-min. cup height : 50mm
6.Electrical requirement : 380V or 220V, 50Hz
7.Electric consumption : 9KW
8.Air consumption : about 0.5cbm/min
9.Machine dimensions : 2800mm×1650mm×1720mm
10.Machine Weight :3,000kgs
