Specifications

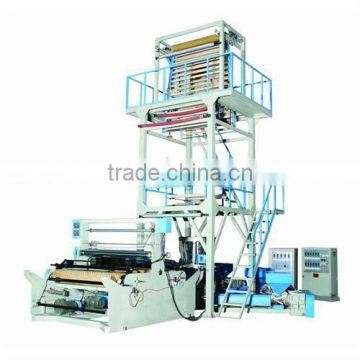

3-layer Co-extrusion Internal Bubble Cooling Haul-off Rotary Film Production Line1.Materials:LDPE, HDPE, LLDPE
2.High output
1.Usage
Applicable for the materials as LDPE, HDPE, LLDPE, etc. It is widely used to manufactuer composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhensive film, multifunctional industrial film products, can better meet operational requirements of high
accuracy and high speed color printing, composite and painting products.
2.Features
2.1.The tractor adopts horizontal swing rotation which replaces the die rotation and simplifies die
structure. It solves problems of leakage, poor, sealing, and maintenance and improves the quality of
film.
2.2.The IBC internal bubble cooling system improves film quality and transparency, finally increases
the output.
2.3.High precision fold diameter control system reduces deviation by controlling air blower speed
and adjusting air flow.
2.4.EPS photoelectron correct errors system can correct automatically, which ensures the roll film
evenly.
2.5.High accurate mould and effective air cooling system ensure high quality film and output.
Main Technical Parameters
Model |
3SJ-50 |
3SJ-55 |
3SJ-65 |
Suitable material |
HDPE LDPE LLDPE |
HDPE LDPE LLDPE |
HDPE LDPE LLDPE |
Screw Diameter(mm) |
A:φ50 B:φ55 C: φ50 |
A:φ55 B:φ65 C: φ55 |
A:φ65 B:φ70 C:φ65 |
Film Width(mm) |
800-1500 |
1200-2000 |
1600-2500 |
Film Thickness(mm) |
0.028-0.20 |
0.028-0.20 |
0.03-0.20 |
Max. Output(kg/h) |
200 |
260 |
320 |
Screw L/D Length |
28:1 |
28:1 |
28:1 |
Driving Motor(kw) |
A:18.5 B:22 C:10.5 |
A:22 B:37 C:22 |
A:37 B:45 C:37 |
|
Outline Dimension (L*W*H)(m) |
9.5x4.5x7.5 |
10.5x5.0x9 |
11.5x5.5x10 |
