SJ-40D*2 Double-Color Striped Film Blowing Machine

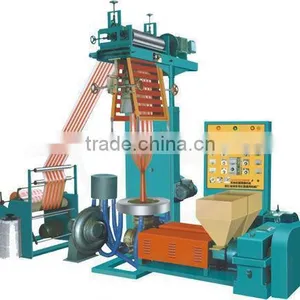

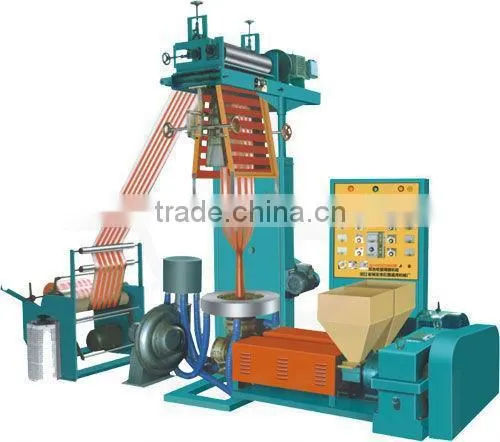

SJ-40D*2 Double-Color Striped Film Blowing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number SJ-40D*2
Voltage 380V
Power(W) 11KW
Dimension(L*W*H) 3800mm*3000mm*3400mm
Weight 2550KG
Certification CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Used for blowing high-low pressure pe, which has been widely used for producing laminating film,packing film,agricultural cover

Features

1.It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film textile and clothing and other packing material.

2.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.

3.The Screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type.

4.No matter what size of the film is , big or small, it can achieve the beswt effect of cooling double-cutting and Double-rolling;

5.It adopts three torque motors , which can keep appropriate tension to make rolling even and coil changing easily.

6.Rotary machine head: it can make the thickness of film of film even and rolling surface smoother and more even , and it is specially suitable for producing laminating film and printing film.

Main Technical Parameters

Model

SJ-40D*2

Screw Diameter

40mm*2

Screw Ratio

L/D30:1

Screw Speed

10-100r/min

Power of Main Motor

11kw

Main Output

10-30kg/h

Max. Folding Width of Film

200-500mm

Single-sided Thickness of Film

0.008-0.10mm

Machine Weight

2550kg

Overall Dimensions(L×W×H)

3800mm*3000mm*3400mm
