Water filter unit
Specifications Full automatic.purify, sofen and adjust water
chanical filter
2.quartz sand filter
3.active carbon filter
ftener
1)original tank(depending on the circumstances to select)
Overcome the instability of the water supply pipe network. Ensure that the entire system of water supply stable and continuous. It can be providing a guarantee to the reliable performance of the device long-term also. Control (depending on the circumstances to select). Preparations high float valve. Control switch when the water level is not in high, with raw water solenoid valve open condition, when the water level in the high-water, solenoid valve is closed, when the water level in the low water level, the raw water pump stop working, protection of the original water pump.
2)raw water pump
Provide the necessary pressure to all pretreatment equipment. According to pretreatment equipment design pressure drop. Maximum pressure on each piece of equipment can not be less than 0.5MPa.determine the original water pump working pressure.
3) Quartz sand filter
Containing very fine particles of dust, humus, starch, cellulose and bacteria, algae and other microorganisms, these impurity particles with water to form the body of the sol state, showing the sedimentation stability and aggregate stability, due to Brownian motion and electrostatic repulsion usually can not use the gravity of natural sedimentation to remove. Thereby reducing the turbidity of the water. The quartz sand is made from natural quartz by crushing, washing, drying, and second filter, no impurities, no angle, density, high mechanical strength contained sewage capacity line to use
Power: 220V or 380V/50Hz
High-pressure pump power: 550W
Tank Diameter: 320mm, Height: 1650mm (quartz sand, activated carbon, resin tank the same size)
Inlet / outlet diameter: 32mm
Flow: 2T / h.
Dimensions: 2010 * 480 * 2100mm,
Needed supplies:
Quartz sand: # 1, # 2, # 3 Total 150 kg
Activated Carbon: 70 kg.
softener: 70 kg.

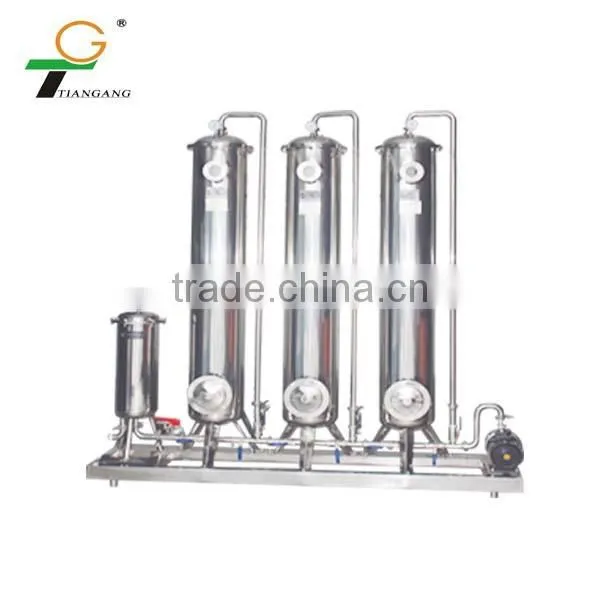

Water treatment unit
Product Description
The unit is all stainless steel original high pressure water pump, quartz sand filters, activated carbon filters, ion exchange filters, salt box, salt water pump, microporous membrane filter. Applicable to the food and beverage industry, soy products factory to provide safe and reliable source of drinking water to meet the health standards.
