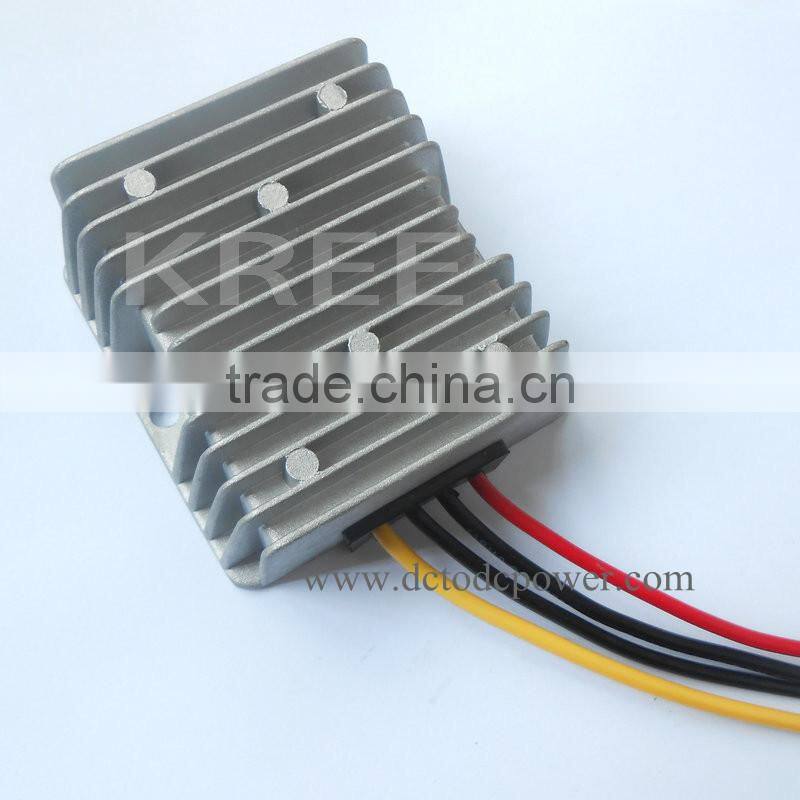

12V24V turn 5V30A 150W car power DC-DC converter power supply LED car display

Product Name: 12V24V turn 5V30A 150W car power DC-DC converter power supply LED car display

Keywords: DC-DC power supply LED car display

Product Type: KREE-1224-5-150W

Color classification:

Product Details: DC-DC 12V24V turn 5V 30A 150W power converter
Power Model: KREE-1224-5-150W
Input voltage: DC 24V (wide voltage 8V-40V)
Output voltage: DC 5V, output current: 30A, 150W power
Instantaneous peak current MAX 40A
Long-term work load is recommended within 26A, than please enhance heat dissipation outside
As used in the LED car display, you can take 9-11 P10 monochrome board long-term work
undefined
Non-isolated power supply, synchronous rectification, the main components imported brands
Full power, high conversion rate: more than 93%, power consumption: 100MA
Ripple: 40MV, adapt to the environment temperature: -40 ℃ ~ + 85 ℃ industrial grade
Using heat silicone potting, waterproof, shockproof
Protection: Enter the instant pressure, output short circuit, output overcurrent, overtemperature protection

chip.
Wiring instructions are as follows:

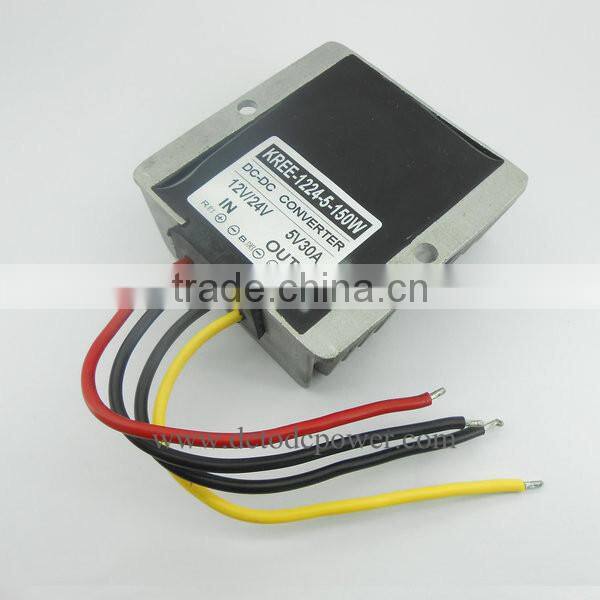

Input IN: red (+) black line (-), the output OUT: yellow line (+) black line (-)
(Note: No reverse polarity protection, wiring carefully, otherwise the power supply may be damaged)

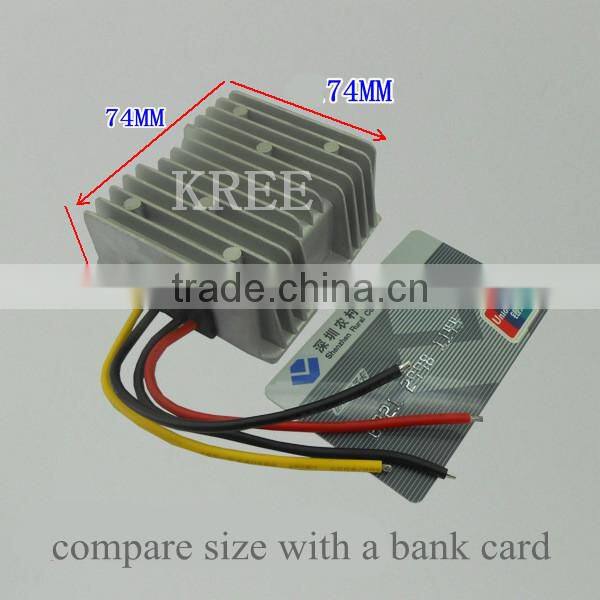

Volume Specifications: 74 * 74 * 32MM (L * W * H) Weight: 300 g / month
Sale: normal use, one year warranty.
