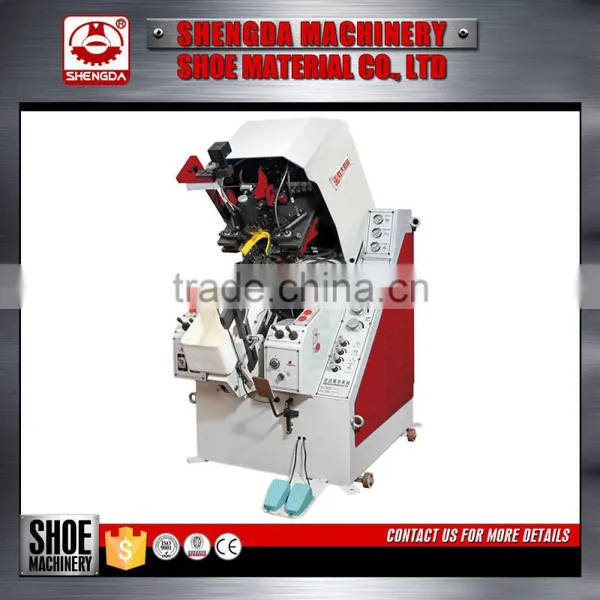

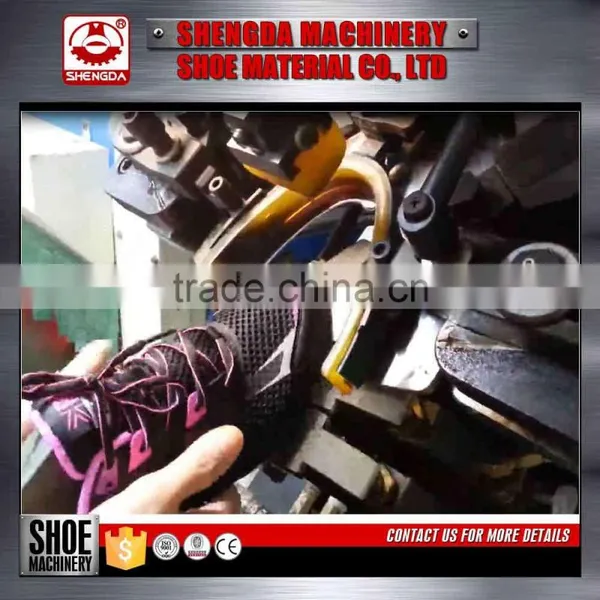

SD-798 Automatic shoe toe lasting machine shoe making equipment
1.The operator works in natural stance, improving the working efficiency.
2.Crimping toe transfer trip-free design, not the slightest temperature and without the effect of pressure, do provide a very stable pressure focus.
3.The newly designed for ward-and-backward adjusting machanism for last support plates can quickly adjust the pincers according to the different sizes of shoes.
4.The machine is equipped with cross projector assembly , which is convenient for correcting toe lasting and helps green hand to easily operate the machine.
5.The size of the holder can be changed at any time, ensuring uppers more evenly and closely attached to lasts after lasting. no protrusion will happen ; the shoe surface becomes more beautiful , and the quality is upgraded.
6.specially tracked wipers, commonly tuned switch of pressure and speed, pressure gauge, all are able to be adjusted outside of the machine, making the operation more convenient and more quickly.
7.The supporter can be minimized to the lowest place automatically, so no need to disassemble the supporter when replacing the claws.
| Model | SD-798 |
| Dimensions | 1600*1000*1960mm |
| Packing size | 1800*1200*2100mm |
| Motor | 2HP |
| G.W. | 1350kg |
| N.W. | 1150kg |
| Output | 2000pairs/10hours |
| System pressure | 35-45kg/cm² |
| Electro heat | 1kw |
|
|
|
| |
