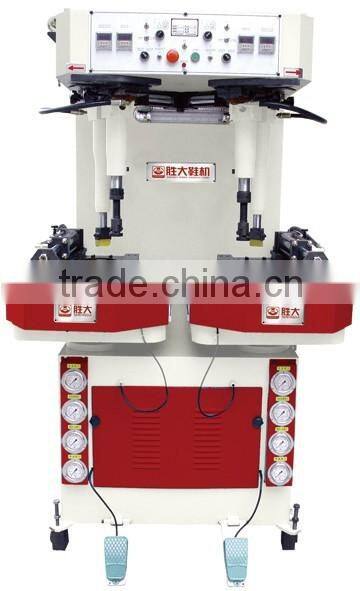

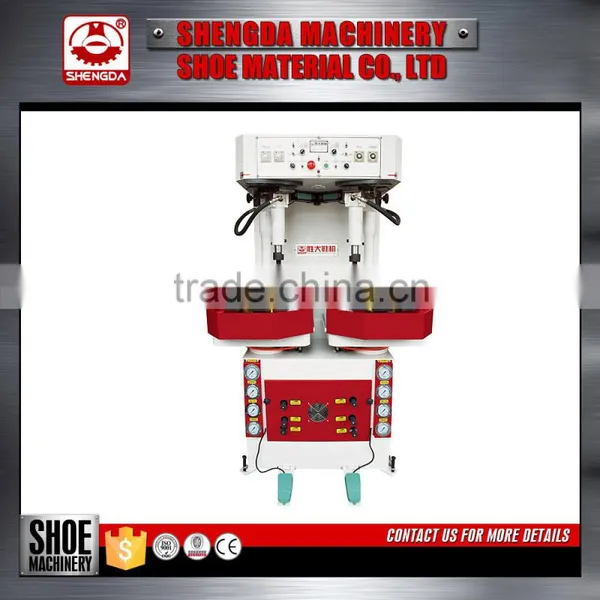

SD-828 Automatic Universal Walled Sole Attaching Machine
1. This machine uses all oil pressure design. The pressure for the adherence is strong, and the adherence is firm. Base pressing, edge pressing and front back pressing can be finished at one time, also can be operated individually, which can meet different needs.
2. This machine uses specially designed &closely arranged multi-cylinders for irregular contours of shoe sides. It can do equalizing side pressing well without anydead points.

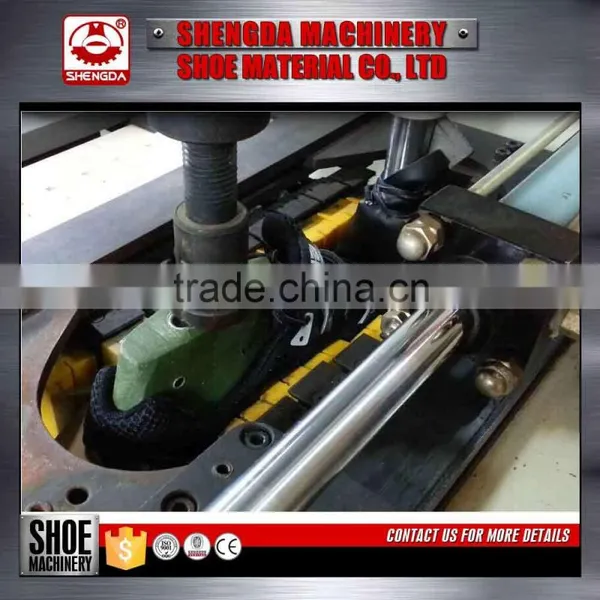

3. The interlinking design of pressure rod makes the stress evenly applied without spacing. The pressure rod have function of automatic displacement and positioning, easy for taking and placing shoes without any damage, greatly increase capacity.
4. This machine applies to taking shape and processing the base. One machine have two functions and do not need to purchase other equipments, which reduces the investment cost.
| Model | SD-828 |
| Motor Power | 3HP |
| Pressure | 35-45 kg/cm2 |
| Output | 2000pairs/8hours |
| N.W. | 1300kg |
| G.W. | 1380kg |
| Dimensions | 1180*1120*1930mm |
| Packing size | 1380*1320*2130mm |
|
|
|
| |
